UGC DOR5968722
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$261.00 CAD - $261.00 CAD
$261.00 CAD
$261.00 CAD - $261.00 CAD
$261.00 CAD

Vendu en lots de : 1

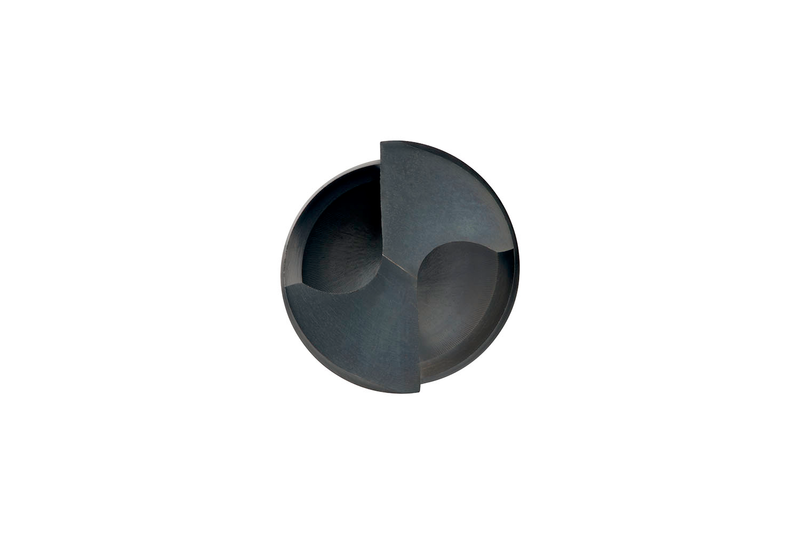

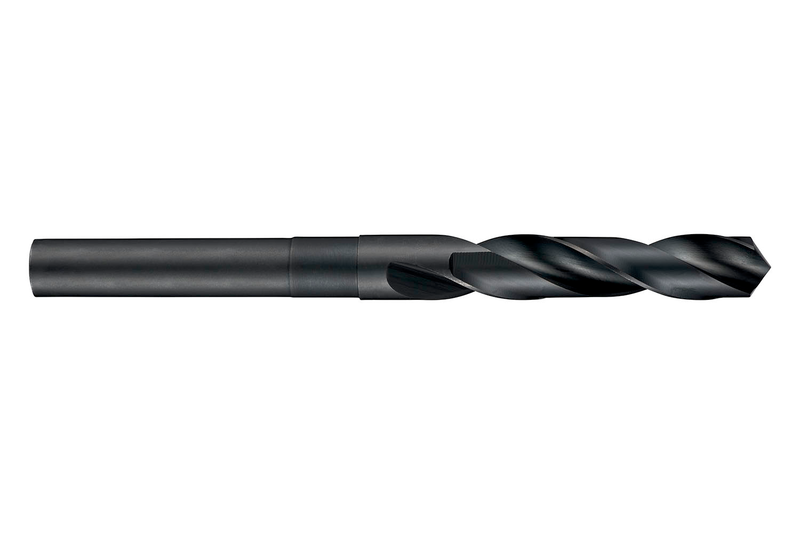

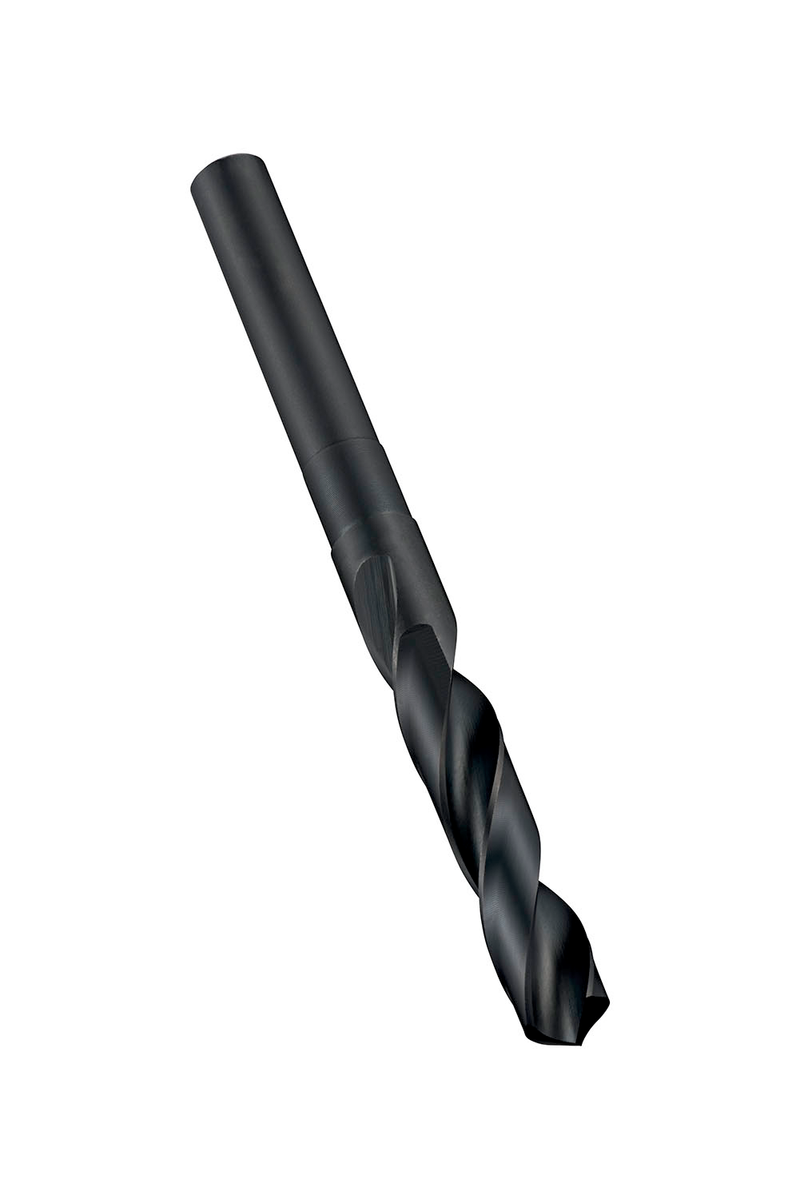

Foret de longueur standard avec queue cylindrique réduite 1/2", diamètre 19,5 mm avec une longueur totale de 158 mm et une longueur de coupe de 81 mm selon la norme DORMER avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17019.5
GradeTrempé à la vapeur
Product Number5968722
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.7677"
Cutting Diameter — mm (DC)19.5 mm
Overall Length — in (OAL)6.2205"
Overall Length — mm (OAL)158.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30332
EAN7320760030332
File Type Download
A17019.5 — 3D Model STP Download
A17019.5 — Line Drawing PDF Download
