UGC DOR5968725
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.43 CAD - $47.43 CAD
$47.43 CAD
$47.43 CAD - $47.43 CAD
$47.43 CAD

Vendu en lots de : 1

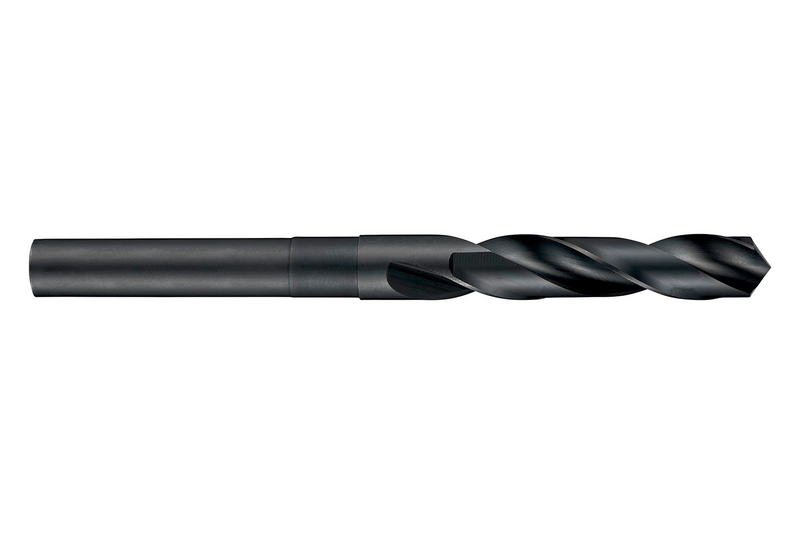

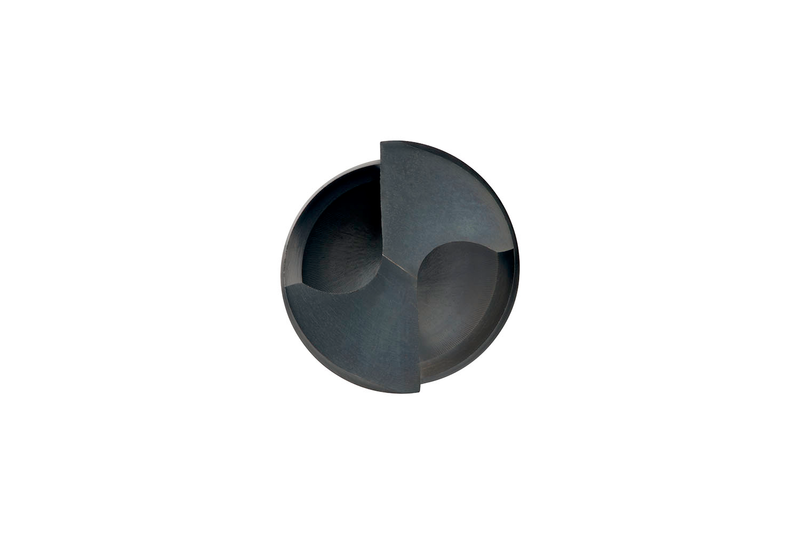

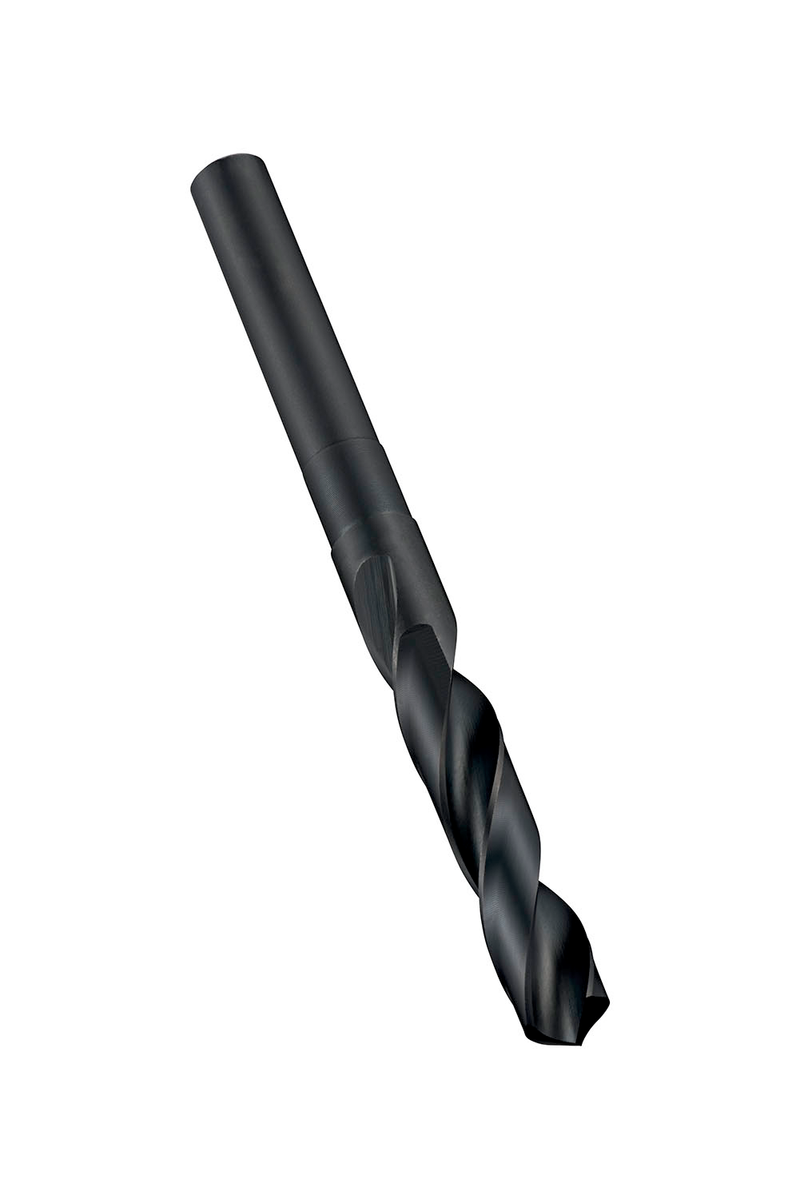

Foret de longueur standard à queue cylindrique réduite de 1/2", diamètre 0,5938" (19/32) avec une longueur totale de 6" et une longueur de goujure de 3,1/8" selon la norme DORMER avec un angle de pointe de 118°, en acier rapide avec finition traitée vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17019/32
GradeTrempé vapeur
Product Number5968725
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.5938"
Cutting Diameter — mm (DC)15.08 mm
Cutting Diameter — Fractional19/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.125"
Flute Length — mm (LCF)79.4 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30349
EAN7320760030349
File Type Download
A17019/32 — 3D Model STP Download
A17019/32 — Line Drawing PDF Download
