UGC DOR5968745
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$184.66 CAD - $184.66 CAD
$184.66 CAD
$184.66 CAD - $184.66 CAD
$184.66 CAD

Vendu en lots de : 1

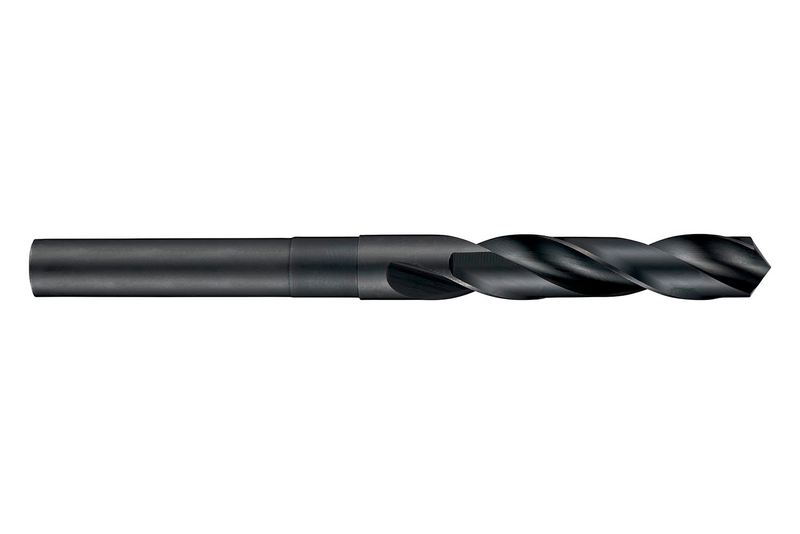

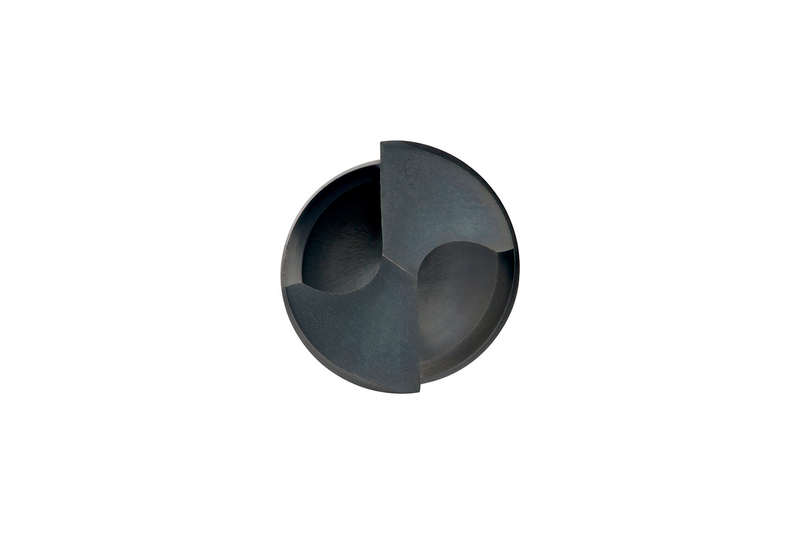

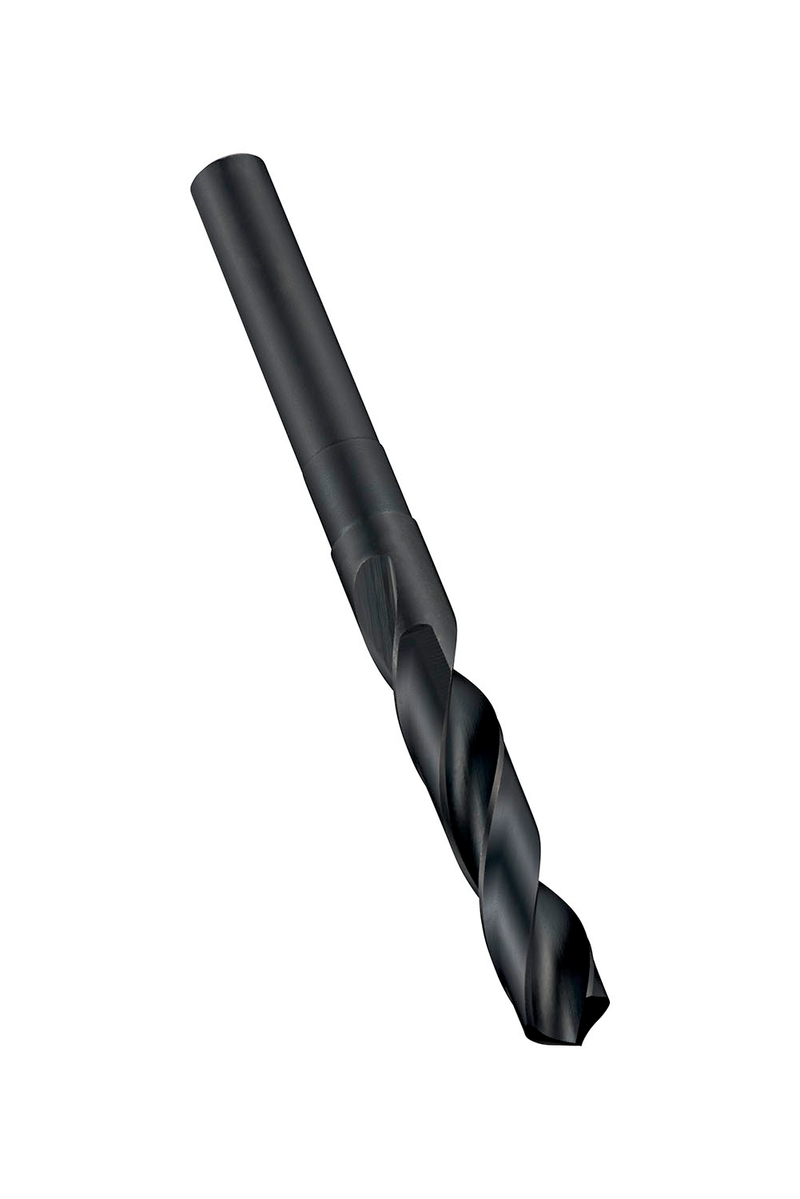

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 22 mm avec une longueur totale de 158 mm et une longueur de goujure de 82 mm selon la norme DORMER avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17022.0
GradeTrempé à la vapeur
Product Number5968745
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.8661"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)6.2205"
Overall Length — mm (OAL)158.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30387
EAN7320760030387
File Type Download
A17022.0 — 3D Model STP Download
A17022.0 — Line Drawing PDF Download
