UGC DOR5968766
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$289.14 CAD - $289.14 CAD
$289.14 CAD
$289.14 CAD - $289.14 CAD
$289.14 CAD

Vendu en lots de : 1

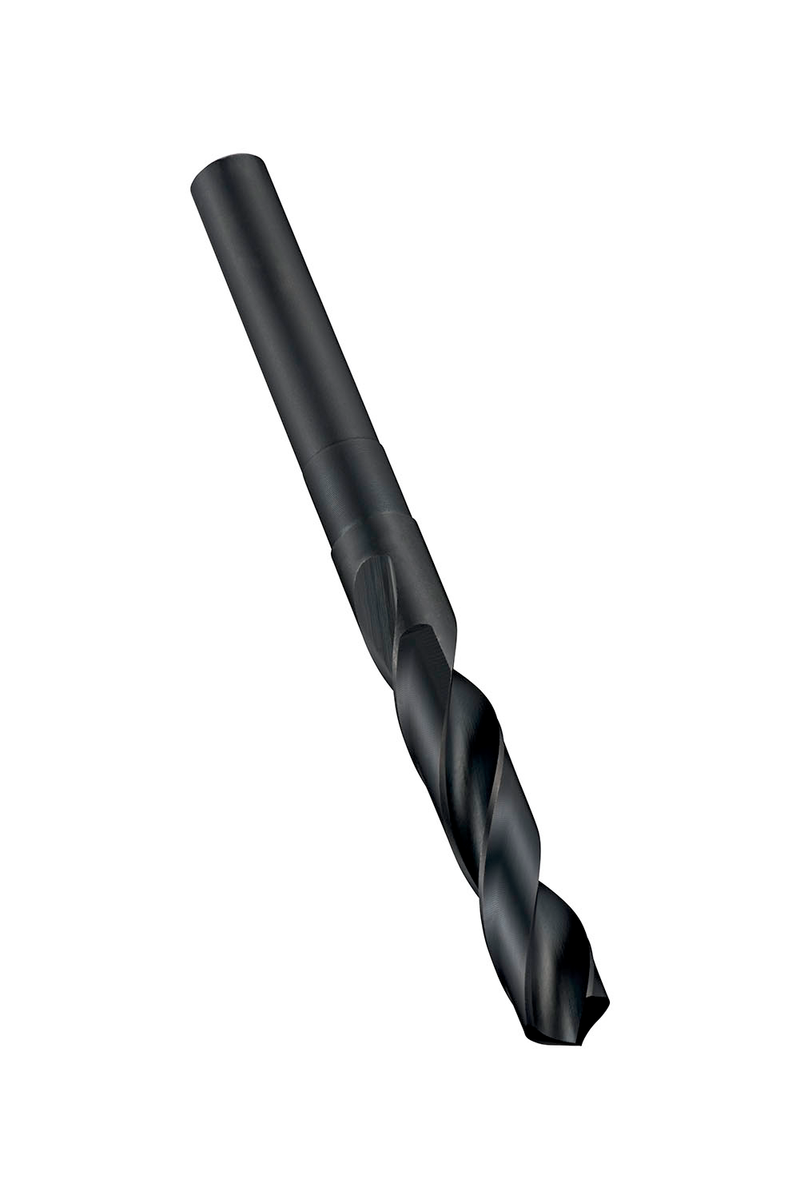

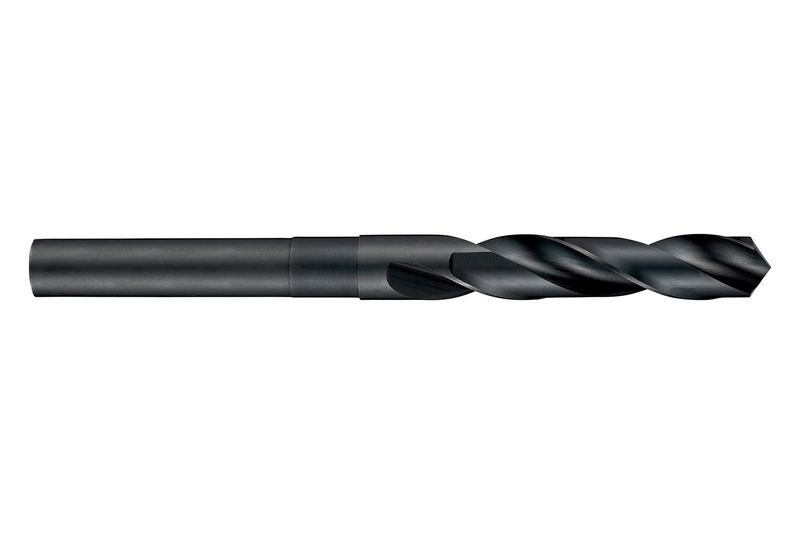

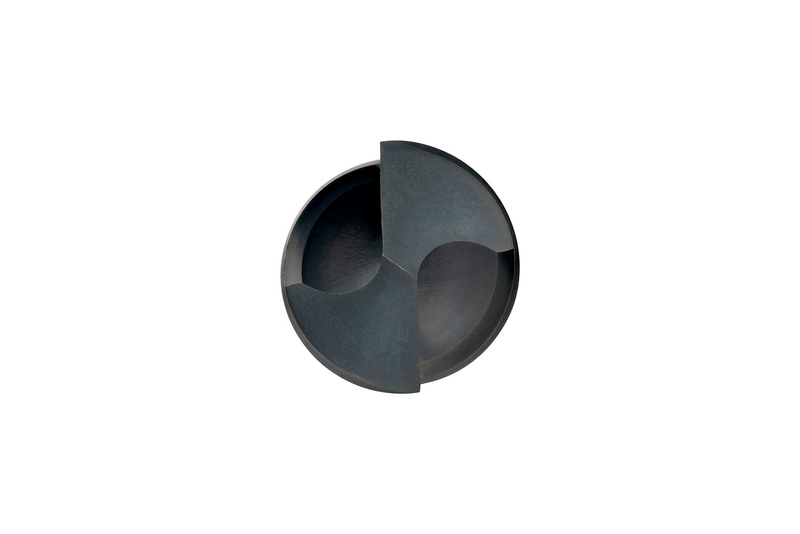

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 25 mm avec une longueur totale de 159 mm et une longueur de goujure de 83 mm selon la norme DORMER avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17025.0
GradeTrempé à la vapeur
Product Number5968766
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)6.2598"
Overall Length — mm (OAL)159.0 mm
Flute Length — in (LCF)3.2677"
Flute Length — mm (LCF)83.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30424
EAN7320760030424
File Type Download
A17025.0 — 3D Model STP Download
A17025.0 — Line Drawing PDF Download
