UGC DOR5968771
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.89 CAD - $64.89 CAD
$64.89 CAD
$64.89 CAD - $64.89 CAD
$64.89 CAD

Vendu en lots de : 1

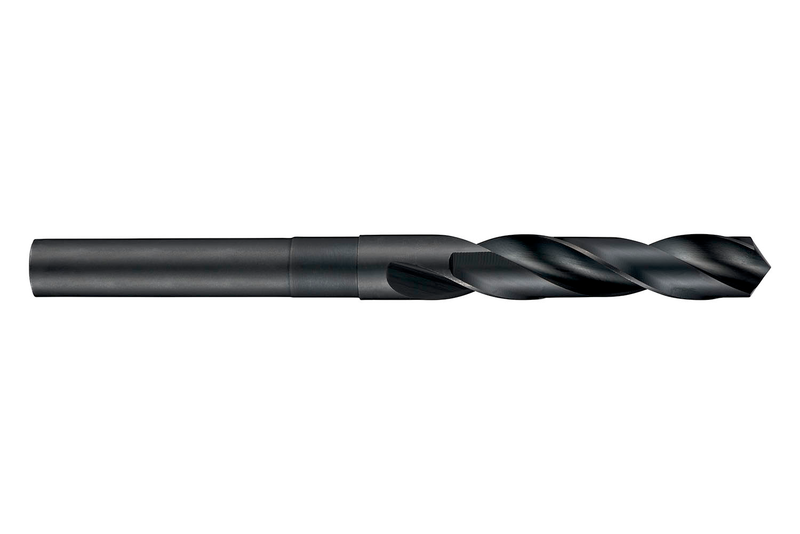

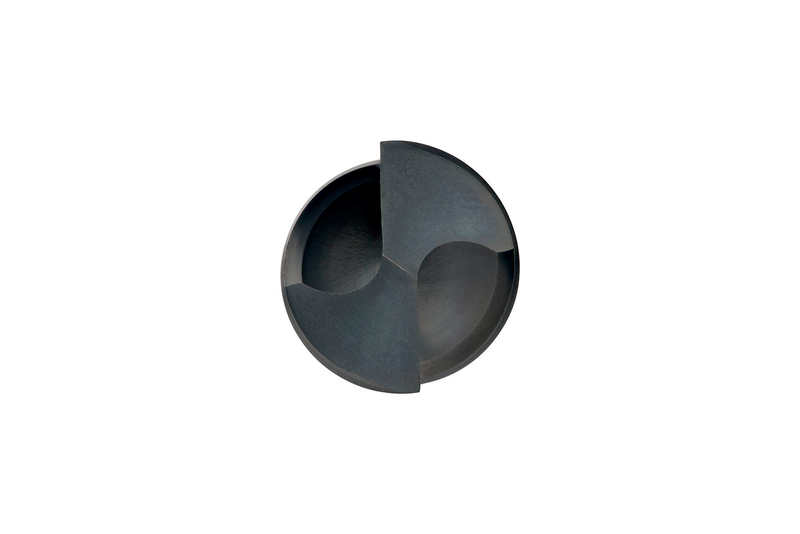

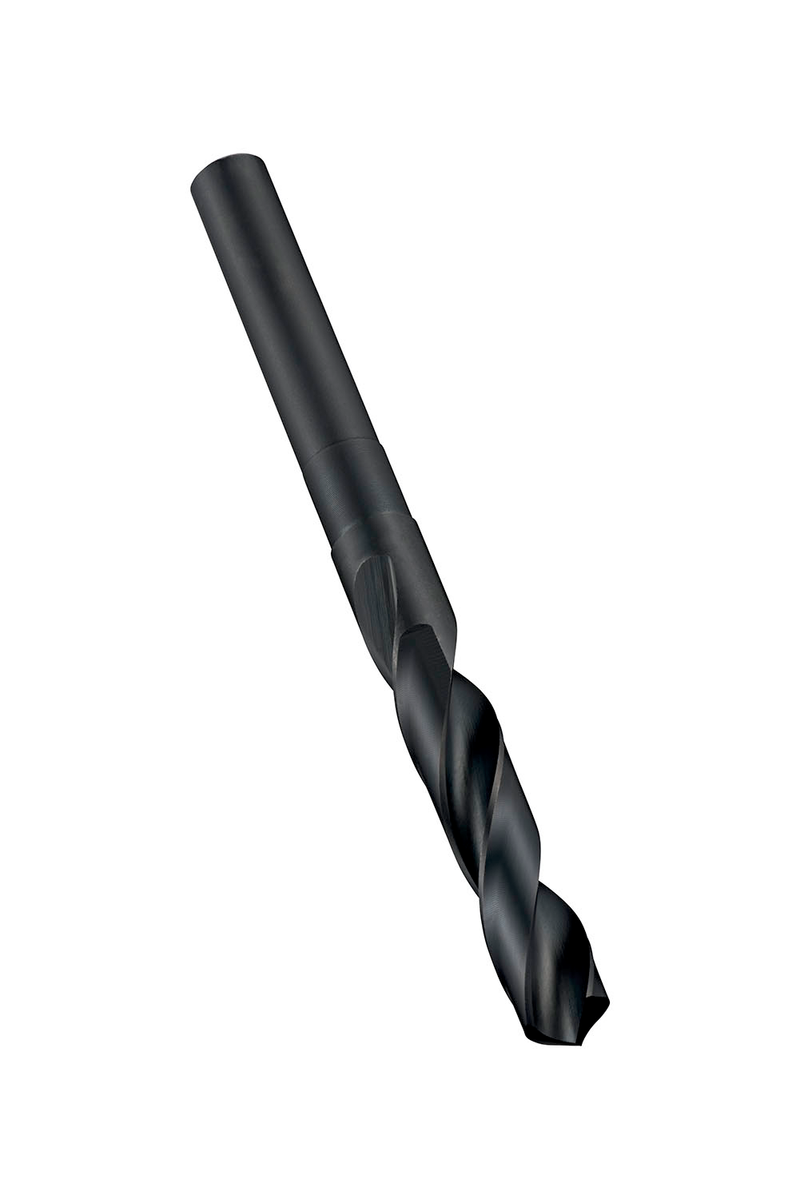

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 0,7813" (25/32) avec une longueur totale de 6" et une longueur d'hélice de 3" selon la norme DORMER avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17025/32
GradeTrempé à la vapeur
Product Number5968771
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.7813"
Cutting Diameter — mm (DC)19.84 mm
Cutting Diameter — Fractional25/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30431
EAN7320760030431
File Type Download
A17025/32 — 3D Model STP Download
A17025/32 — Line Drawing PDF Download
