A17011/16
A17011/16
A17011/16
A17011/16

A17011/16

UGC DOR5968819
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.34 CAD - $55.34 CAD
$55.34 CAD
$55.34 CAD - $55.34 CAD
$55.34 CAD

Vendu en lots de : 1

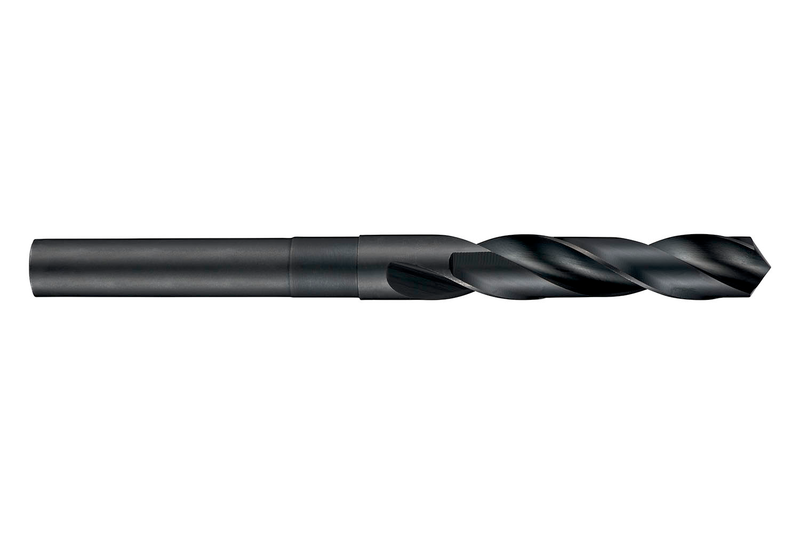

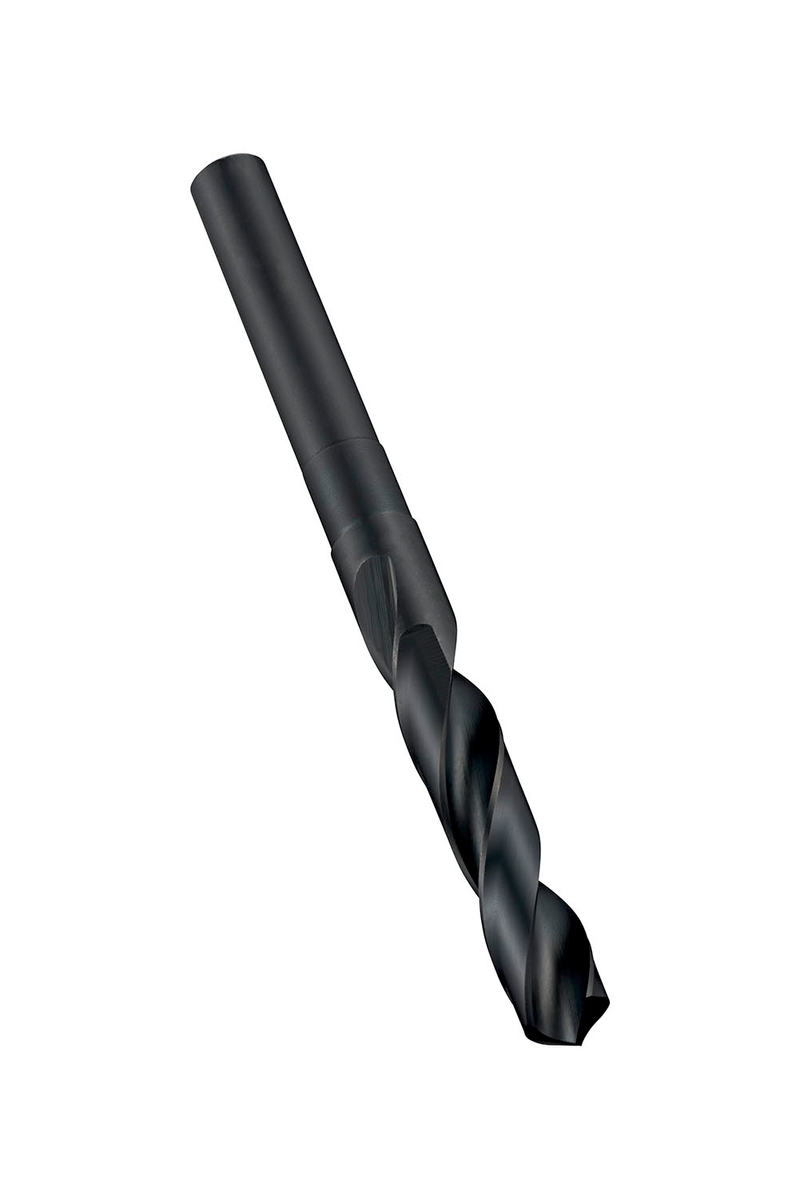

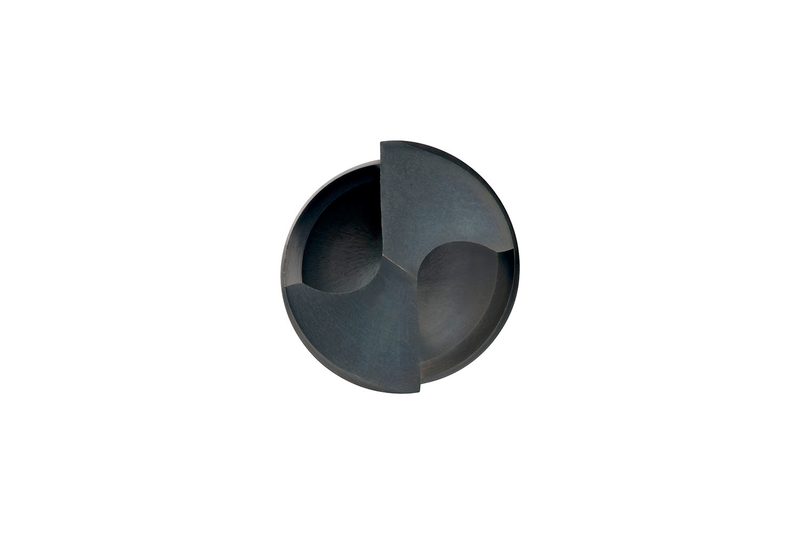

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 0,6875" (11/16) avec une longueur totale de 6" et une longueur de goujure de 3,1/8" selon la norme DORMER avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A17011/16
GradeTrempé à la vapeur
Product Number5968819
Product FamilyA170
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.125"
Flute Length — mm (LCF)79.4 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number30141
EAN7320760030141
File Type Download
A17011/16 — 3D Model STP Download
A17011/16 — Line Drawing PDF Download
