PPH-16/02-QC16-092HSCW
PPH-16/02-QC16-092HSCW
PPH-16/02-QC16-092HSCW

PPH-16/02-QC16-092HSCW

UGC DOR7024750
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,018.00 CAD - $1,018.00 CAD
$1,018.00 CAD
$1,018.00 CAD - $1,018.00 CAD
$1,018.00 CAD

Vendu en lots de : 1

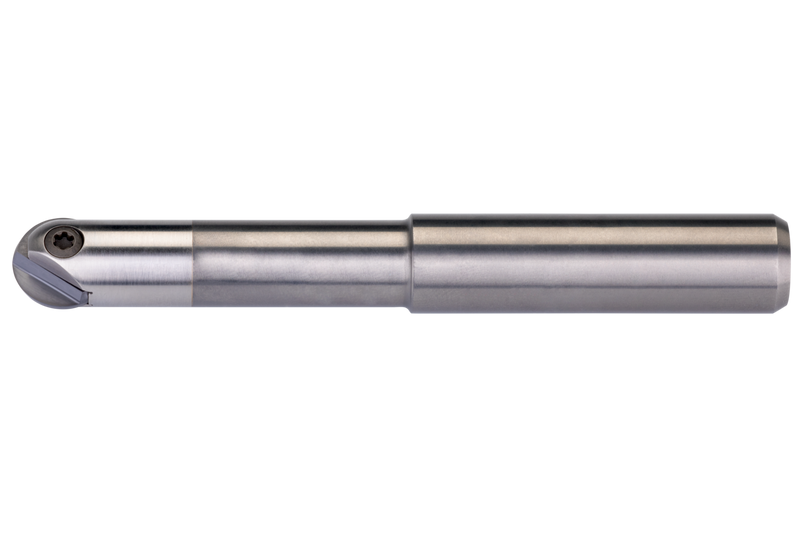

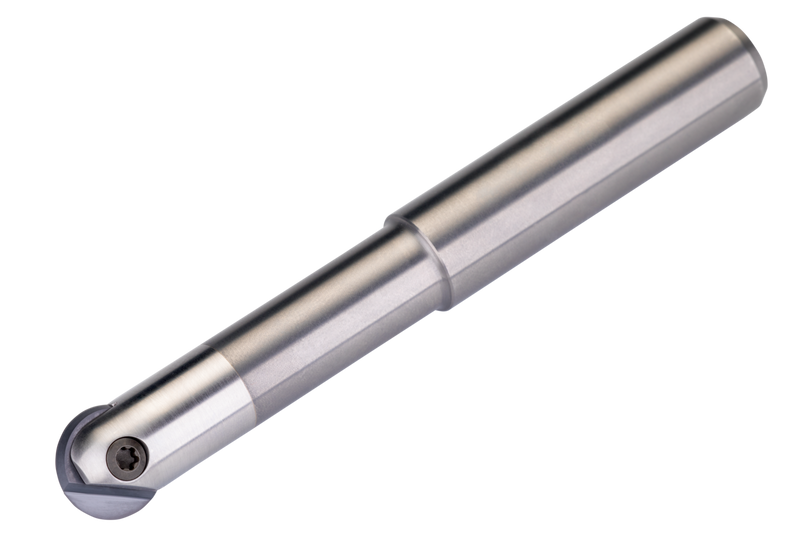

Fraise à copier qui utilise 1 plaquette simple face PPH 16, PPHE 16, PPHT 16 ou PPHF 16, diamètre de coupe 16mm avec queue parallèle en carbure de 16mm selon DIN 1835A, longueur totale 92mm pour le fraisage en copie avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-16/02-QC16-092HSCW
Product Number7024750
Product FamilyK2-PPH

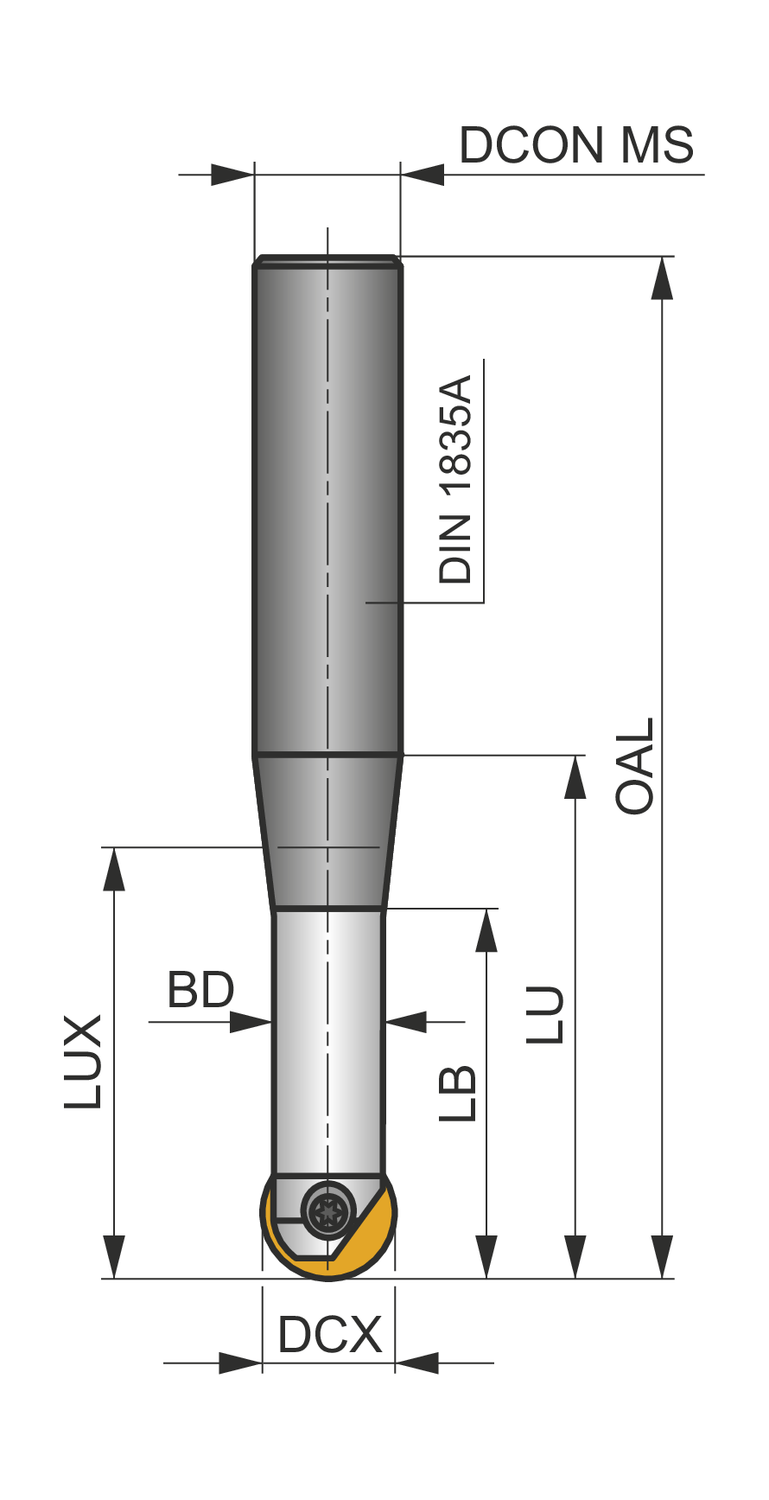

Dimensions
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024750
EAN3603603104235
File Type Download
PPH-16/02-QC16-092HSCW — 3D Model STP Download
PPH-16/02-QC16-092HSCW — 2D Model DXF Download
PPH-16/02-QC16-092HSCW — Line Drawing PDF Download
