16A2R020A14-SWN04C-C
16A2R020A14-SWN04C-C
16A2R020A14-SWN04C-C

16A2R020A14-SWN04C-C

UGC DOR8238749
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$328.00 CAD - $328.00 CAD
$328.00 CAD
$328.00 CAD - $328.00 CAD
$328.00 CAD

Vendu en lots de : 1

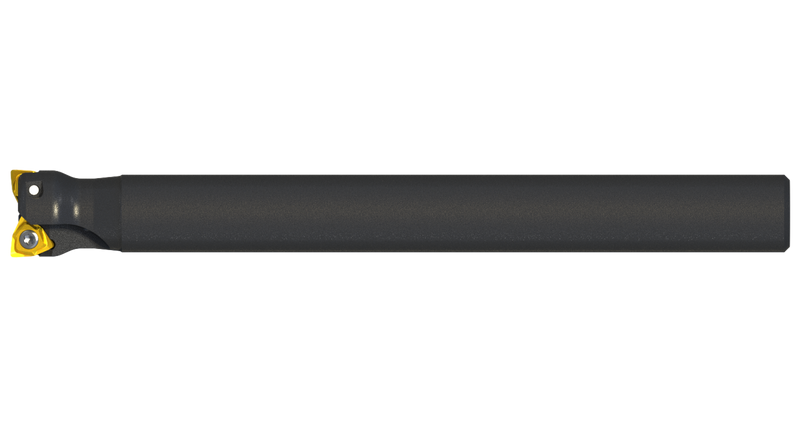

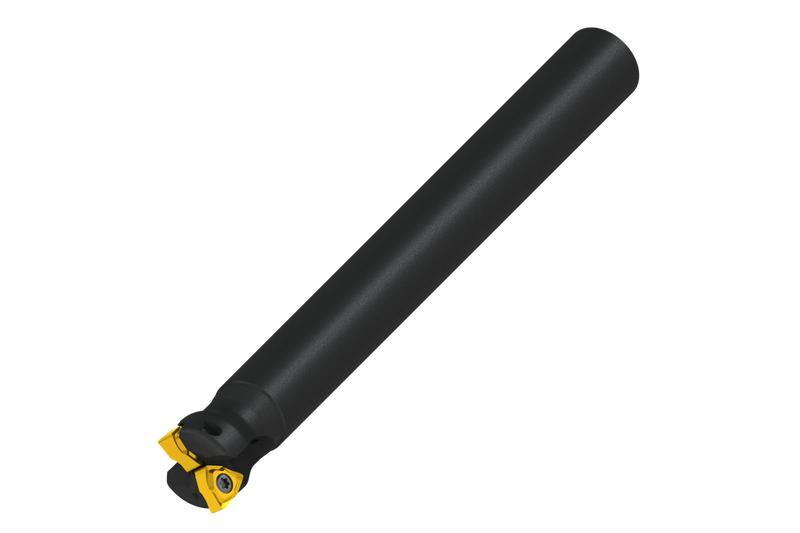

Fraise à copier double effet avec géométrie double négative qui utilise 2 plaquettes double face WNHX0403.., diamètre de coupe 16 mm avec un angle d'attaque de 90° et une queue cylindrique de 14 mm selon la norme DIN 1835A, longueur utile de 140 mm et arrosage interne pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée, le fraisage de copiage et le fraisage en rampe avec une profondeur de coupe maximale de 0,5 (2,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A2R020A14-SWN04C-C
Product Number8238749
Product FamilySWN04C
Insert Geometry
Depth of Cut Max — mm (APMX)0.5 mm

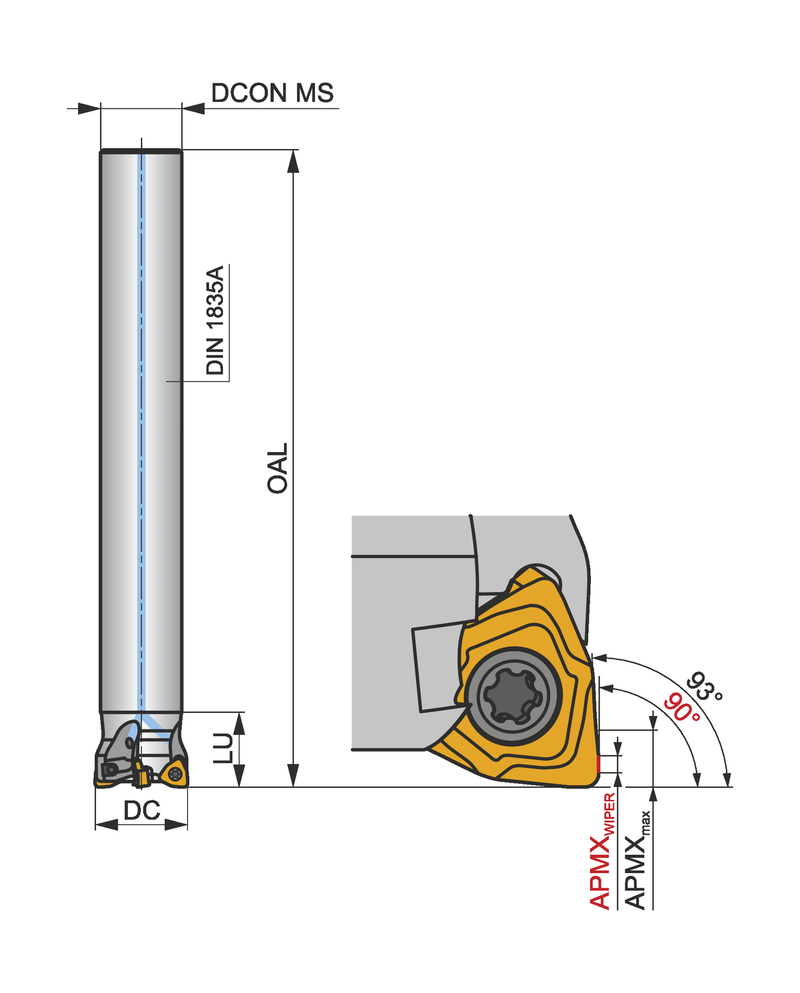

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — in (LU)0.787"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.551"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSWN04C
ShankQueue cylindrique DIN 1835A
Through Coolant Yes
Reference Numbers
EDP Number8238749
EAN3603604012287
File Type Download
16A2R020A14-SWN04C-C — 3D Model STP Download
16A2R020A14-SWN04C-C — 2D Model DXF Download
16A2R020A14-SWN04C-C — Line Drawing PDF Download
