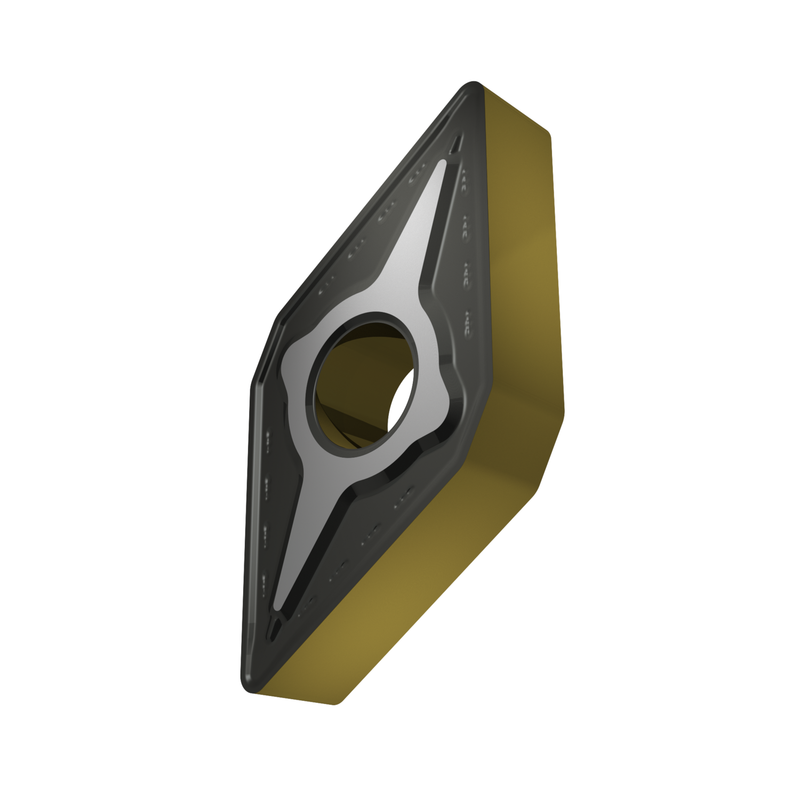

DNMG 432-RM:T9425
DNMG dimension drawing
DNMG 432-RM:T9425
DNMG dimension drawing

DNMG 432-RM:T9425

UGC DOR8985634
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.69 CAD - $21.69 CAD
$21.69 CAD
$21.69 CAD - $21.69 CAD
$21.69 CAD

Vendu en lots de : 10
Plaquette double face négative, D – rhombe 55°, taille 15 avec un rayon de bec de 0,8 mm. Combinaison de brise-copeaux robuste RM, le premier choix pour l'ébauche des aciers. Elle présente un angle de coupe positif et une large facette de dépouille stable. Elle convient également aux aciers inoxydables, aux fontes et, sous certaines conditions, aux superalliages. Substrat à gradient fonctionnel T9425 revêtu MT-CVD, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : P - Acier et acier moulé, M - Acier inoxydable, K - Fonte et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 432-RM:T9425
Product Name (ISO)DNMG 150408E-RM:T9425
GradeT9425
Chipbreaker (CBMD)RM
Product Number8985634
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle interne de 55° pour rhombe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8985634
EAN3603604770927
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
