RC4P9/32
RC4P9/32
RC4P9/32

RC4P9/32

UGC DOR8904209
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.93 CAD - $212.93 CAD
$212.93 CAD
$212.93 CAD - $212.93 CAD
$212.93 CAD

Vendu en lots de : 1

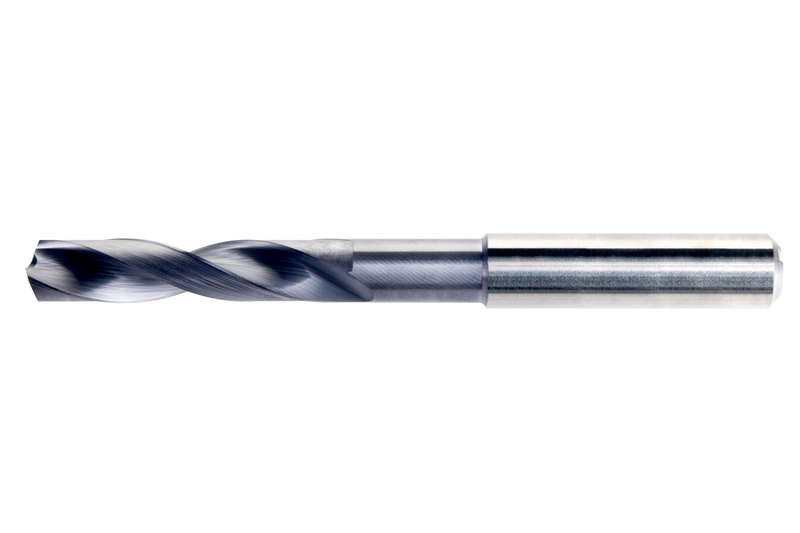

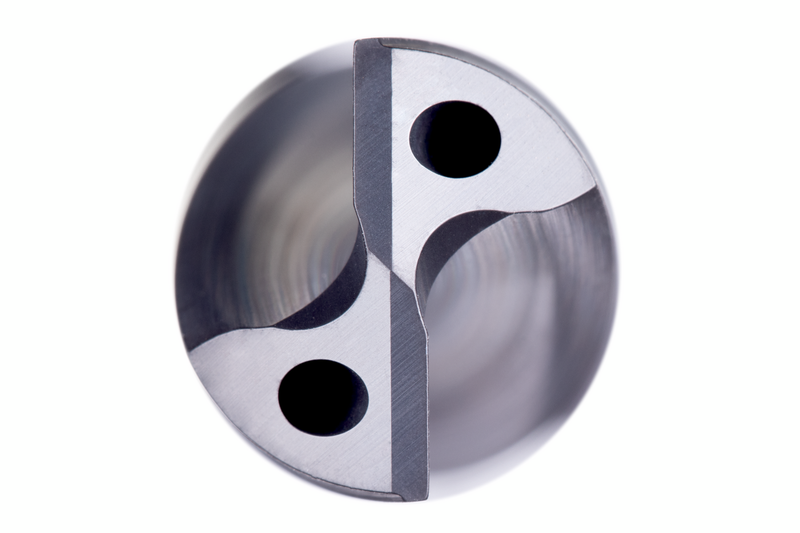

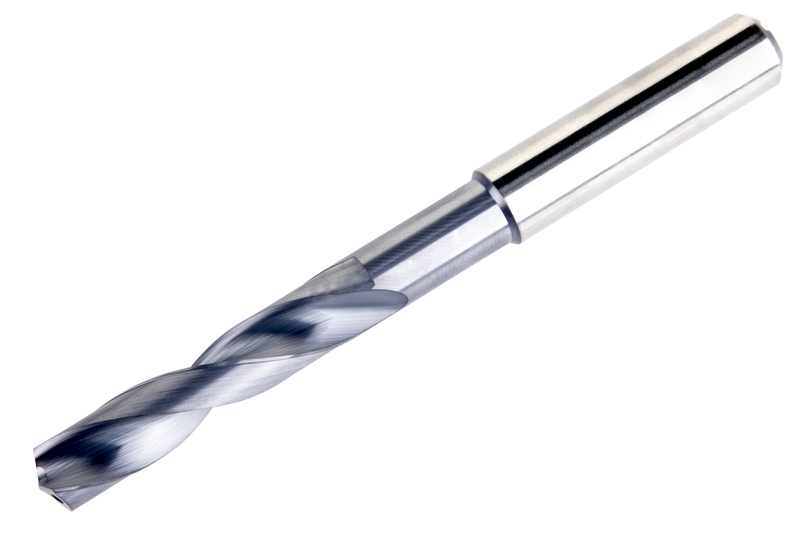

Diamètre de coupe 9/32 pouces, foret pilote spécialement conçu pour un positionnement précis des trous lors de l'utilisation de forets à trous profonds Force 16xD et 20xD. Il présente un angle de pointe de 150° et une tolérance de perçage légèrement plus grande p7 pour un perçage précis des trous pilotes jusqu'à 2xD. DCON MS 8 mm, LCF 41 mm et OAL 91 mm. Les canaux de refroidissement internes assurent une efficacité de refroidissement améliorée. Revêtement multicouche TiAlN pour minimiser le frottement, adapté à divers matériaux tels que l'acier, l'acier inoxydable, la fonte et les métaux non ferreux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4P9/32
Product Number8904209
Product FamilyRC4P
Dimensions
Cutting Diameter — in (DC)0.281"
Cutting Diameter — mm (DC)7.14 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)3.583"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)1.614"
Flute Length — mm (LCF)41.0 mm
Functional Length — in (LF)1.142"
Functional Length — mm (LF)29.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904209
EAN3603607353189
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4P9/32 — 3D Model STP Download
RC4P9/32 — 2D Model DXF Download
RC4P9/32 — Line Drawing PDF Download
