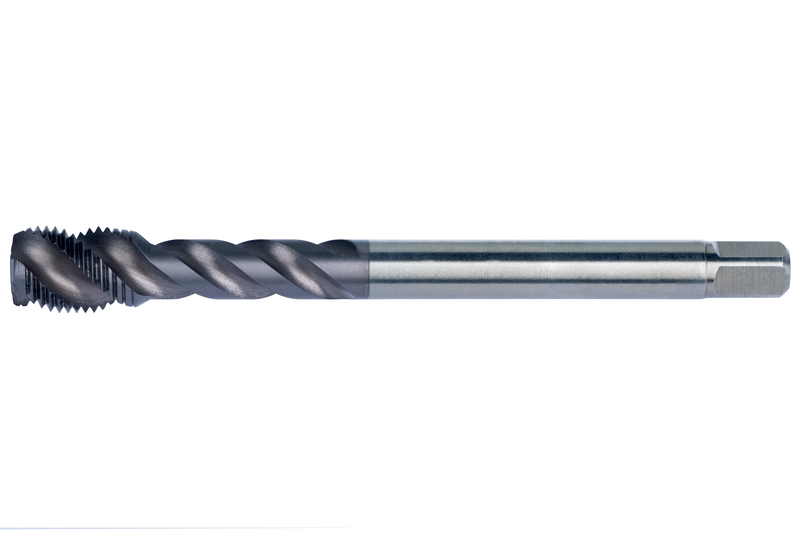

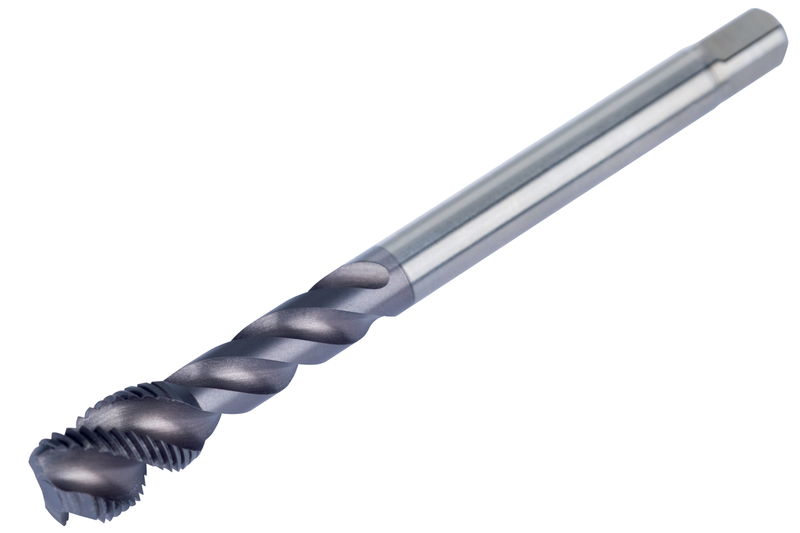

E398M20X1,5
E398M20X1,5
E398M20X1,5

E398M20X1,5

UGC DOR8464213
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.26 CAD - $91.26 CAD
$91.26 CAD
$91.26 CAD - $91.26 CAD
$91.26 CAD

Vendu en lots de : 1

Diamètre de filetage MF20 mm x 1,5 mm, avec une classe de tolérance de filetage 93707 et une profondeur de filetage maximale de 50 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M20X1.5
GradeTiCN
Product Number8464213
Product FamilyE398(MF)
Dimensions
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number8464213
EAN3603607095546
File Type Download

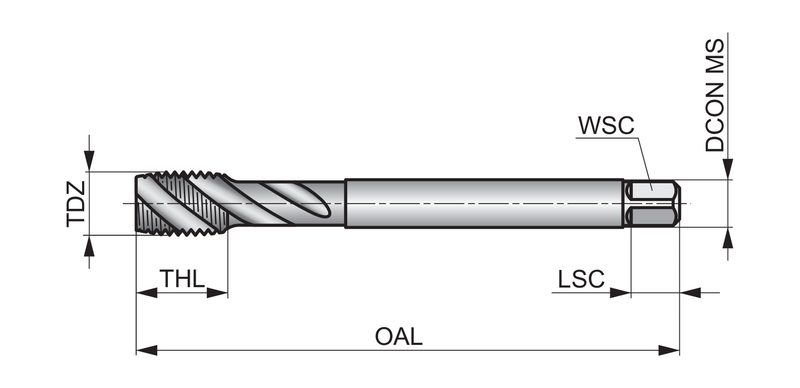

E398M20X1,5 — Line Drawing PDF Download
