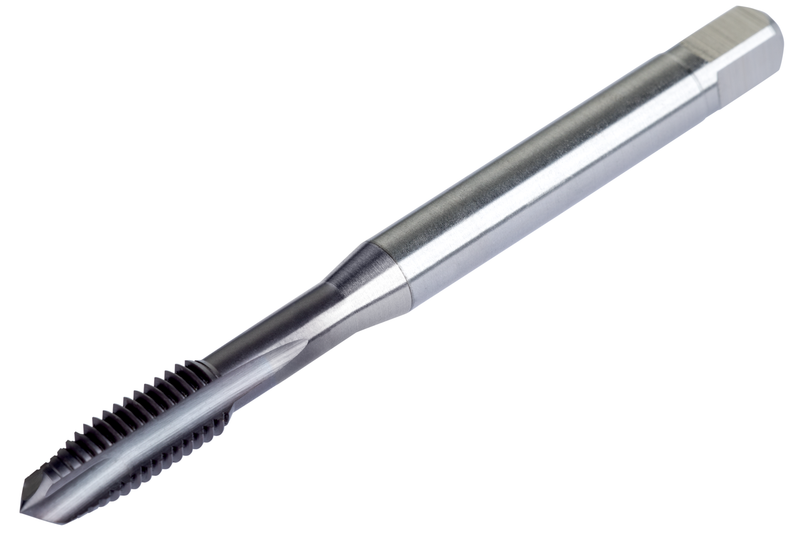

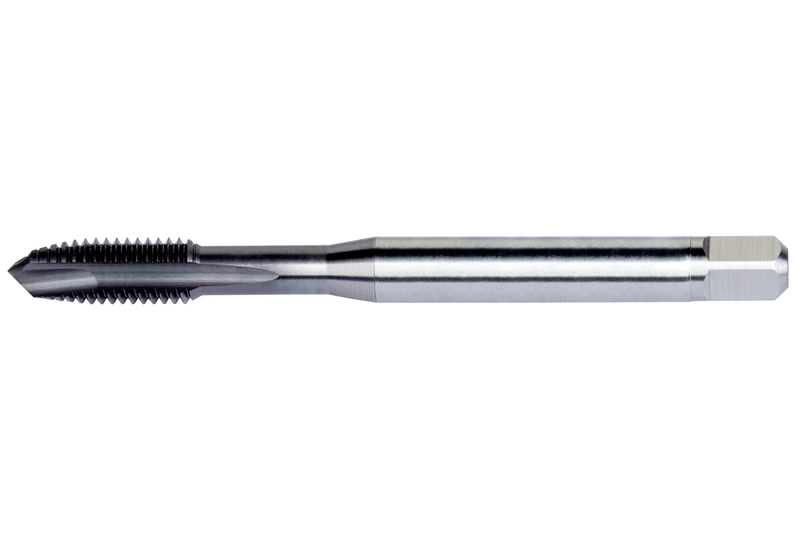

E697UNC8X32
E697UNC8X32
E697UNC8X32

E697UNC8X32

UGC DOR8464266
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.60 CAD - $19.60 CAD
$19.60 CAD
$19.60 CAD - $19.60 CAD
$19.60 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,315 pouce - 32 TPI, avec une classe de tolérance de filetage de 93707, des limites de diamètre de pas H3 et une profondeur de filetage maximale de 0,7875 pouces.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNC8X32
GradeTiCN
Product Number8464266
Product FamilyE697(NU)
Dimensions
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)62.99 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.827"
Usable Length — mm (LU)21.01 mm
Connection Dia. — in (DCON)0.168"
Connection Dia. — mm (DCON)4.27 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)UNC - Pas grossier unifié
Threads per Inch (TPI)32.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464266
EAN3603607096079
File Type Download
E697UNC8X32 — Line Drawing PDF Download
