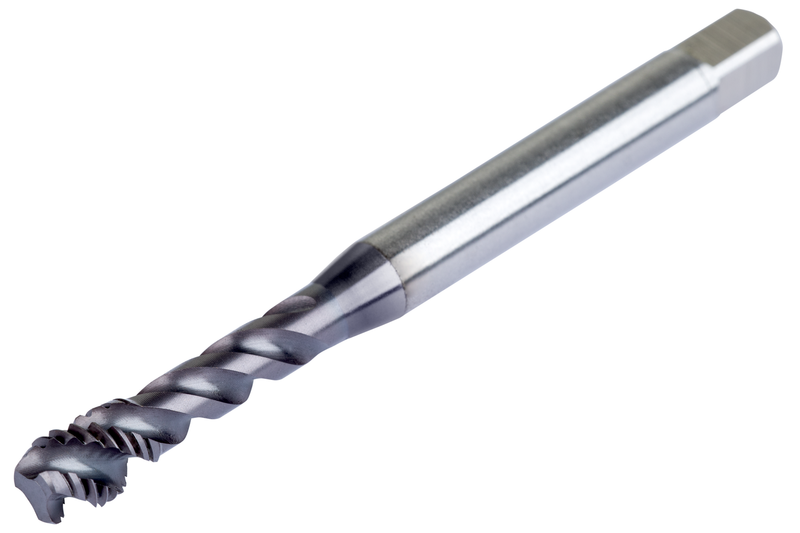

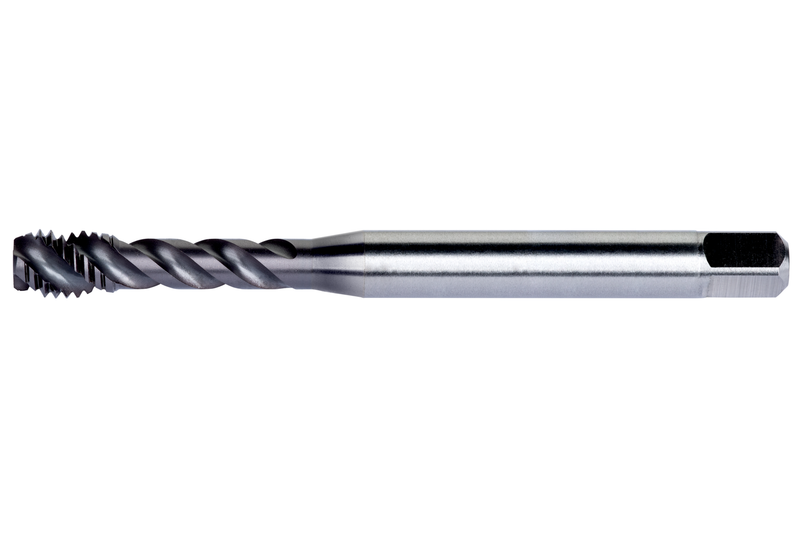

E698UNC4X40
E698UNC4X40
E698UNC4X40

E698UNC4X40

UGC DOR8464276
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 1

Filetage UNC 0,157 pouce - 40 TPI, avec classe de tolérance de filetage 93707, limites de diamètre sur flancs H2 et profondeur de filetage maximale de 0,3925 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698UNC4X40
GradeTiCN
Product Number8464276
Product FamilyE698(NC)
Dimensions
Overall Length — in (OAL)2.205"
Overall Length — mm (OAL)56.01 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.709"
Usable Length — mm (LU)18.01 mm
Connection Dia. — in (DCON)0.141"
Connection Dia. — mm (DCON)3.58 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)CUN - Coarse unifié
Threads per Inch (TPI)40.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464276
EAN3603607096178
File Type Download
E698UNC4X40 — Line Drawing PDF Download
