16N2R027B16-SSD09-A
16N2R027B16-SSD09-A
16N2R027B16-SSD09-A

16N2R027B16-SSD09-A

UGC DOR6757763
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$374.00 CAD - $374.00 CAD
$374.00 CAD
$374.00 CAD - $374.00 CAD
$374.00 CAD

Vendu en lots de : 1

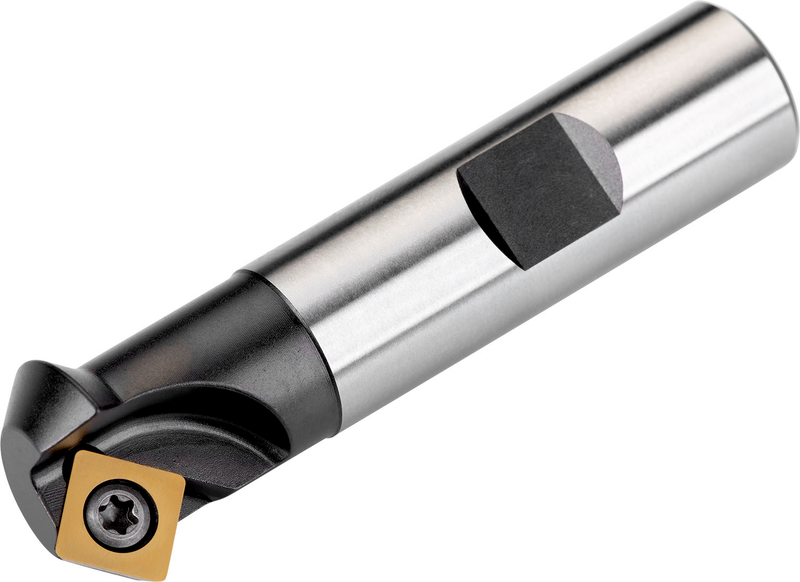

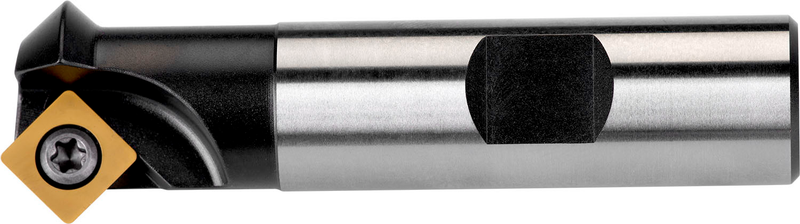

Fraise à chanfreiner avec une géométrie doublement négative qui utilise 2 plaquettes simple-face SDEW 0903.. ou SDEX 0903.., diamètre de coupe de 16 à 28 mm maximum avec un angle d'attaque de 45° et une queue Weldon de 16 mm selon DIN 1835B, longueur totale de 75 mm pour le chanfreinage avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16N2R027B16-SSD09-A
Product Number6757763
Product FamilySSD09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

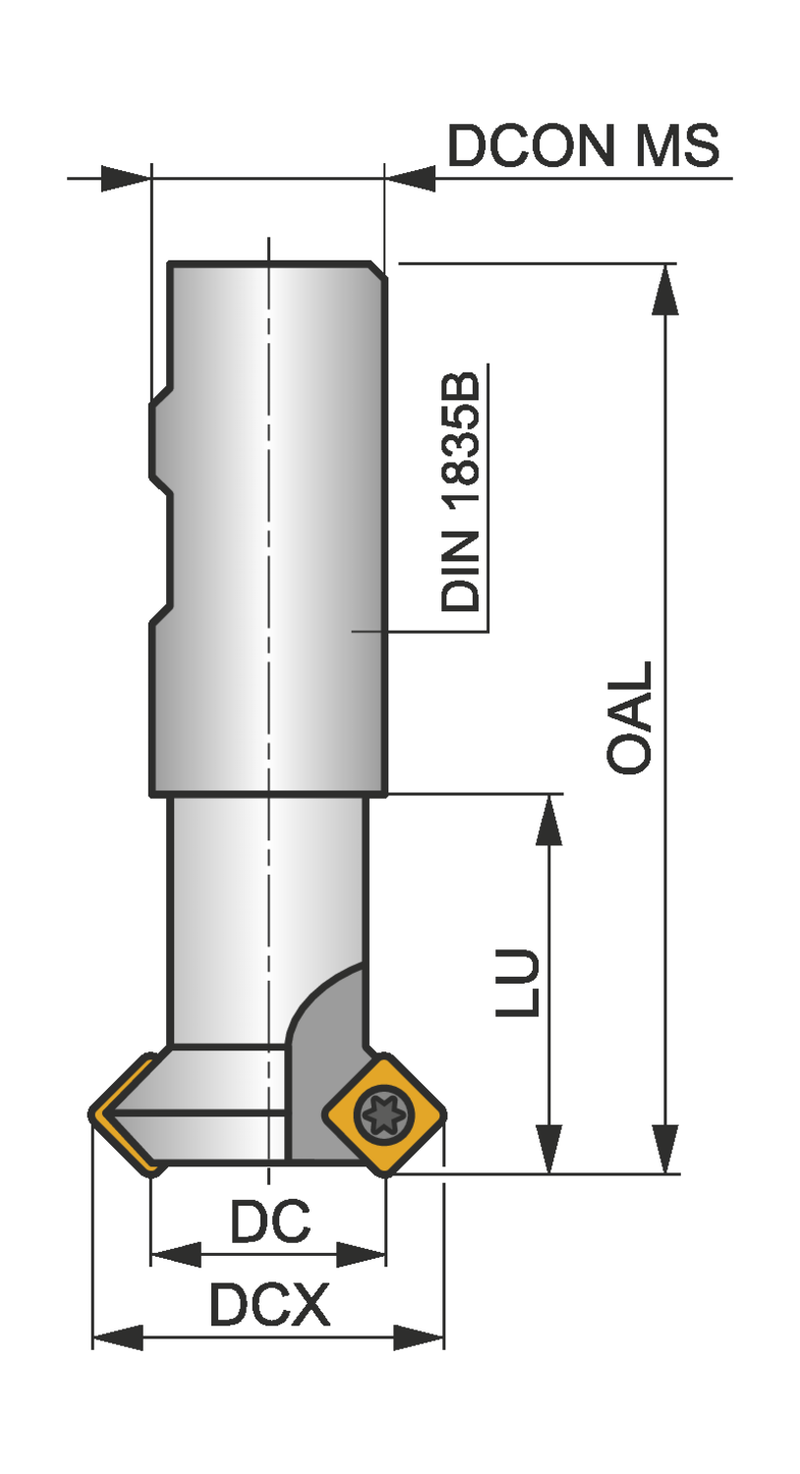

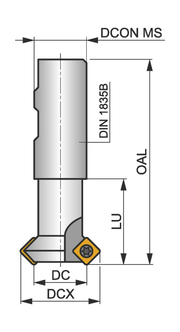

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.953"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSSD09
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Reference Numbers
EDP Number6757763
EAN3603602931191
File Type Download
16N2R027B16-SSD09-A — 3D Model STP Download
16N2R027B16-SSD09-A — Line Drawing PDF Download
