25N3R042A25-SSD09
25N3R042A25-SSD09
25N3R042A25-SSD09

25N3R042A25-SSD09

UGC DOR6757772
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$461.00 CAD - $461.00 CAD
$461.00 CAD
$461.00 CAD - $461.00 CAD
$461.00 CAD

Vendu en lots de : 1

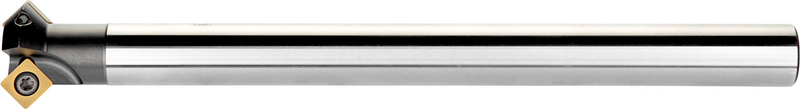

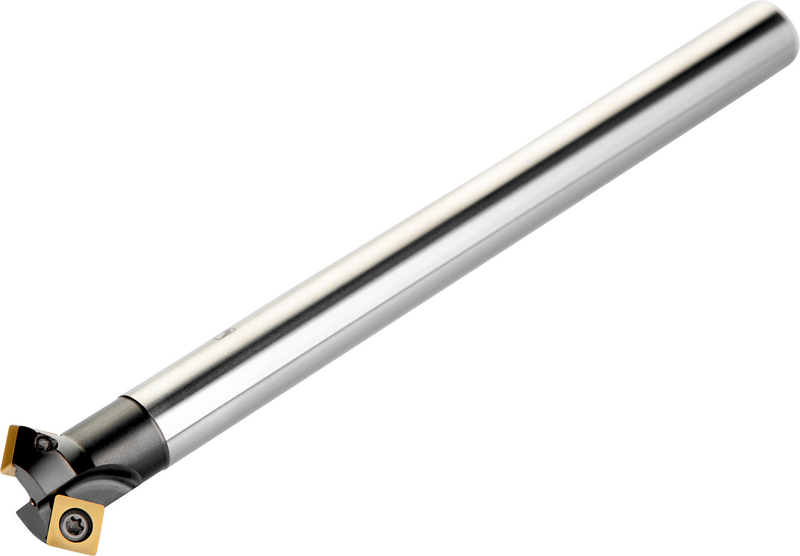

Fraise à chanfreiner avec une géométrie double négative qui utilise 3 plaquettes unilatérales SDEW 0903.. ou SDEX 0903.., d'un diamètre de coupe de 25 à 37 mm maximum avec un angle d'attaque de 45° et une queue cylindrique de 25 mm selon DIN 1835A, d'une longueur totale de 200 mm pour le chanfreinage avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25N3R042A25-SSD09
Product Number6757772
Product FamilySSD09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

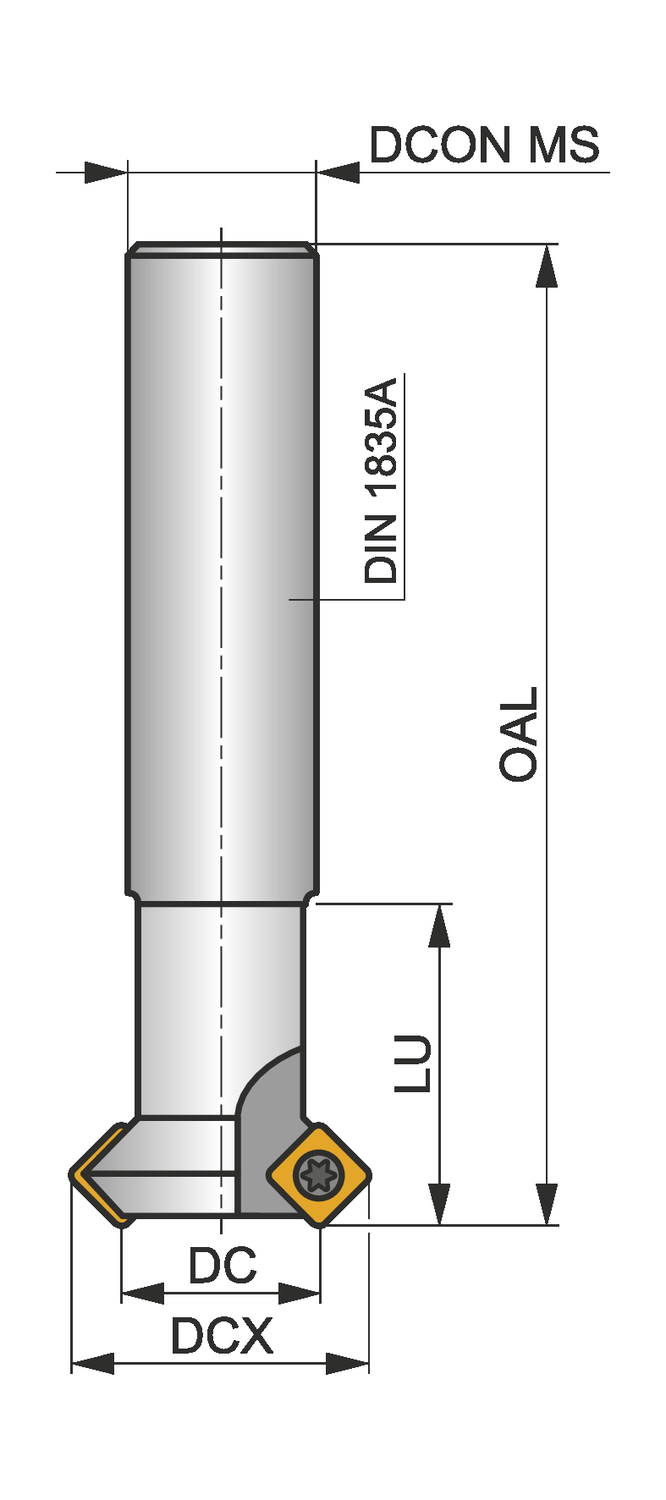

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSD09
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6757772
EAN3603602931283
File Type Download
25N3R042A25-SSD09 — 3D Model STP Download
25N3R042A25-SSD09 — 2D Model DXF Download
25N3R042A25-SSD09 — Line Drawing PDF Download
