32A4R042B32-SSO09-C
32A4R042B32-SSO09-C
32A4R042B32-SSO09-C

32A4R042B32-SSO09-C

UGC DOR6758360
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$718.00 CAD - $718.00 CAD
$718.00 CAD
$718.00 CAD - $718.00 CAD
$718.00 CAD

Vendu en lots de : 1

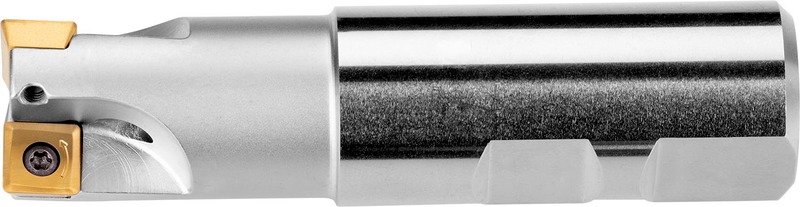

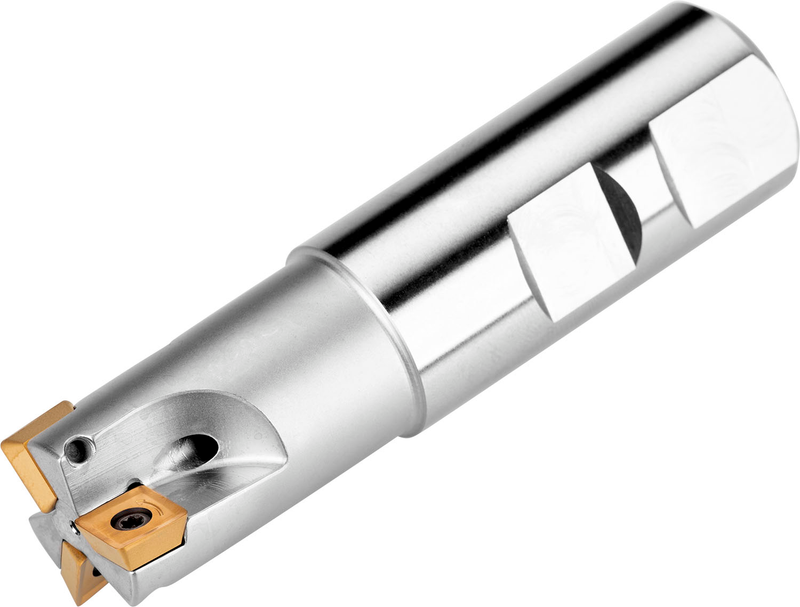

Fraise à épaulement à géométrie positive/négative qui utilise 4 plaquettes simple-face SOMT 09T3.., diamètre de coupe 32 mm avec un angle d'attaque de 90° et une queue Weldon de 32 mm selon DIN 1835B, longueur totale 102 mm, avec arrosage interne et pas différentiel pour le surfaçage-dressage peu profond, le rainurage peu profond et le fraisage en plongée avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A4R042B32-SSO09-C
Product Number6758360
Product FamilySSO09
Insert Geometry
Depth of Cut Max — mm (APMX)8.0 mm

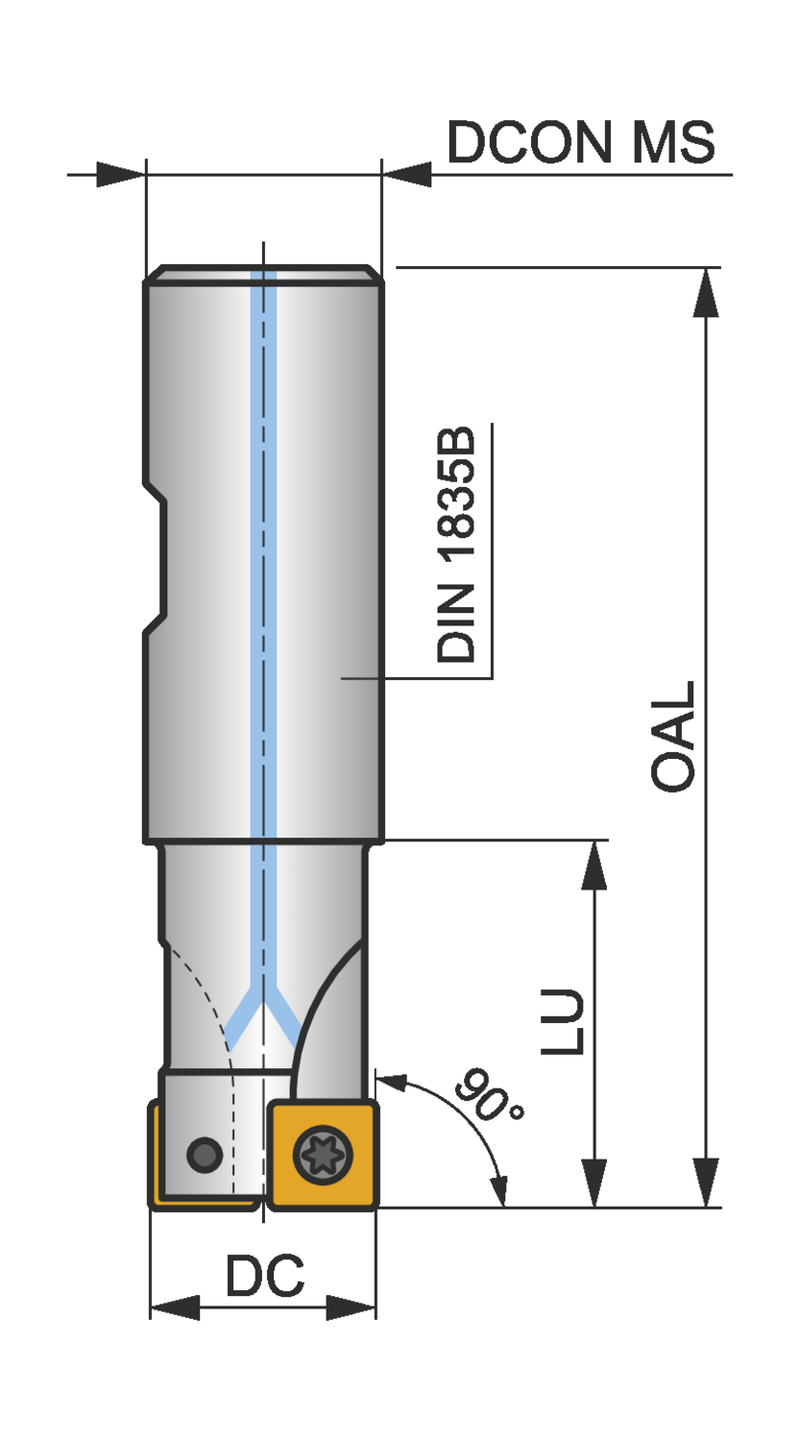

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.016"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSSO09
ShankQueue Weldon DIN 1835B
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758360
EAN3603602937063
File Type Download
32A4R042B32-SSO09-C — 3D Model STP Download
32A4R042B32-SSO09-C — 2D Model DXF Download
32A4R042B32-SSO09-C — Line Drawing PDF Download
