100N3R128W100-ISSD09
100N3R128W100-ISSD09
100N3R128W100-ISSD09

100N3R128W100-ISSD09

UGC DOR6789710
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$451.00 CAD - $451.00 CAD
$451.00 CAD
$451.00 CAD - $451.00 CAD
$451.00 CAD

Vendu en lots de : 1

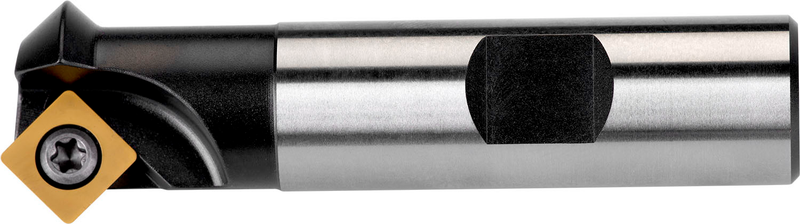

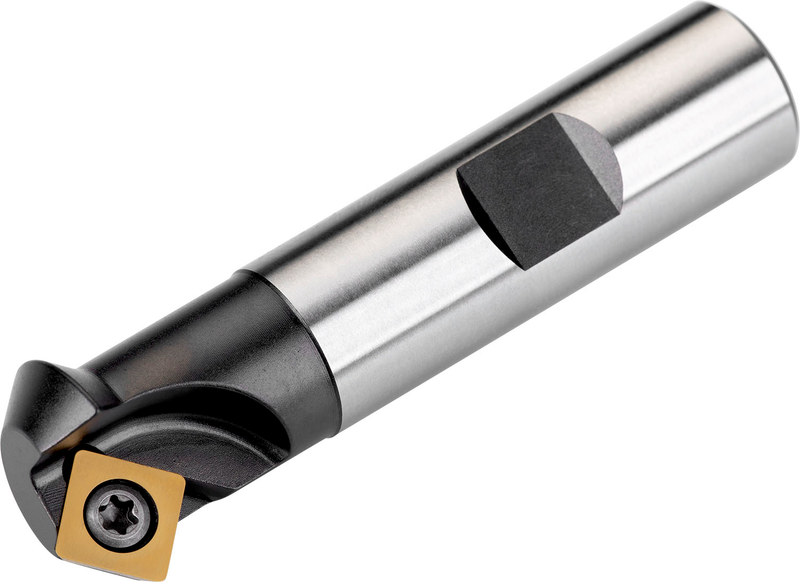

Fraise à chanfreiner à géométrie double négative utilisant 3 plaquettes unilatérales SDEW 0903.. ou SDEX 0903.., diamètre de coupe de 1 000 à 1 472'' maximum avec un angle d'attaque de 45° et une queue Weldon de 1 000'' selon DIN 1835B, longueur totale de 3 780'' pour le chanfreinage avec une profondeur de coupe maximale de 0,177''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100N3R128W100-ISSD09
Product Number6789710
Product FamilyISSD09

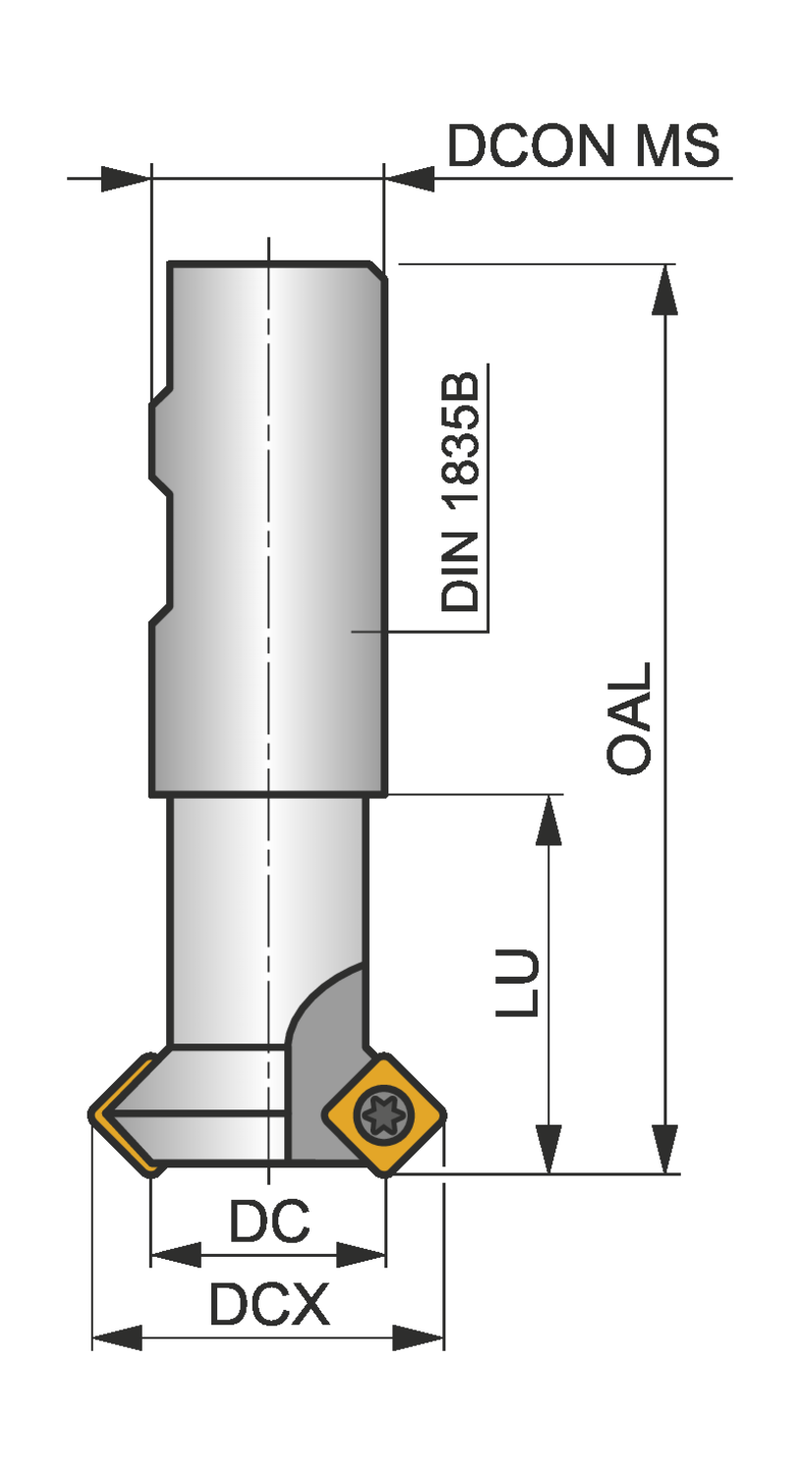

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)3.78"
Overall Length — mm (OAL)96.0 mm
Usable Length — in (LU)1.28"
Usable Length — mm (LU)32.51 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSD09
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Reference Numbers
EDP Number6789710
EAN3603602979551
File Type Download
100N3R128W100-ISSD09 — 3D Model STP Download
100N3R128W100-ISSD09 — 2D Model DXF Download
100N3R128W100-ISSD09 — Line Drawing PDF Download
