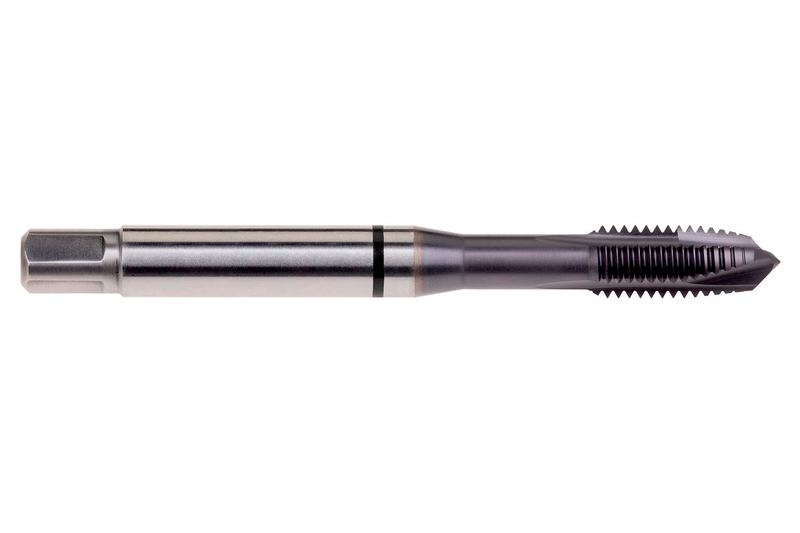

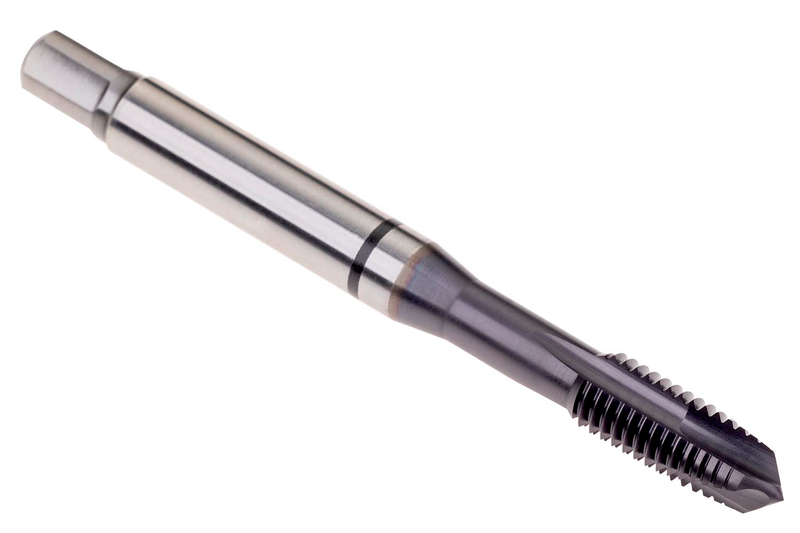

E8163/4
E8163/4
E8163/4

E8163/4

UGC DOR7812106
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.26 CAD - $152.26 CAD
$152.26 CAD
$152.26 CAD - $152.26 CAD
$152.26 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8163/4
GradeTiAlN/Sommet
Product Number7812106
Product FamilyE816
Dimensions
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)124.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.59"
Connection Dia. — mm (DCON)14.99 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)CNU - Coarse Non Uniforme
Threads per Inch (TPI)10.0
Thread Pitch — mm (TP)10.0 mm
Thread Pitch — in (TP)0.3937"
Tool Information
Direction of ToolGauche
StandardDIN/ANSI
Reference Numbers
EDP Number7812106
EAN7320760887660
File Type Download
E8163/4 — Line Drawing PDF Download
