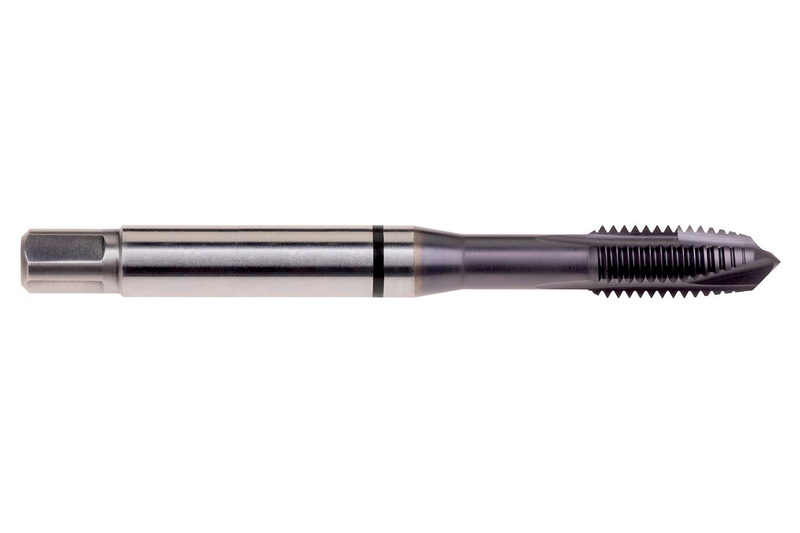

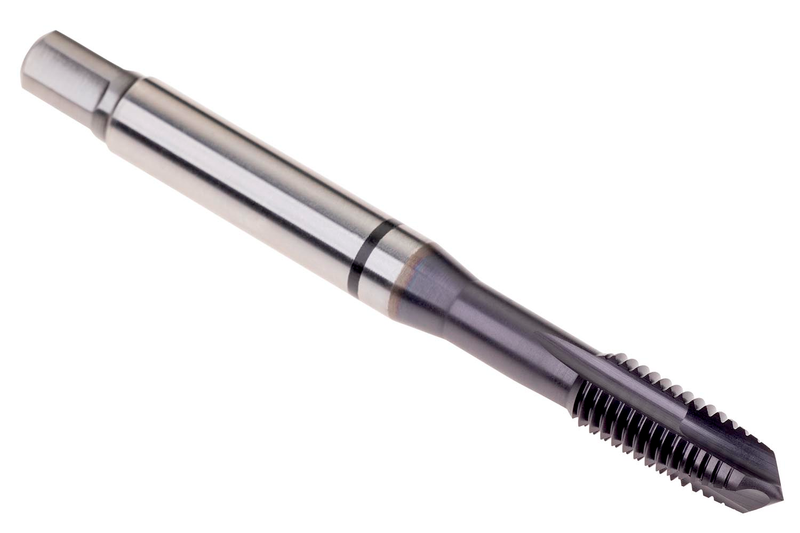

E9161/2
E9161/2
E9161/2

E9161/2

UGC DOR7812112
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.40 CAD - $58.40 CAD
$58.40 CAD
$58.40 CAD - $58.40 CAD
$58.40 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9161/2
GradeTiAlN/Sommet
Product Number7812112
Product FamilyE916
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.01 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Form (THFT)UNF - Pas fin uniforme
Threads per Inch (TPI)20.0
Thread Pitch — mm (TP)20.0 mm
Thread Pitch — in (TP)0.7874"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812112
EAN7320760887721
File Type Download
E9161/2 — Line Drawing PDF Download
