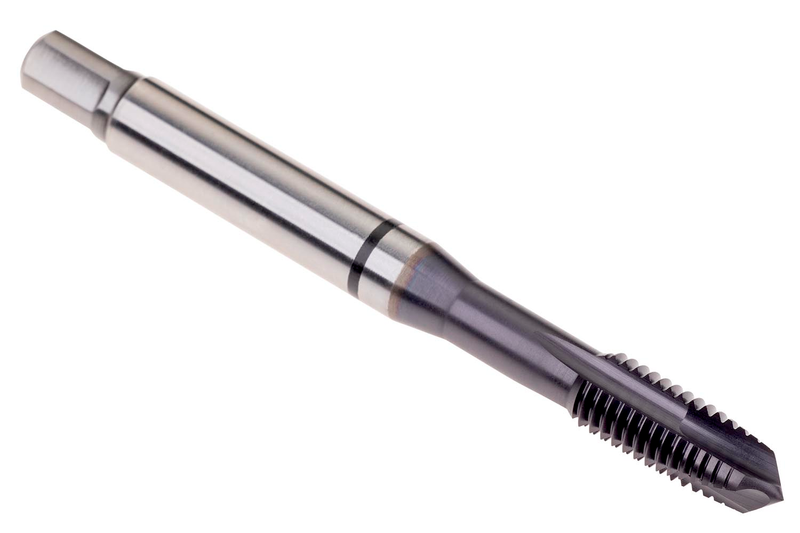

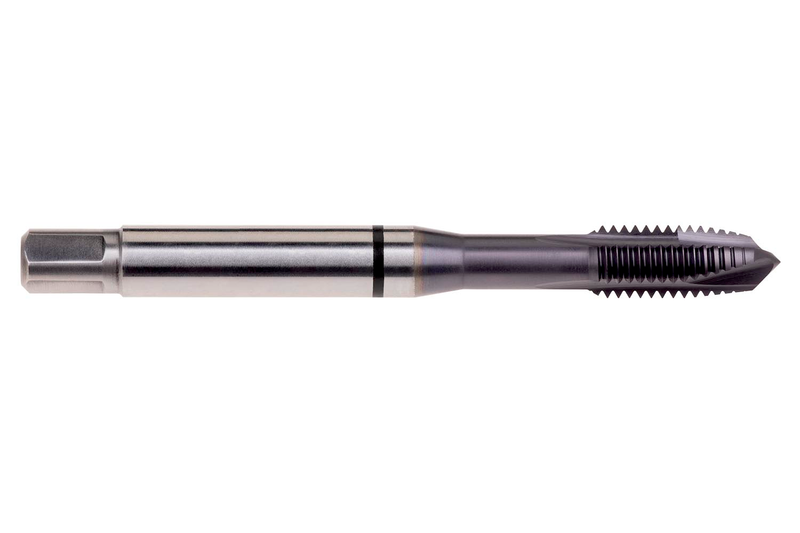

E817M5
E817M5
E817M5

E817M5

UGC DOR7812117
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.74 CAD - $26.74 CAD
$26.74 CAD
$26.74 CAD - $26.74 CAD
$26.74 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E817M5
GradeTiAlN/Sommet
Product Number7812117
Product FamilyE817
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7812117
EAN7320760887776
File Type Download
E817M5 — Line Drawing PDF Download
