E7101/2
E7101/2
E7101/2

E7101/2

UGC DOR5977622
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.81 CAD - $82.81 CAD
$82.81 CAD
$82.81 CAD - $82.81 CAD
$82.81 CAD

Vendu en lots de : 1

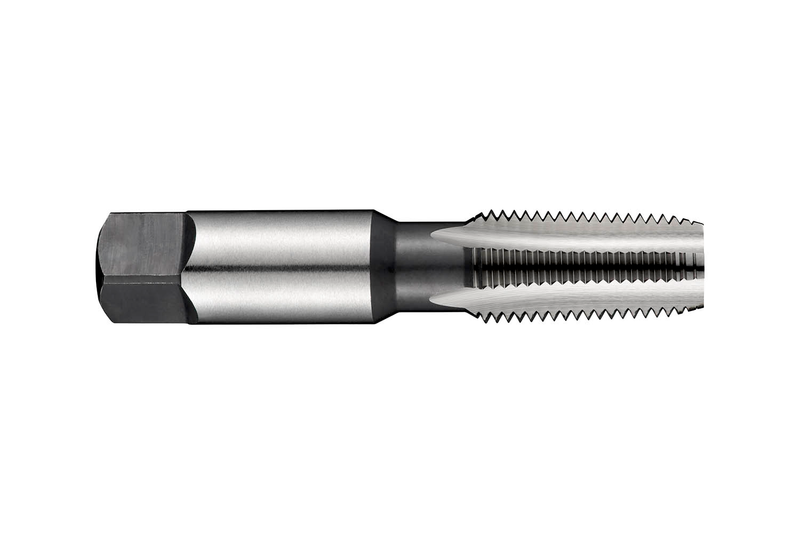

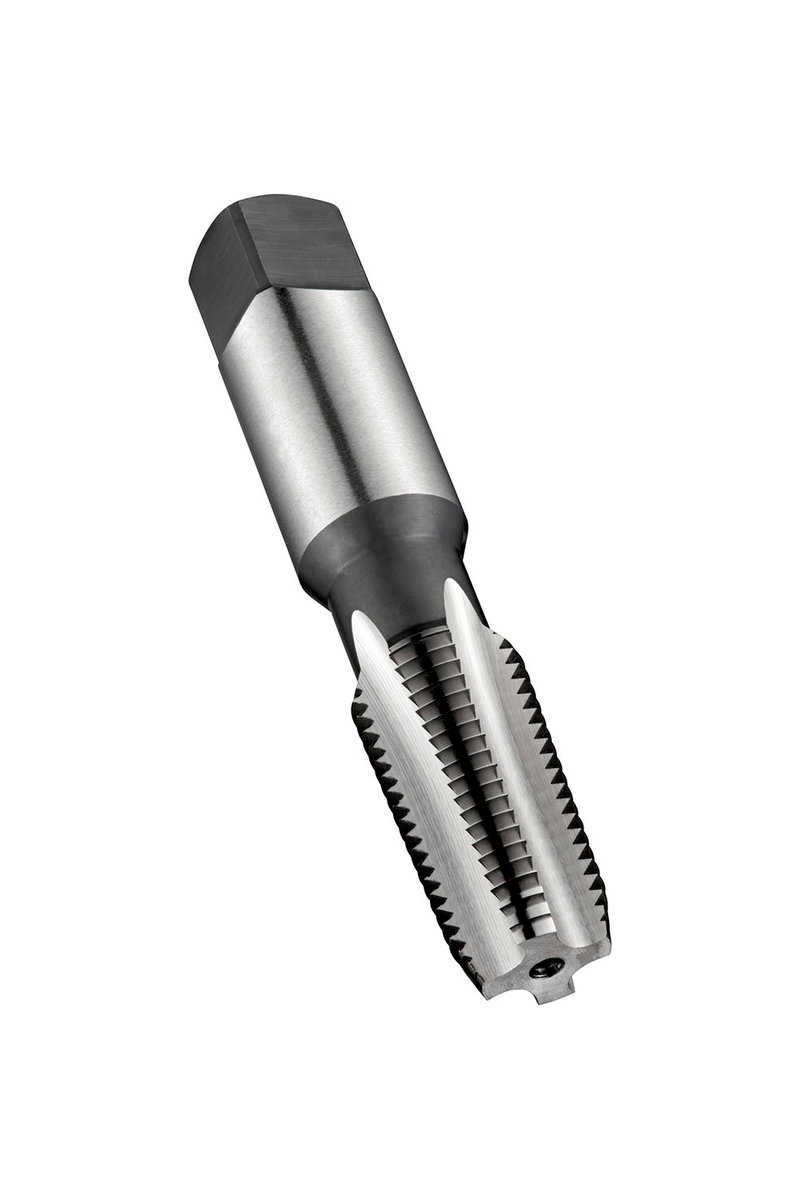

Taraud à gorge droite, chanfrein forme C, entrée 2-3xP (bouchon), pour filet NPT 1/2" (14 filets par pouce), classe de tolérance normale, dimensions conformes à la norme ~ANSI B94.9, queue 17,5 mm et carré d'entraînement 13,1 mm, en acier rapide (HSS) avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage, l'acier au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7101/2
GradeLumineux
Product Number5977622
Product FamilyE710
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.689"
Connection Dia. — mm (DCON)17.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.8402"
Thread Diameter — mm (TD)21.34 mm
Thread Form (THFT)NPT - Filetage national conique
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99865
EAN7320760099865
File Type Download

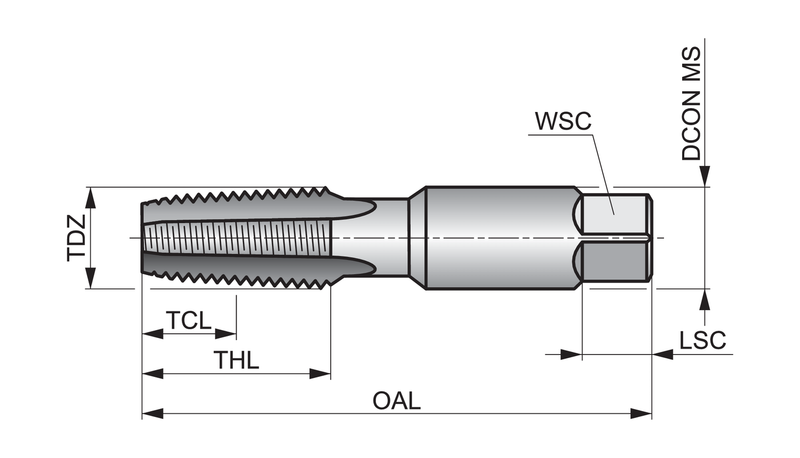

E7101/2 — Line Drawing PDF Download
