UGC DOR5978063
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.69 CAD - $36.69 CAD
$36.69 CAD
$36.69 CAD - $36.69 CAD
$36.69 CAD

Vendu en lots de : 1

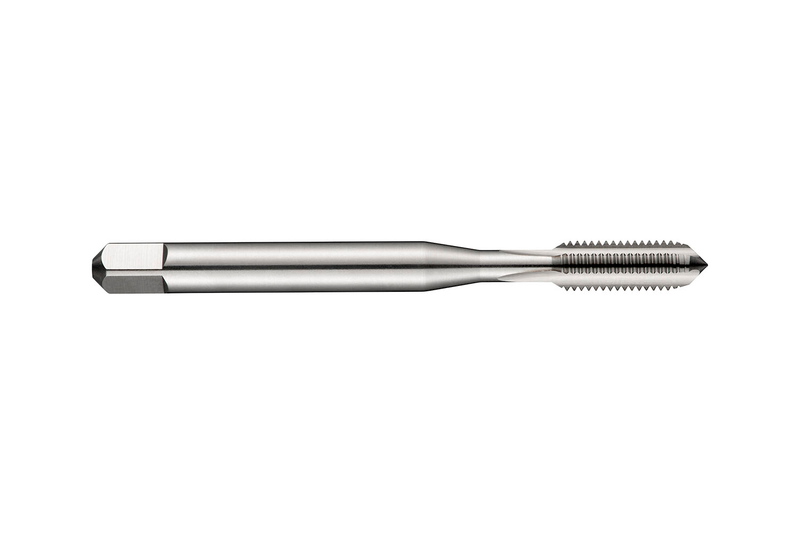

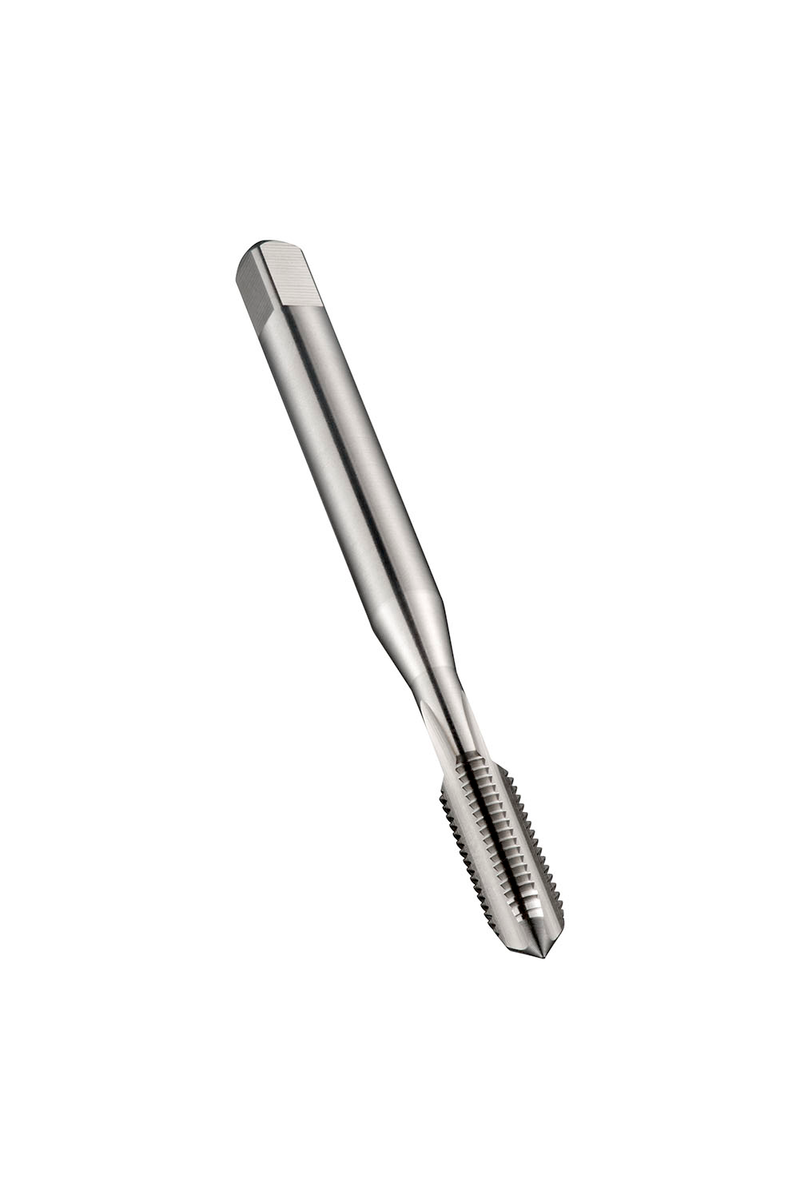

Taraud droit forme C avec entrée 2-3 filets, pour filetage rapporté métrique (Einsatzgewinde Metrisch) EGM3 au pas de 0,50 mm et de classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 4,0 mm et carré d'entraînement de 3,15 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E620M3
GradeLumineux
Product Number5978063
Product FamilyE620

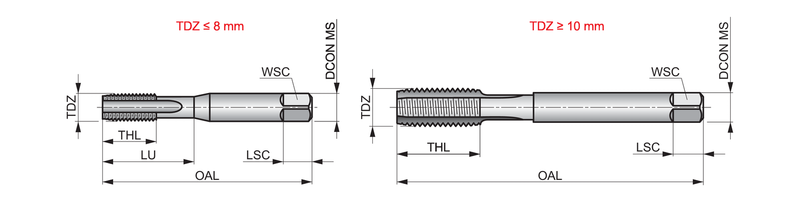

Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.5512"
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3
Thread Diameter — in (TD)0.1437"
Thread Diameter — mm (TD)3.65 mm
Thread Form (THFT)EGM - EGM (Insert de fil)
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number384824
EAN7320760384824
File Type Download
E620M3 — Line Drawing PDF Download
