UGC DOR5978439
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.40 CAD - $152.40 CAD
$152.40 CAD
$152.40 CAD - $152.40 CAD
$152.40 CAD

Vendu en lots de : 1

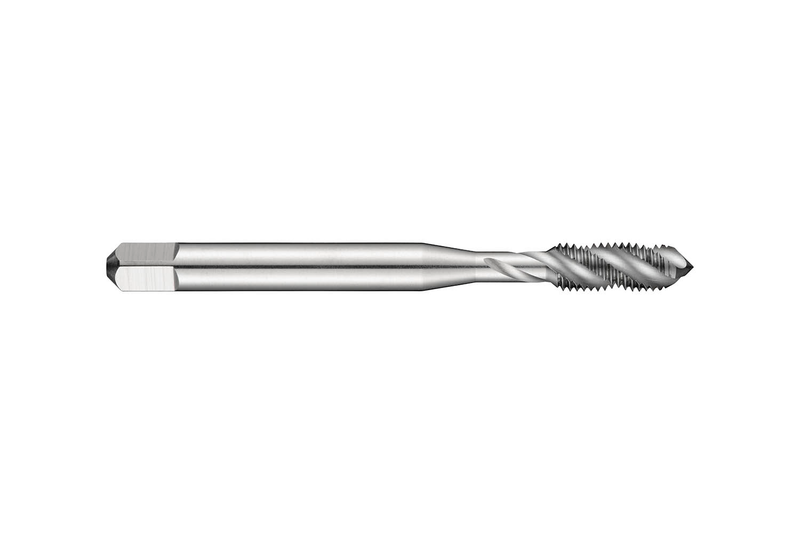

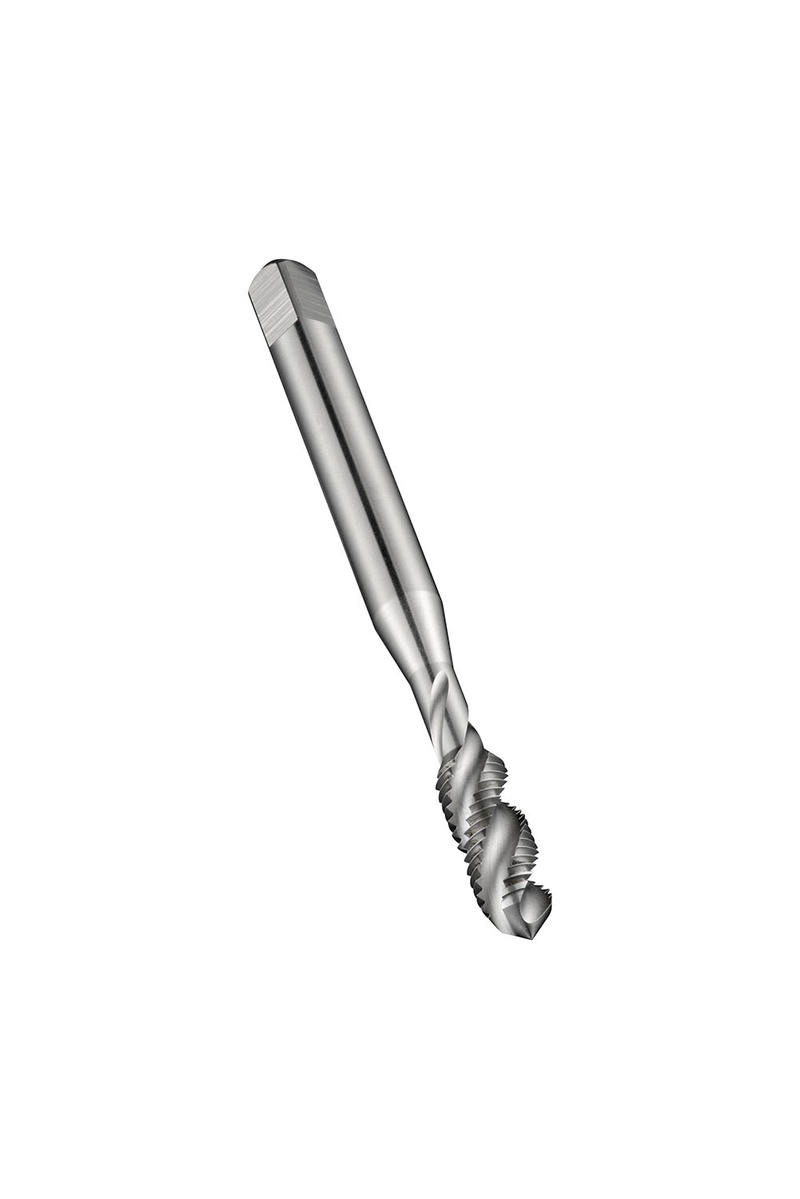

Taraud à gorge hélicoïdale, forme de chanfrein C avec une entrée de 2-3xP, pour filet rapporté métrique EGM16 avec pas de 2,00 mm et classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, HSS avec finition brillante et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E621M16
GradeLumineux
Product Number5978439
Product FamilyE621

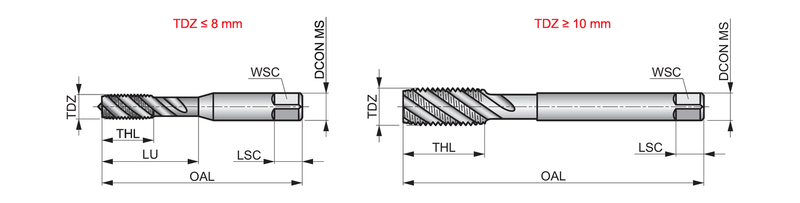

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)16
Thread Diameter — in (TD)0.7323"
Thread Diameter — mm (TD)18.6 mm
Thread Form (THFT)EGM - EGM (Insert de fil)
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number384992
EAN7320760384992
File Type Download
E621M16 — Line Drawing PDF Download
