E621M4
E621M4
E621M4

E621M4

UGC DOR5978446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.50 CAD - $53.50 CAD
$53.50 CAD
$53.50 CAD - $53.50 CAD
$53.50 CAD

Vendu en lots de : 1

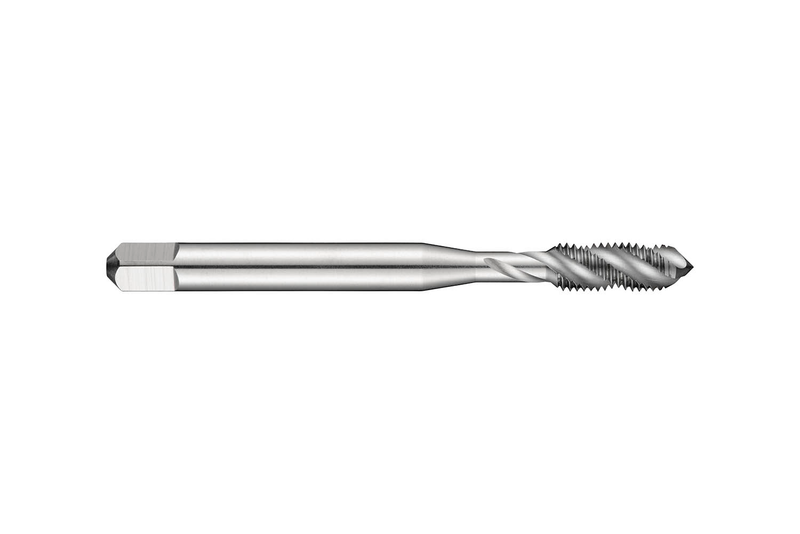

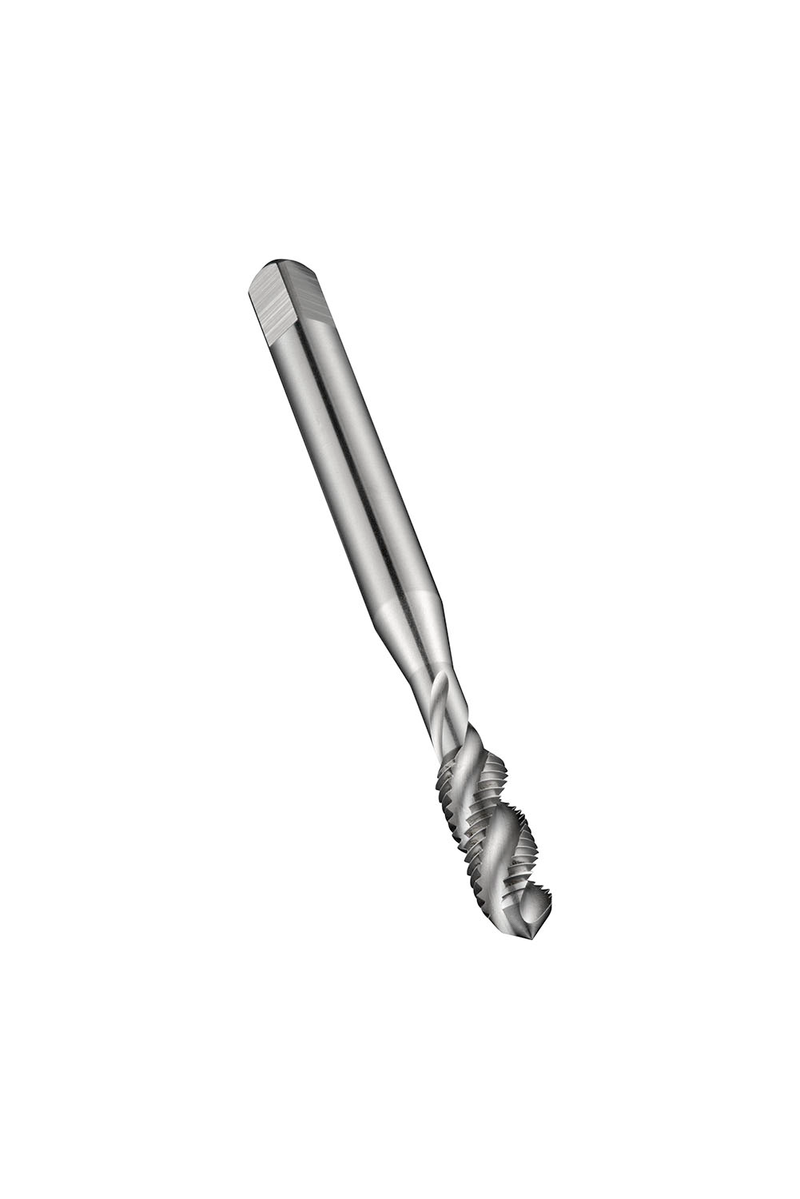

Taraud à gorge spirale avec chanfrein forme C et entrée de 2-3 filets, pour filet rapporté métrique EGM4 avec un pas de 0,70 mm et une classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, en HSS avec finition brillante et un angle d'hélice de 40° pour le taraudage de trous borgnes 2xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E621M4
GradeLumineux
Product Number5978446
Product FamilyE621

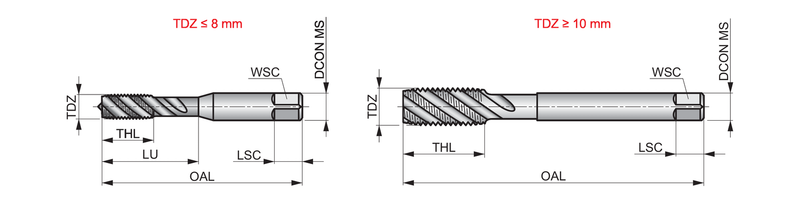

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)4
Thread Diameter — in (TD)0.1933"
Thread Diameter — mm (TD)4.91 mm
Thread Form (THFT)EGM - EGM (Insert de fil)
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number384923
EAN7320760384923
File Type Download
E621M4 — Line Drawing PDF Download
