UGC DOR5973782
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.80 CAD - $18.80 CAD
$18.80 CAD
$18.80 CAD - $18.80 CAD
$18.80 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale avec entrée B à 3,5-5 filets, pour filet ISO-Métrique M8 avec pas de 1,25 mm et classe de tolérance 6H, dimensions selon la norme ANSI avec queue de 0,3180" et carré d'entraînement de 0,2380", HSS-E métallurgie des poudres avec finition de surface revenu vapeur pour filetage de trous débouchants 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E006M8
GradeTrempé à la vapeur
Product Number5973782
Product FamilyE006

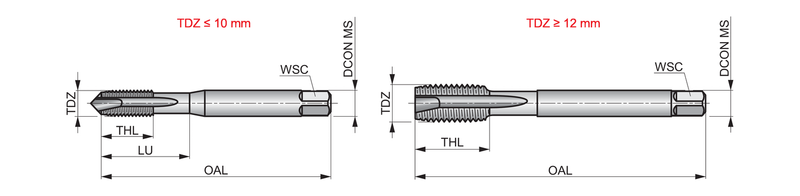

Dimensions
Overall Length — in (OAL)2.7188"
Overall Length — mm (OAL)69.06 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.1891"
Usable Length — mm (LU)30.2 mm
Connection Dia. — in (DCON)0.318"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number580516
EAN7320760580516
File Type Download
E006M8 — Line Drawing PDF Download
