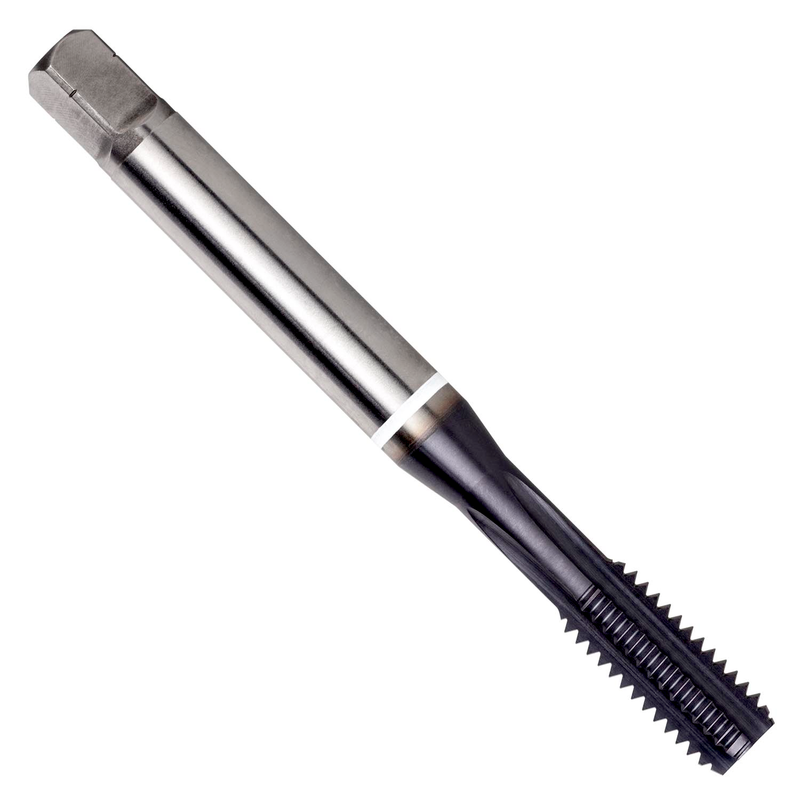

Taraud droit White Shark forme E (entrée 1.5-2xP) pour filetage ISO-Métric M10 au pas de 1,50 mm et tolérance 6H avec des limites de diamètre de pas D6, aux dimensions DIN/ANSI avec un carré d'entraînement de 0,2840" et un diamètre de queue de 0,3810", en poudre HSS-E avec revêtement TiAlN-Top pour le taraudage de trous borgnes jusqu'à 2.5xD dans la fonte grise, malléable, ductile et à graphite compacté et les polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E631M10
GradeTiAlN/Sommet
Product Number7350267
Product FamilyE631

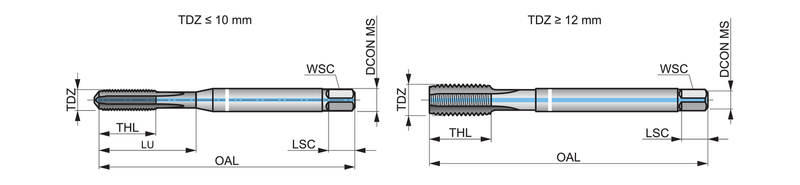

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Through Coolant Yes
StandardDIN/ANSI
Reference Numbers
EDP Number7350267
EAN7320760751114
File Type Download
E631M10 — Line Drawing PDF Download
