GL6-S2525MFL-25-R200090
GL6-S2525MFL-25-R200090
GL6-S2525MFL-25-R200090

GL6-S2525MFL-25-R200090

UGC DOR8462240
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.00 CAD - $235.00 CAD
$235.00 CAD
$235.00 CAD - $235.00 CAD
$235.00 CAD

Vendu en lots de : 1

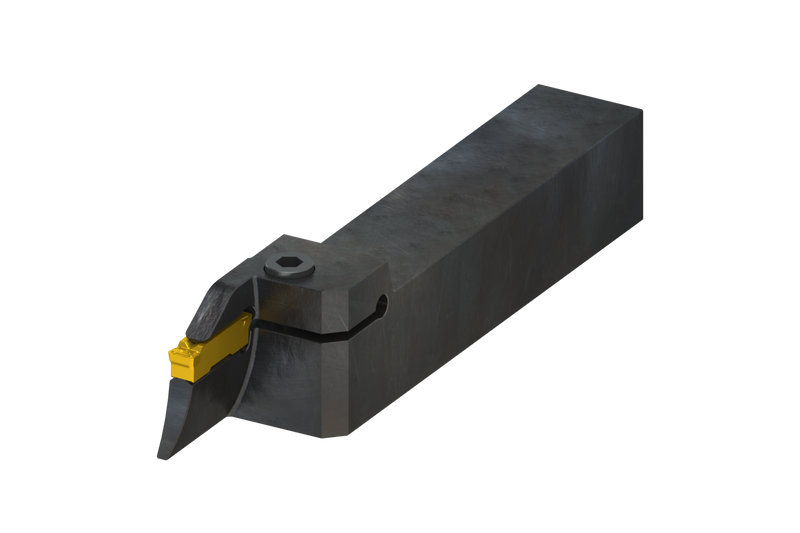

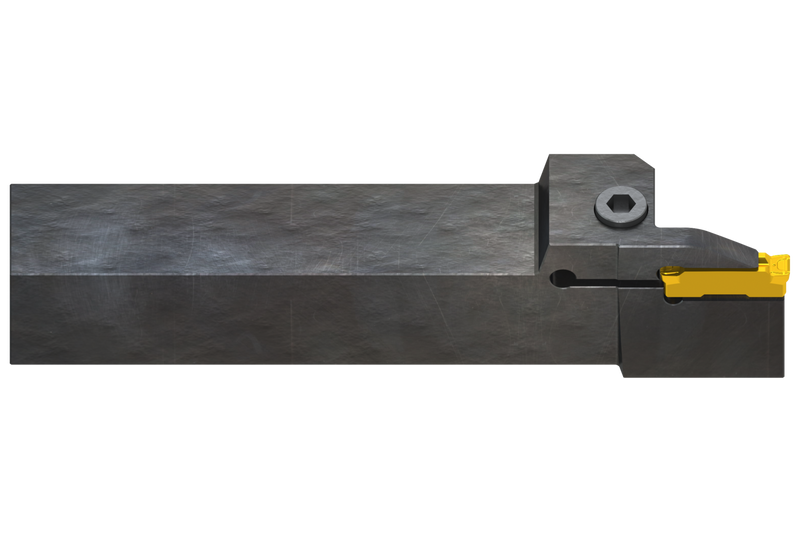

Le GL6-S2525MFL-25-R200090 est un outil de gorges frontales axiales pour inserts GL, à main gauche. Adapté aux applications de gorges frontales, de tournage et de profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-S2525MFL-25-R200090
Product Number8462240
Product FamilyGLSF axiale G-D
Insert Geometry
Depth of Cut Max — in (APMX)0.984"

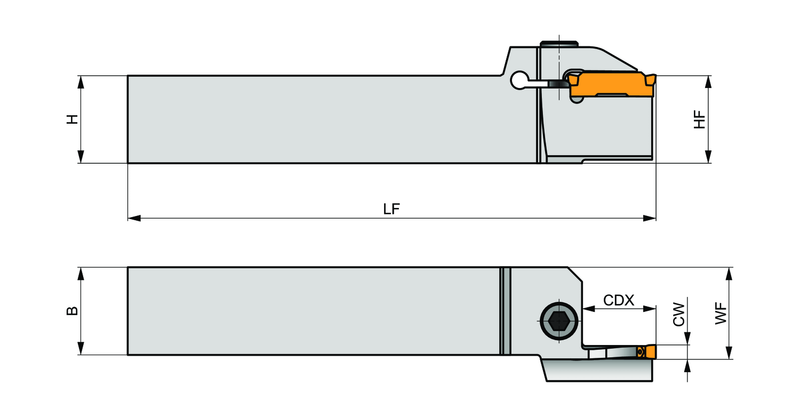

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Reference Numbers
EDP Number8462240
EAN3603604196154
File Type Download
GL6-S2525MFL-25-R200090 — 3D Model STP Download
GL6-S2525MFL-25-R200090 — 2D Model DXF Download
GL6-S2525MFL-25-R200090 — Line Drawing PDF Download
