GL6-S3232PFL-32-R200090
GL6-S3232PFL-32-R200090
GL6-S3232PFL-32-R200090

GL6-S3232PFL-32-R200090

UGC DOR8462242
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$304.00 CAD - $304.00 CAD
$304.00 CAD
$304.00 CAD - $304.00 CAD
$304.00 CAD

Vendu en lots de : 1

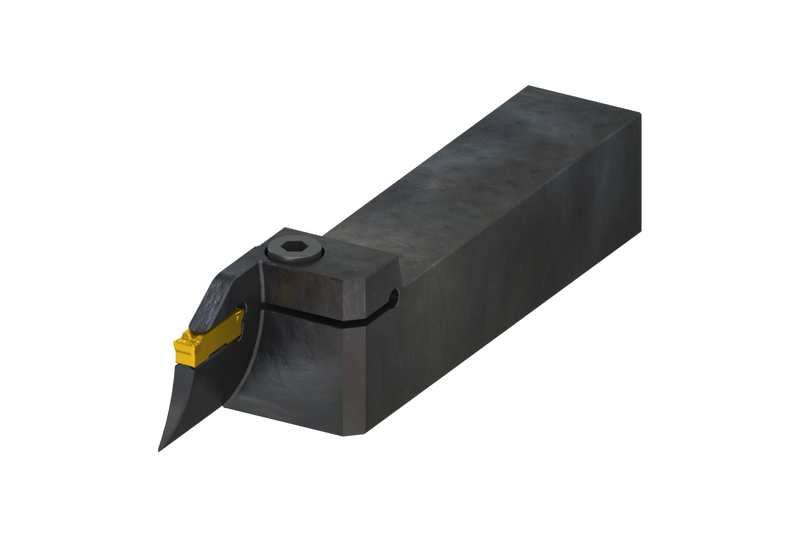

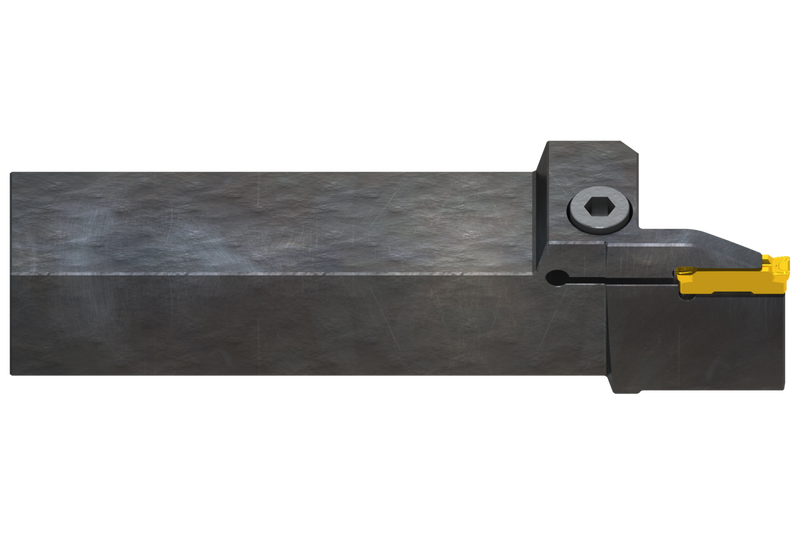

La GL6-S3232PFL-32-R200090 est un outil de gorge frontale axiale pour inserts GL. Convient aux applications de rainurage frontal, de tournage et de profilage. Le corps est traité pour une durée de vie plus longue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-S3232PFL-32-R200090
Product Number8462242
Product FamilyGLSF L-R AXIAL
Insert Geometry
Depth of Cut Max — in (APMX)1.26"

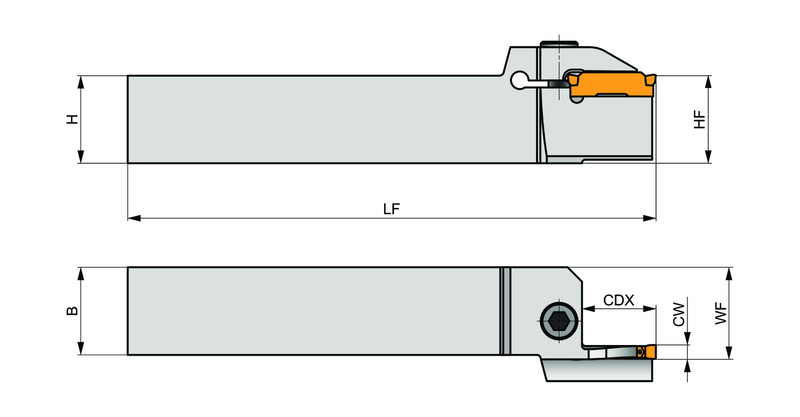

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Reference Numbers
EDP Number8462242
EAN3603604196178
File Type Download
GL6-S3232PFL-32-R200090 — 3D Model STP Download
GL6-S3232PFL-32-R200090 — 2D Model DXF Download
GL6-S3232PFL-32-R200090 — Line Drawing PDF Download
