ONMX 060508SR-F:M9340
ONMX 060508SR-F:M9340

ONMX 060508SR-F:M9340

UGC DOR8348376
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

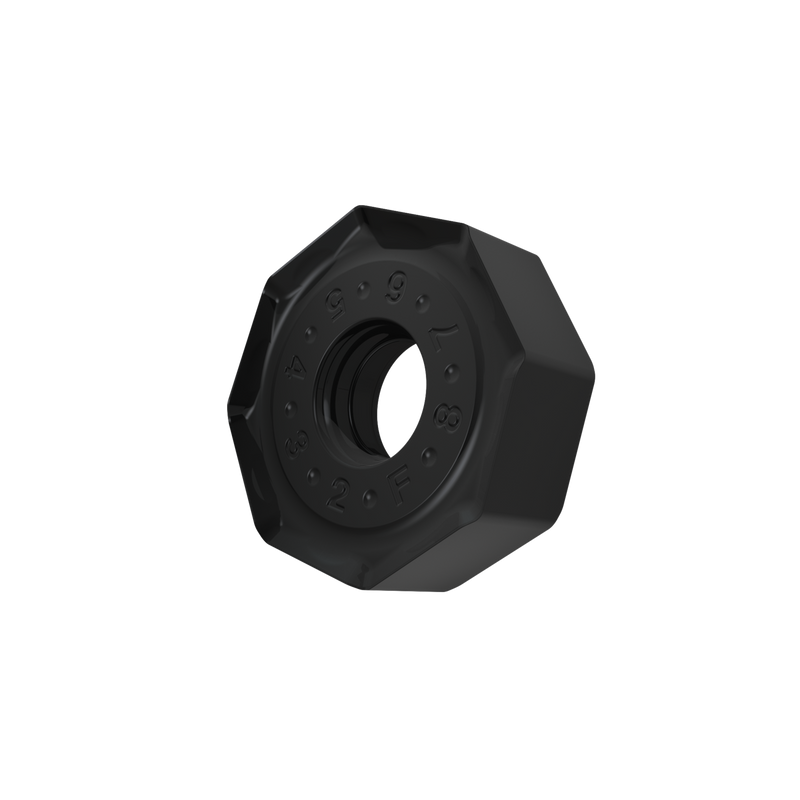

Plaquette de fraisage double face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4mm, avec un rayon de bec de 0,8mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie F avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu M9340 MT-CVD dans les plages de nuances ISO P35 -P50/M30 -M40 et S15 -S20 pour l'usinage de l'acier, de l'acier inoxydable et du superalliage avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-F:M9340
GradeM9340
Chipbreaker (CBMD)F
Product Number8348376
Product FamilyONMX 06

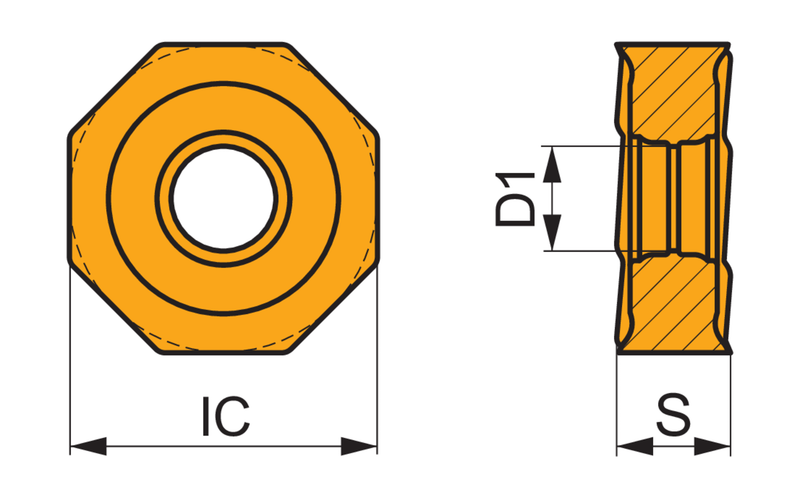

Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348376
EAN3603604110396
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
ONMX 060508SR-F:M9340 — Line Drawing PDF Download
