GL6-S2525MFL-20-80
GL6-S2525MFL-20-80
GL6-S2525MFL-20-80

GL6-S2525MFL-20-80

UGC DOR7803256
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

Outil de gorge à pince supérieure pour le maintien d'un insert double face de 25mm de long et de 6mm de largeur de coupe (désignation GL6-D…), à gauche avec l'insert parallèle à la queue pour un diamètre de tronçonnage maximal de 80mm, hauteur de la queue 25mm, largeur 25mm et longueur de l'outil 150mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-S2525MFL-20-80
Product Number7803256
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7803256
EAN3603603679115
File Type Download
GL6-S2525MFL-20-80 — 3D Model STP Download

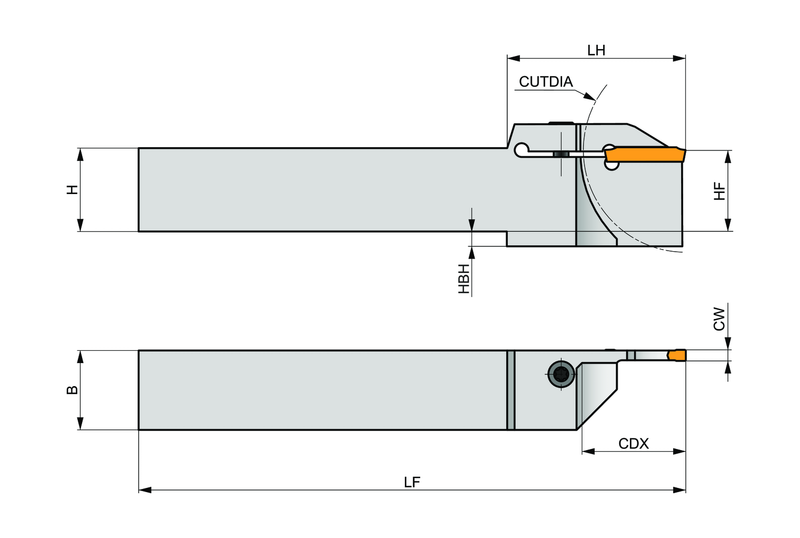

GL6-S2525MFL-20-80 — Line Drawing PDF Download
