GL2-D200M02-GM:G8330
GL2-D200M02-GM:G8330

GL2-D200M02-GM:G8330

UGC DOR8023038
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.71 CAD - $33.71 CAD
$33.71 CAD
$33.71 CAD - $33.71 CAD
$33.71 CAD

Vendu en lots de : 10

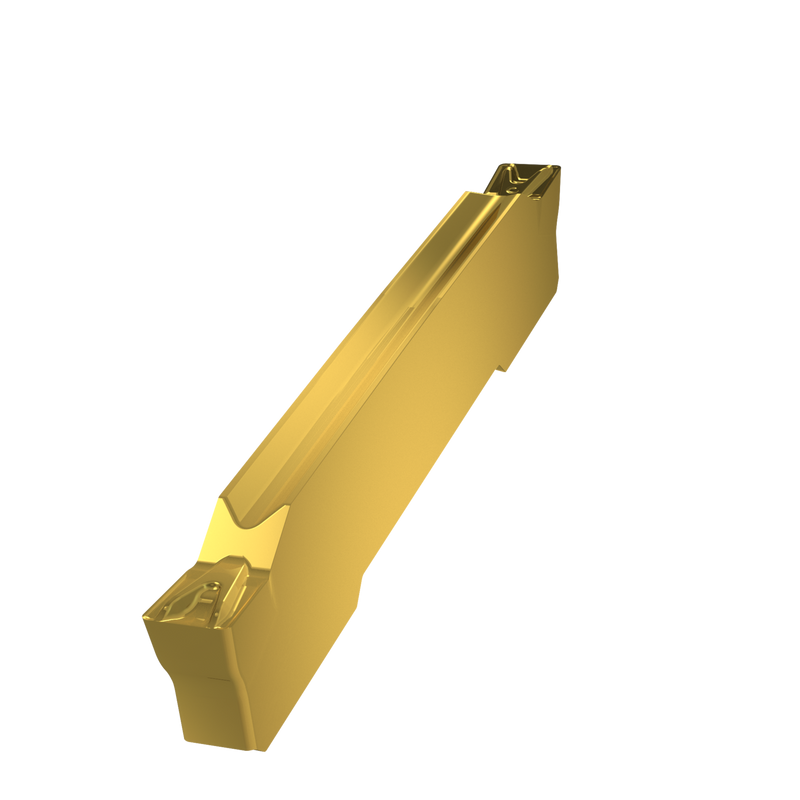

Plaquette de tronçonnage et rainurage double face, de 25 mm de long avec une largeur de coupe de 2 mm et des rayons de coin de 0,2 mm. Nuance carbure WC-Co à grain fin revêtu PVD G8330 dans les plages ISO P25 -P40/M20 -M35 et K20 -K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte. Géométrie polyvalente GM pour le rainurage et le tournage longitudinal, et les coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-D200M02-GM:G8330
GradeG8330
Chipbreaker (CBMD)Bonjour
Product Number8023038
Product FamilyGL. D - M.G.

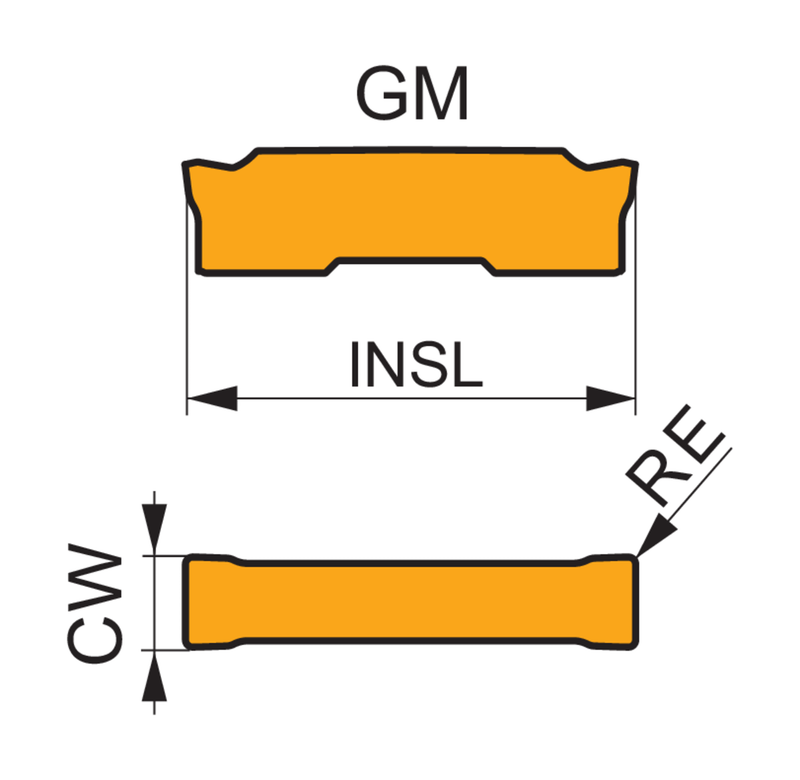

Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8023038
EAN3603603844940
File Type Download
GL2-D200M02-GM:G8330 — Line Drawing PDF Download
