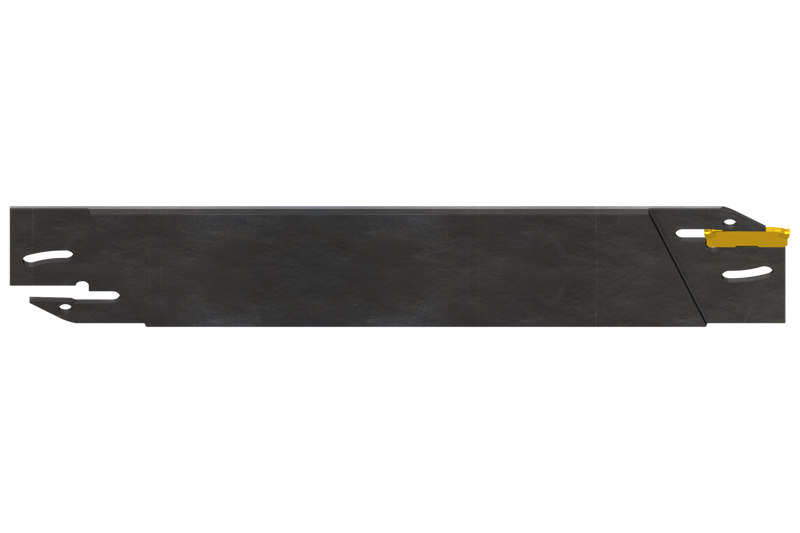

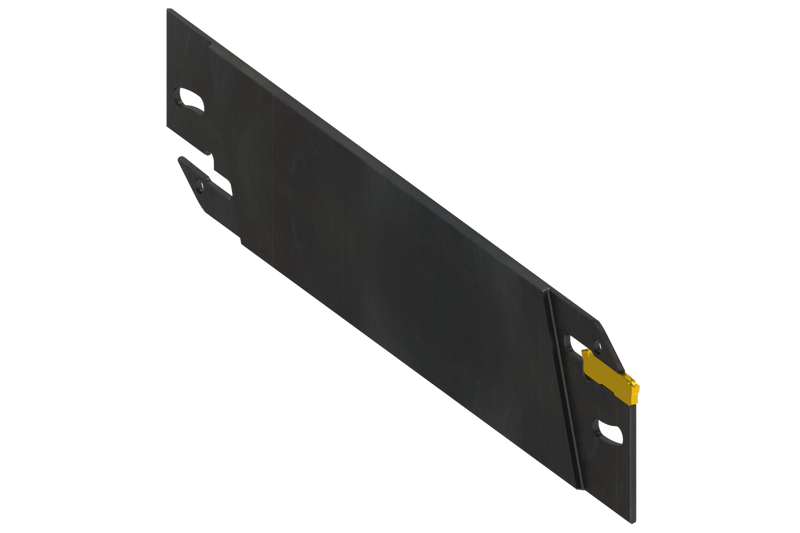

GL1-S32MBR-16
GL1-S32MBR-16
GL1-S32MBR-16

GL1-S32MBR-16

UGC DOR8462756
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$265.00 CAD - $265.00 CAD
$265.00 CAD
$265.00 CAD - $265.00 CAD
$265.00 CAD

Vendu en lots de : 1

La GL1-S32MBR-16 est une plaquette pour les inserts GL, adaptée aux applications de tronçonnage et de rainurage. Remplacement facile des inserts grâce à une clé spécifique (incluse dans l'emballage). Peut être montée dans les blocs d'outils DU, D. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL1-S32MBR-16
Product Number8462756
Product FamilyGLS B
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

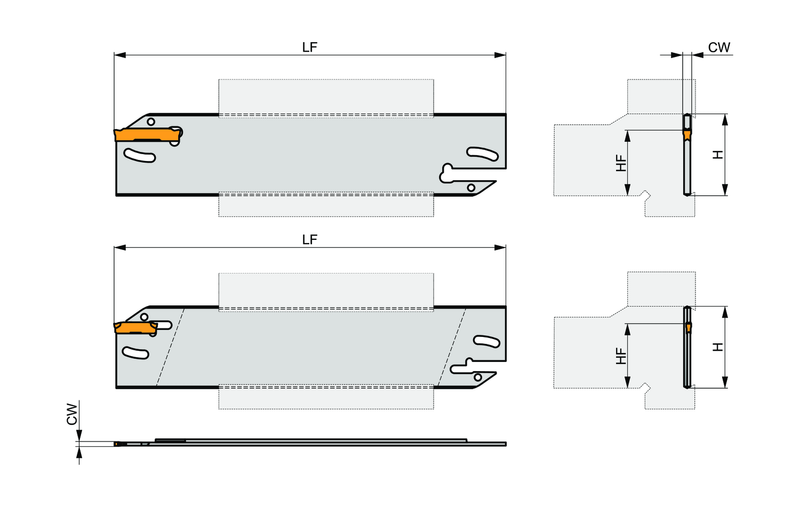

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8462756
EAN3603604196628
File Type Download
GL1-S32MBR-16 — 3D Model STP Download
GL1-S32MBR-16 — 2D Model DXF Download
GL1-S32MBR-16 — Line Drawing PDF Download
