GL6-D800M08-GM:G8330
GL6-D800M08-GM:G8330

GL6-D800M08-GM:G8330

UGC DOR8463347
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.79 CAD - $43.79 CAD
$43.79 CAD
$43.79 CAD - $43.79 CAD
$43.79 CAD

Vendu en lots de : 10

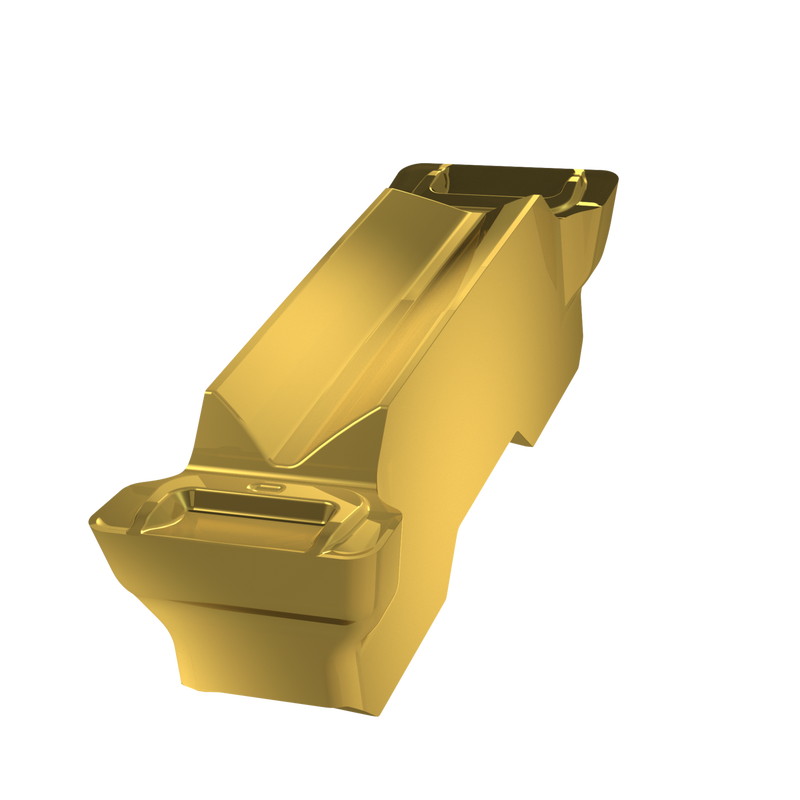

Plaquette de tronçonnage et de rainurage double face, d'une longueur de 0,984 pouce, d'une largeur de coupe de 0,315 pouce et d'un rayon de coin de 0,031 pouce. Nuance carbure WC-Co à grains fins revêtue PVD G8330 dans les plages de nuances ISO P25 -P40/M20 -M35 et K20 -K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte. Géométrie polyvalente GM pour le rainurage et le tournage longitudinal, et pour les coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL6-D800M08-GM:G8330
GradeG8330
Chipbreaker (CBMD)Bonjour
Product Number8463347
Product FamilyGL. D - GM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8463347
EAN3603604193405
File Type Download

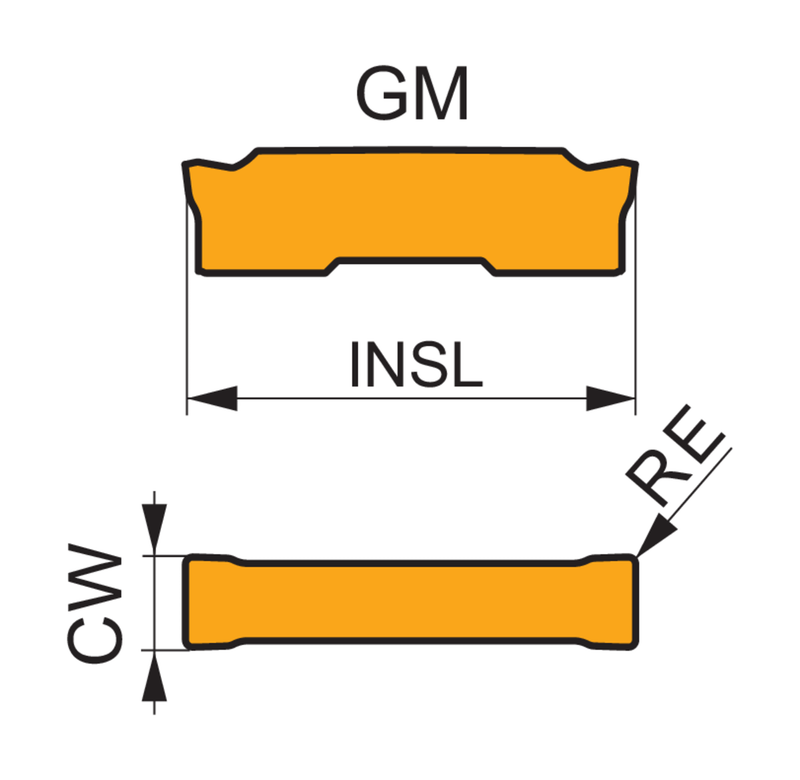

GL6-D800M08-GM:G8330 — Line Drawing PDF Download
