A20R-GGFL 0313
A20R-GGFL 0313
A20R-GGFL 0313

A20R-GGFL 0313

UGC DOR6758156
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.00 CAD - $356.00 CAD
$356.00 CAD
$356.00 CAD - $356.00 CAD
$356.00 CAD

Vendu en lots de : 1

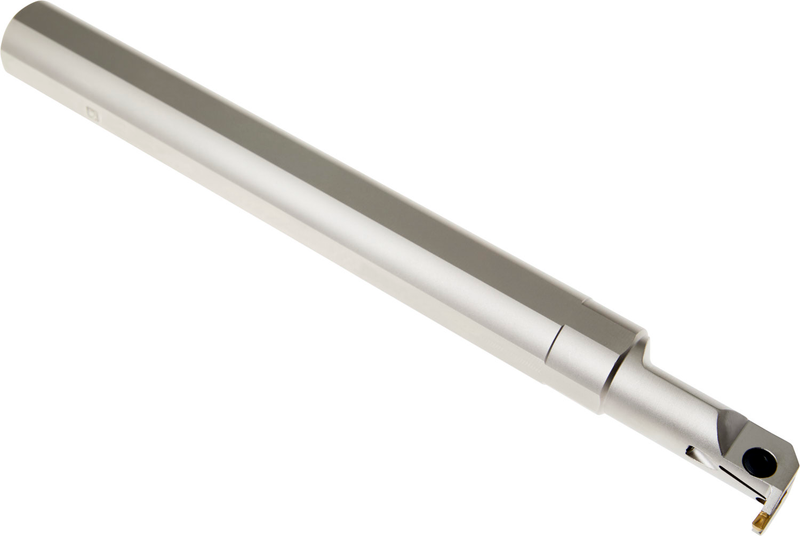

Barre de rainurage à bride supérieure pour plaquette double ou simple face de 12,6 mm de long avec une largeur de coupe de 3 mm (désignation LCM. 0313..), à gauche avec la plaquette perpendiculaire à la queue pour une profondeur de rainurage maximale de 4,5 mm, diamètre de la queue de 20 mm et longueur d'outil de 200 mm pour le rainurage et le tournage intérieurs

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20R-GGFL 0313
Product Number6758156
Product FamilyGG.(LR) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.1772"

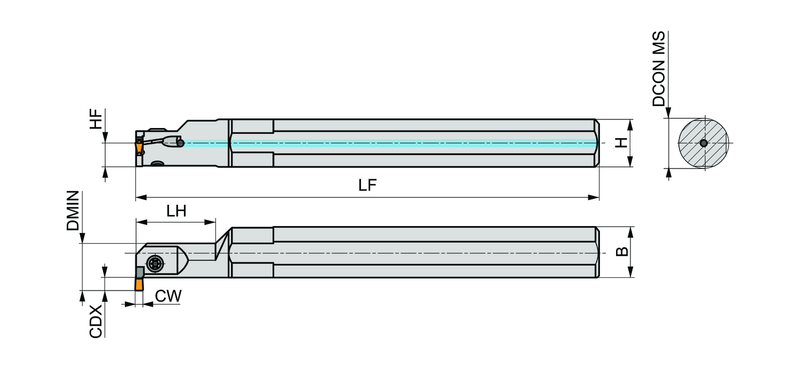

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758156
EAN3603602935021
File Type Download
A20R-GGFL 0313 — 3D Model STP Download
A20R-GGFL 0313 — Line Drawing PDF Download
