P61.SGR-A-0025R-06
P61.SGR-A-0025R-06
P61.SGR-A-0025R-06

P61.SGR-A-0025R-06

UGC DOR7725321
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$334.00 CAD - $334.00 CAD
$334.00 CAD
$334.00 CAD - $334.00 CAD
$334.00 CAD

Vendu en lots de : 1

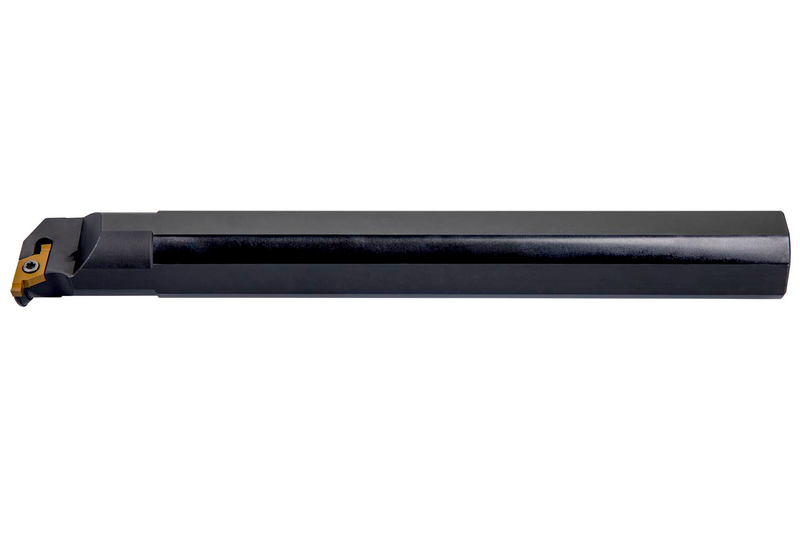

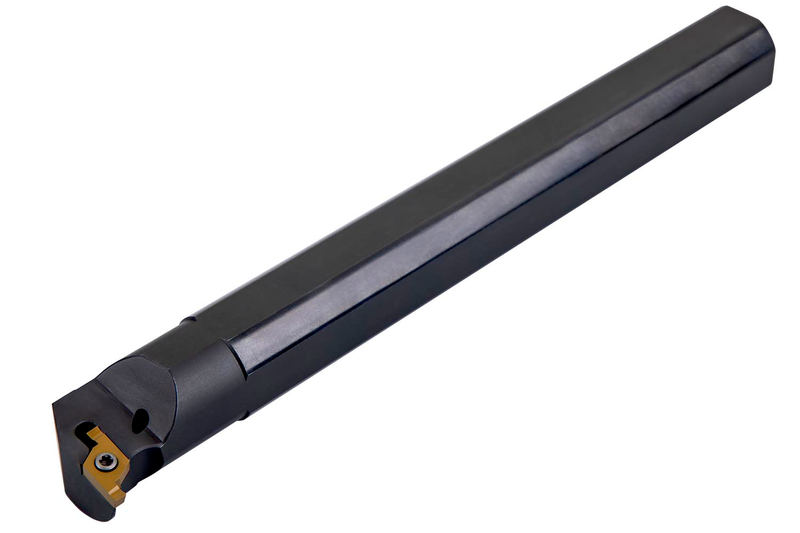

Barre de chariotage à serrage par vis pour plaquette double à largeur de coupe de 0,85-3,20mm (désignation X61 0602..), droite avec plaquette perpendiculaire à la queue, diamètre de queue 25mm et longueur d'outil 200mm pour le chariotage intérieur

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P61.SGR-A-0025R-06
Product Number7725321
Product FamilyP61(RL) INT

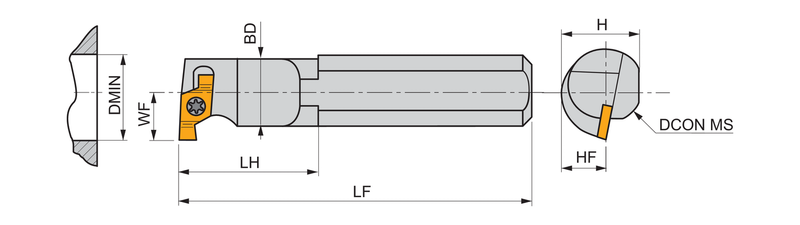

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7725321
EAN3603603597051
File Type Download
P61.SGR-A-0025R-06 — 3D Model STP Download
P61.SGR-A-0025R-06 — Line Drawing PDF Download
