G12518,0X10,5
G12518,0X10,5
G12518,0X10,5
G12518,0X10,5

G12518,0X10,5

UGC DOR5973164
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.54 CAD - $65.54 CAD
$65.54 CAD
$65.54 CAD - $65.54 CAD
$65.54 CAD

Vendu en lots de : 1

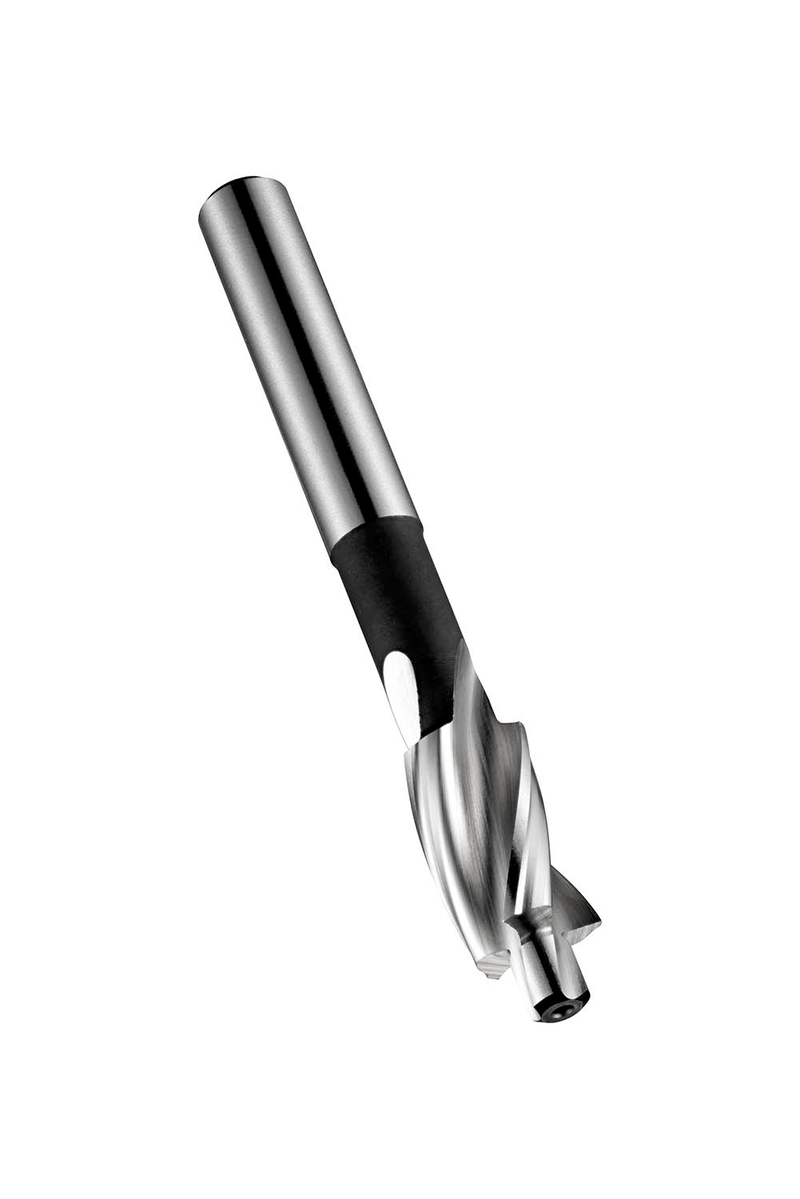

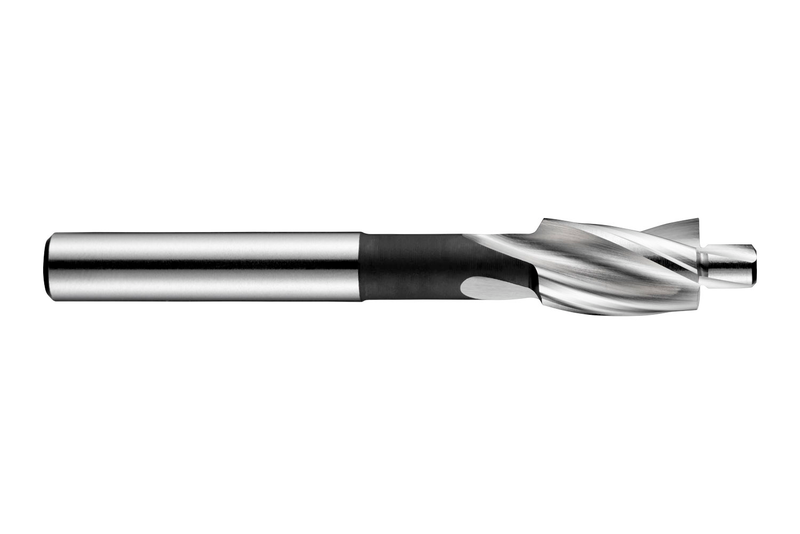

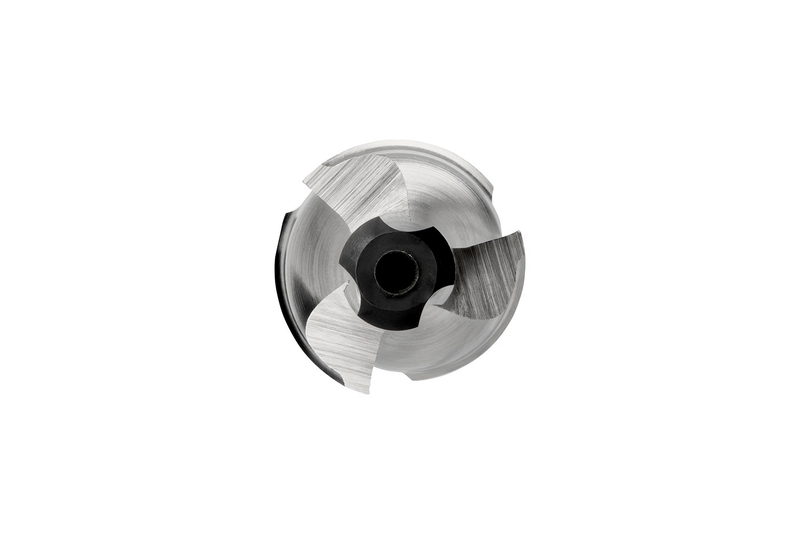

Fraise à chanfreiner trois dents, diamètre 18,00 mm, longueur totale 100 mm, longueur de coupe 22 mm et queue cylindrique de 12,5 mm, selon la norme DIN 373 pour réaliser un lamage à l'aide d'un foret pilote non perçant de 10,50 mm de diamètre pour un ajustement serré pour M10, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, forgés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12518.0X10.5
GradeLumineux
Product Number5973164
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107690
EAN7320760107690
File Type Download

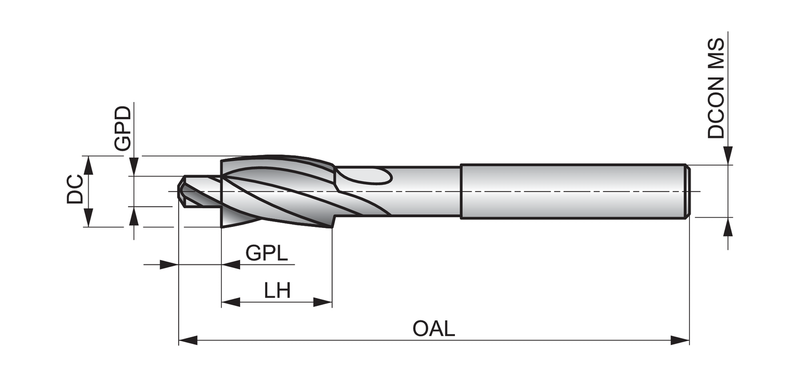

G12518,0X10,5 — Line Drawing PDF Download
