UGC DOR8533840
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.71 CAD - $30.71 CAD
$30.71 CAD
$30.71 CAD - $30.71 CAD
$30.71 CAD

Vendu en lots de : 1

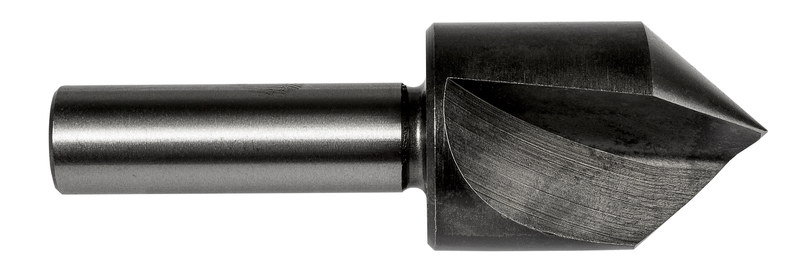

Fraise à chanfreiner à 1 goujure, angle de chanfrein de 90°, diamètre maximal de 1/2" avec une longueur totale de 1,13/16" et une longueur de tête de 13/32" et une tige droite de 1/4", selon la norme ANSI, pour la production d'un logement conique pour vis à tête fraisée métriques ISO, en HSS avec finition brillante standard pour l'usinage d'acier à usinage facile, d'acier au carbone non allié et d'acier à outils, d'acier forgé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G6031/2X90
Product Number8533840
Product FamilyG603

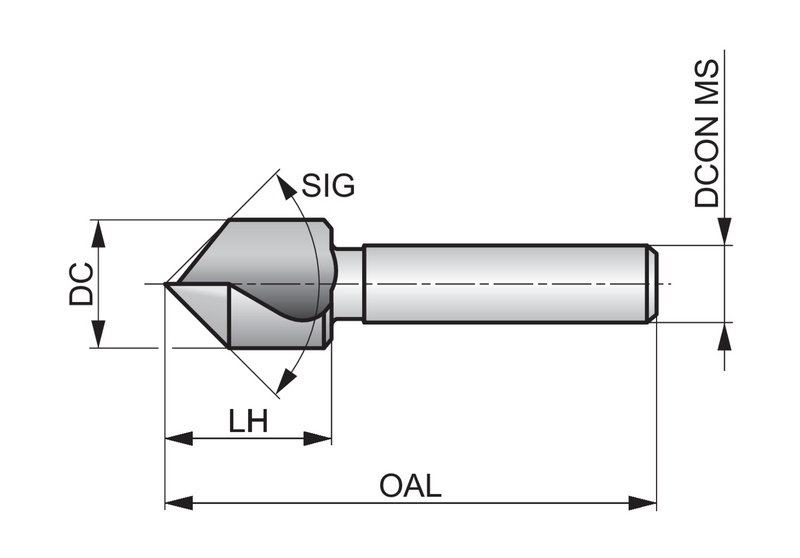

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)1.8125"
Overall Length — mm (OAL)46.04 mm
Length × Diameter Ratio4xD
Functional Length — in (LF)0.40625"
Functional Length — mm (LF)10.32 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)90°
Tool Information
StandardANSI
Reference Numbers
EDP Number8533840
EAN3603607162545
File Type Download
G6031/2X90 — Line Drawing PDF Download
