802D-0594-118-S100
802D-0594-118-S100
802D-0594-118-S100

802D-0594-118-S100

UGC DOR6801090
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$642.00 CAD - $642.00 CAD
$642.00 CAD
$642.00 CAD - $642.00 CAD
$642.00 CAD

Vendu en lots de : 1

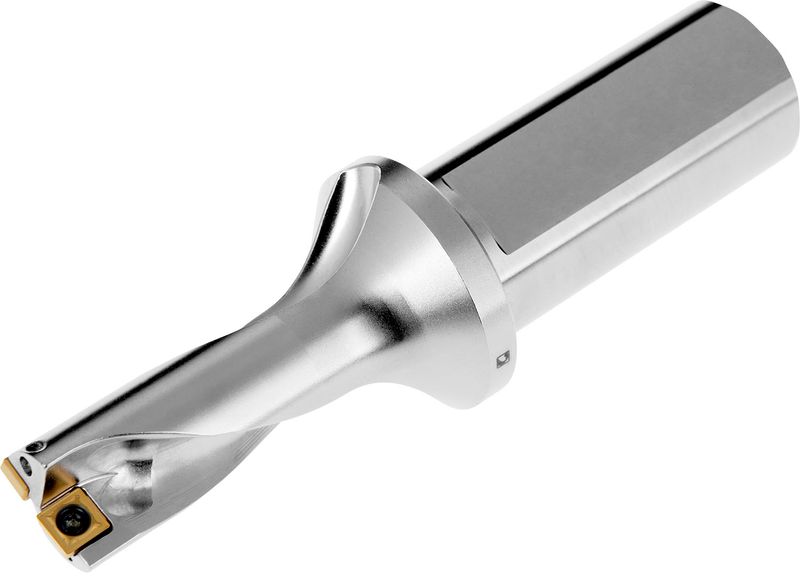

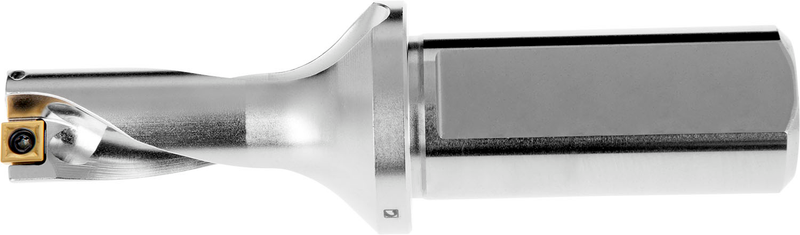

Forets à plaquettes indexables qui utilisent une plaquette XPET 0502.. dans le logement central et une plaquette SCET 0502.. dans le logement périphérique, diamètre de coupe 0.594'', avec une queue cylindrique 1.000'' avec méplat conforme à ISO 9766 et arrosage central pour des profondeurs de perçage maximales jusqu'à 2 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)802D-0594-118-S100
Product Number6801090
Product FamilyI802D
Insert Geometry
Depth of Cut Max — in (APMX)1.188"
Depth of Cut Max — mm (APMX)30.18 mm

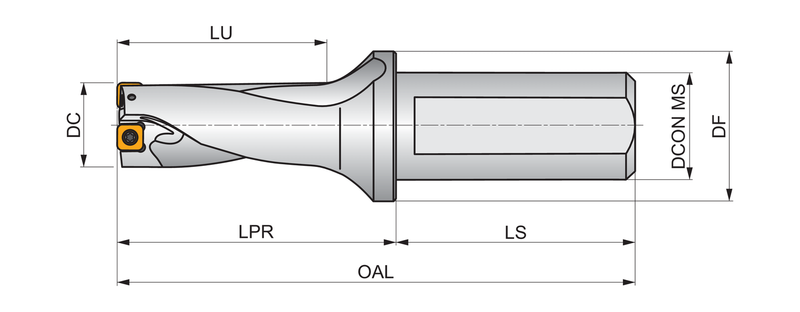

Dimensions
Cutting Diameter — in (DC)0.594"
Cutting Diameter — mm (DC)15.1 mm
Overall Length — in (OAL)4.417"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.346"
Usable Length — mm (LU)34.19 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6801090
EAN3603602994066
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
802D-0594-118-S100 — 3D Model STP Download
802D-0594-118-S100 — 2D Model DXF Download
802D-0594-118-S100 — Line Drawing PDF Download
