803D-21,5-64,5-S25
803D-21,5-64,5-S25
803D-21,5-64,5-S25

803D-21,5-64,5-S25

UGC DOR6820802
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$710.00 CAD - $710.00 CAD
$710.00 CAD
$710.00 CAD - $710.00 CAD
$710.00 CAD

Vendu en lots de : 1

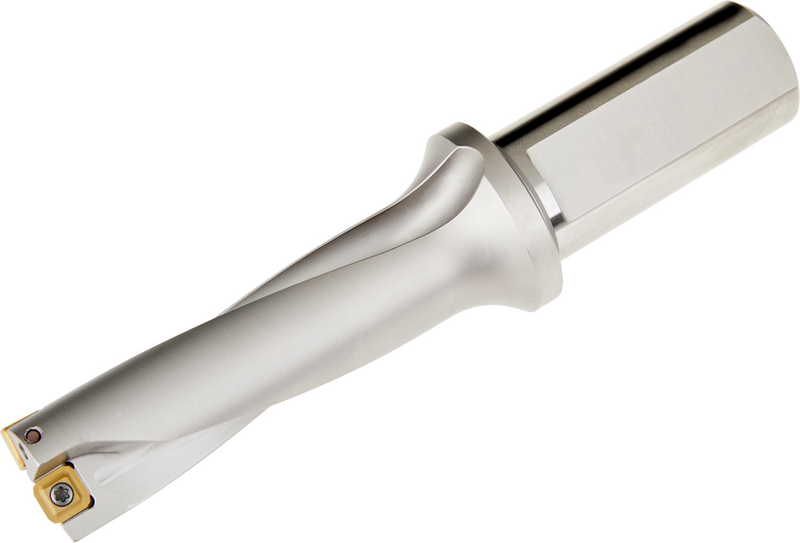

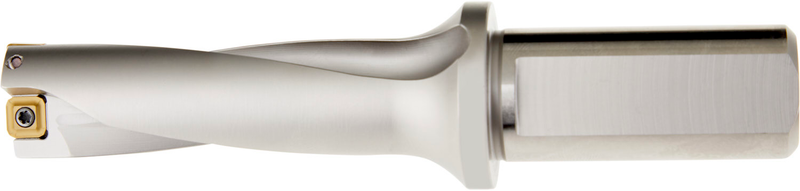

Forêt à plaquettes amovibles utilisant une plaquette XPET 0703.. dans la poche centrale et une plaquette SCET 0602.. dans la poche périphérique, diamètre de coupe 21,5 mm en combinaison avec l'EP253253, adapté à un réglage radial de -0,35 à +0,50 mm, avec une queue cylindrique de 25 mm avec méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 3 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)803D-21,5-64,5-S25
Product Number6820802
Product Family803D
Insert Geometry
Depth of Cut Max — in (APMX)2.5591"
Depth of Cut Max — mm (APMX)65.0 mm
Dimensions
Cutting Diameter — in (DC)0.846"
Cutting Diameter — mm (DC)21.5 mm
Overall Length — in (OAL)6.122"
Overall Length — mm (OAL)155.5 mm
Length × Diameter Ratio3
Usable Length — in (LU)2.7874"
Usable Length — mm (LU)70.8 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6820802
EAN3603603005396
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
803D-21,5-64,5-S25 — 3D Model STP Download
803D-21,5-64,5-S25 — 2D Model DXF Download
803D-21,5-64,5-S25 — Line Drawing PDF Download
