804D-41-164-S40
804D-41-164-S40
804D-41-164-S40

804D-41-164-S40

UGC DOR6760972
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,062.00 CAD - $1,062.00 CAD
$1,062.00 CAD
$1,062.00 CAD - $1,062.00 CAD
$1,062.00 CAD

Vendu en lots de : 1

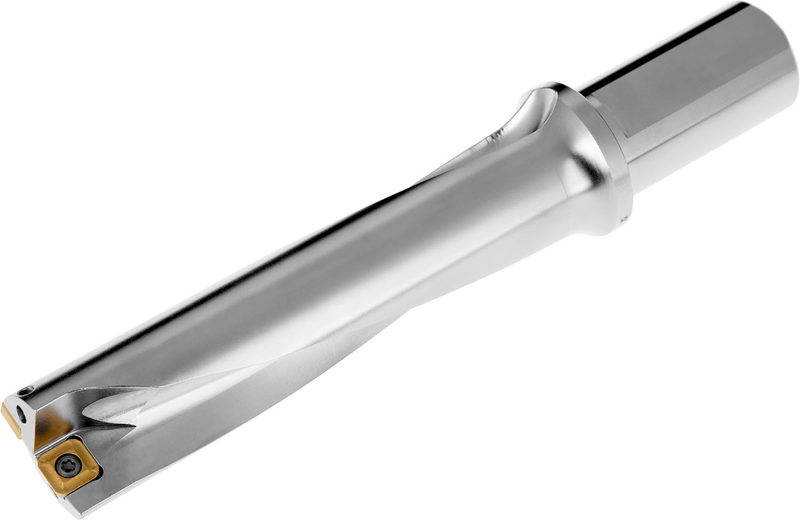

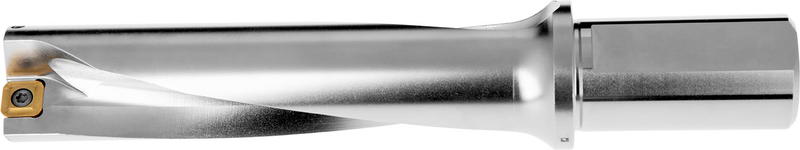

Foret à plaquettes indexables utilisant une plaquette XPET 12T3.. dans la poche centrale et une plaquette SCET 1204.. dans la poche périphérique, diamètre de coupe 41mm, avec queue cylindrique 40mm avec méplat selon ISO 9766 et arrosage interne pour des profondeurs de perçage maximales jusqu'à 4 x D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)804D-41-164-S40
Product Number6760972
Product Family804D
Insert Geometry
Depth of Cut Max — in (APMX)6.4567"
Depth of Cut Max — mm (APMX)164.0 mm

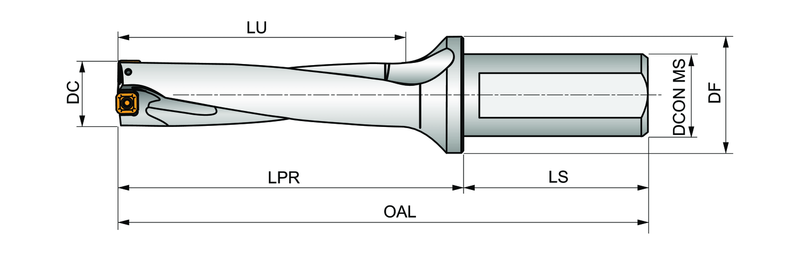

Dimensions
Cutting Diameter — in (DC)1.614"
Cutting Diameter — mm (DC)41.0 mm
Overall Length — in (OAL)10.197"
Overall Length — mm (OAL)259.0 mm
Length × Diameter Ratio4
Usable Length — in (LU)6.7717"
Usable Length — mm (LU)172.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
ShankQueue cylindrique ISO 9766
Through Coolant Yes
Reference Numbers
EDP Number6760972
EAN3603602963185
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
804D-41-164-S40 — 3D Model STP Download
804D-41-164-S40 — 2D Model DXF Download
804D-41-164-S40 — Line Drawing PDF Download
