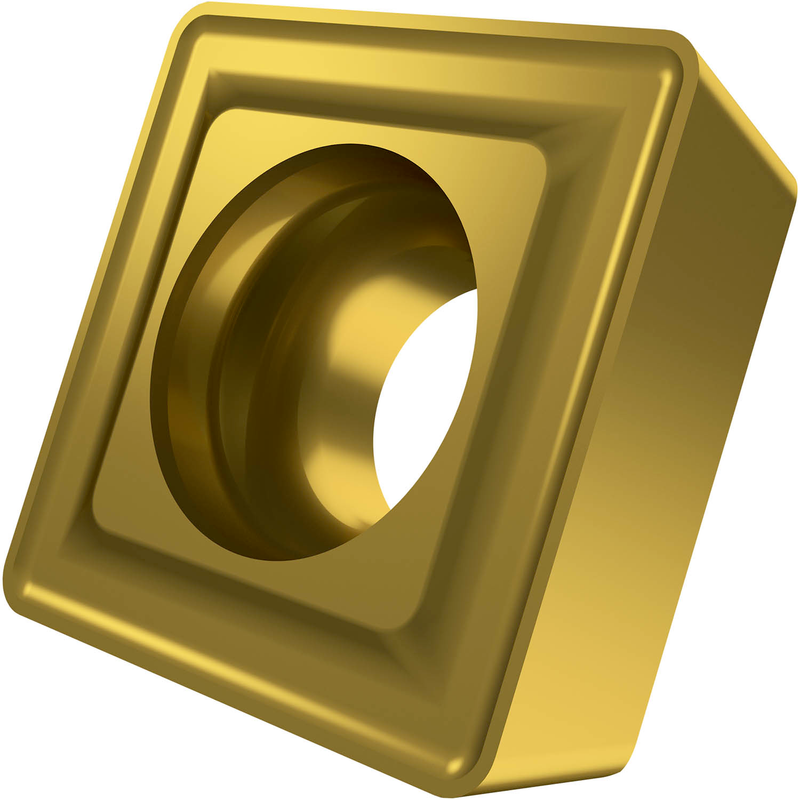

SCET 070308-UD:D8330
SCET 070308-UD:D8330

SCET 070308-UD:D8330

UGC DOR6754636
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.70 CAD - $19.70 CAD
$19.70 CAD
$19.70 CAD - $19.70 CAD
$19.70 CAD

Vendu en lots de : 10

Plaquette de perçage pour s'adapter à la poche périphérique des forets indexables PRAMET 80.D avec une plage de diamètres de 0,886 à 1,063", carbure WC-Co à grain fin avec revêtement PVD D8330 dans les plages de nuances ISO P20-P35 et K15-K35 avec géométrie UD pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCET 070308-UD:D8330
GradeD8330
Chipbreaker (CBMD)DU
Product Number6754636
Product FamilySCET
Insert Geometry
Insert DesignSCET
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.312"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number6754636
EAN3603602900029
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download

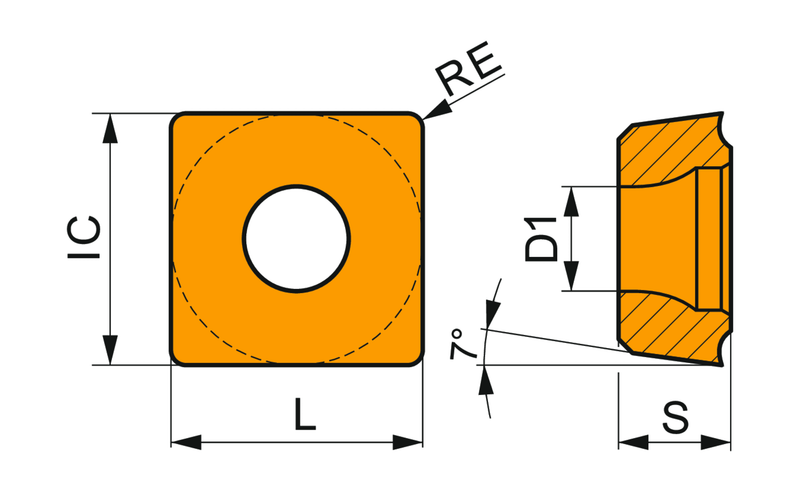

SCET 070308-UD:D8330 — Line Drawing PDF Download
