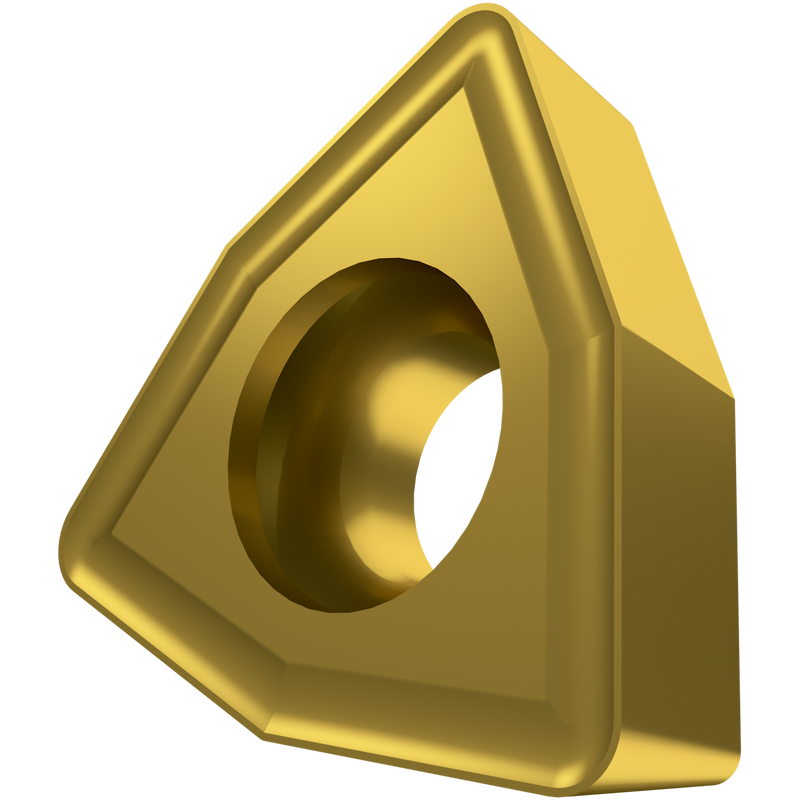

WCMT 2.522-47:D8330
WCMT 2.522-47:D8330

WCMT 2.522-47:D8330

UGC DOR6754638
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.76 CAD - $24.76 CAD
$24.76 CAD
$24.76 CAD - $24.76 CAD
$24.76 CAD

Vendu en lots de : 10

Plaquette de perçage WCMT 0503.., D8330 carbure WC-Co à grains fins revêtu PVD dans les plages de nuances ISO P20-P35 et K15-K35 avec géométrie 47 pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 2.522-47:D8330
Product Name (ISO)WCMT 050308E-47:D8330
GradeD8330
Chipbreaker (CBMD)47
Product Number6754638
Product FamilyWCMT-ID
Insert Geometry
Insert DesignCMTPO
Insert Shape Code (SC)W - trigon
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number6754638
EAN3603602900043
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
WCMT 2.522-47:D8330 — Line Drawing PDF Download
