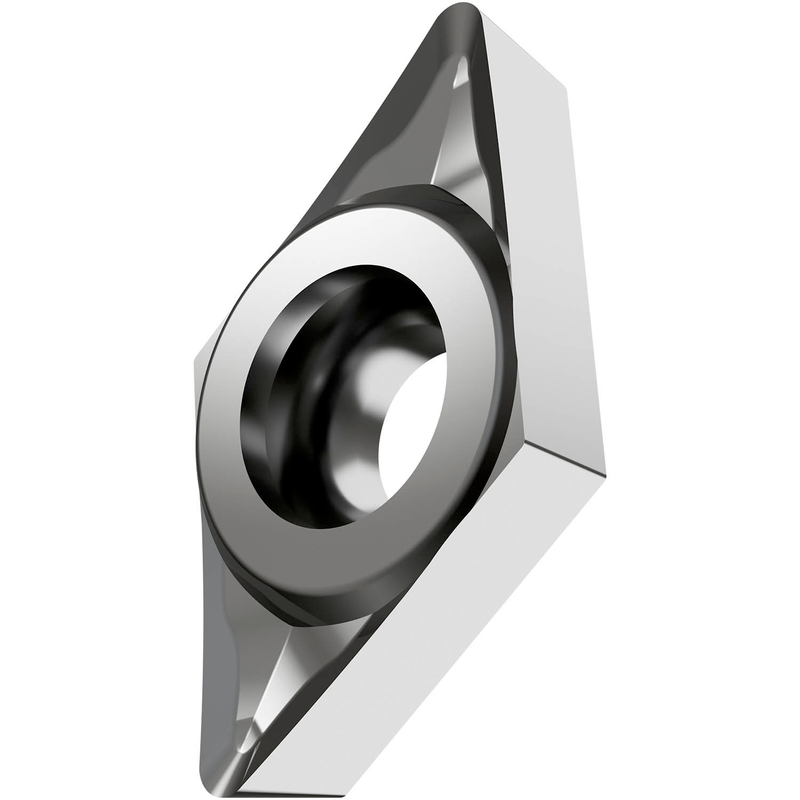

DCGT 32.51F-AL:HF7
DCGT 32.51F-AL:HF7

DCGT 32.51F-AL:HF7

UGC DOR6751736
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.26 CAD - $18.26 CAD
$18.26 CAD
$18.26 CAD - $18.26 CAD
$18.26 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance HF7, un carbure WC-Co à grain fin non revêtu dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.51F-AL:HF7
Product Name (ISO)DCGT 11T304F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751736
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle inclus rhomboïdal de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6751736
EAN3603602871022
File Type Download
DCGT 32.51F-AL:HF7 — Line Drawing PDF Download
