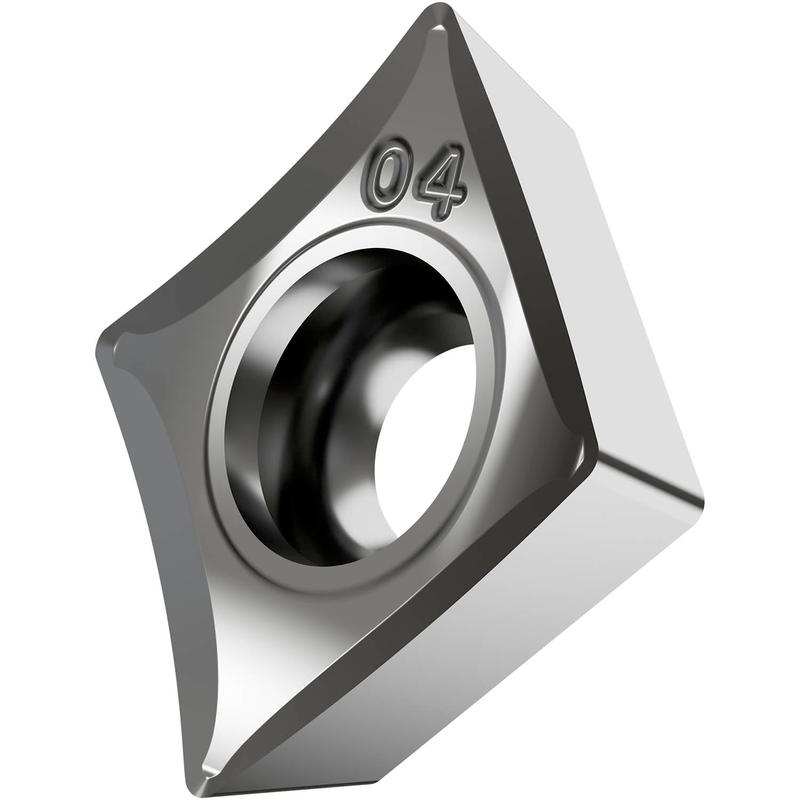

CCGT 2.521F-AL:HF7
CCGT 2.521F-AL:HF7

CCGT 2.521F-AL:HF7

UGC DOR6756212
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

Plaquette positive simple face à 80° rhomboïde avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64", précision de positionnement selon classe de tolérance ISO-G, brise-copeaux AL avec arêtes vives, en qualité HF7, un carbure WC-Co à grains fins non revêtu dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 2.521F-AL:HF7
Product Name (ISO)CCGT 080304F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6756212
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6756212
EAN3603602915788
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
CCGT 2.521F-AL:HF7 — Line Drawing PDF Download
