DCMT 32.52-FF2:T9425
DCMT dimension drawing
DCMT 32.52-FF2:T9425
DCMT dimension drawing

DCMT 32.52-FF2:T9425

UGC DOR8985991
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.33 CAD - $16.33 CAD
$16.33 CAD
$16.33 CAD - $16.33 CAD
$16.33 CAD

Vendu en lots de : 10

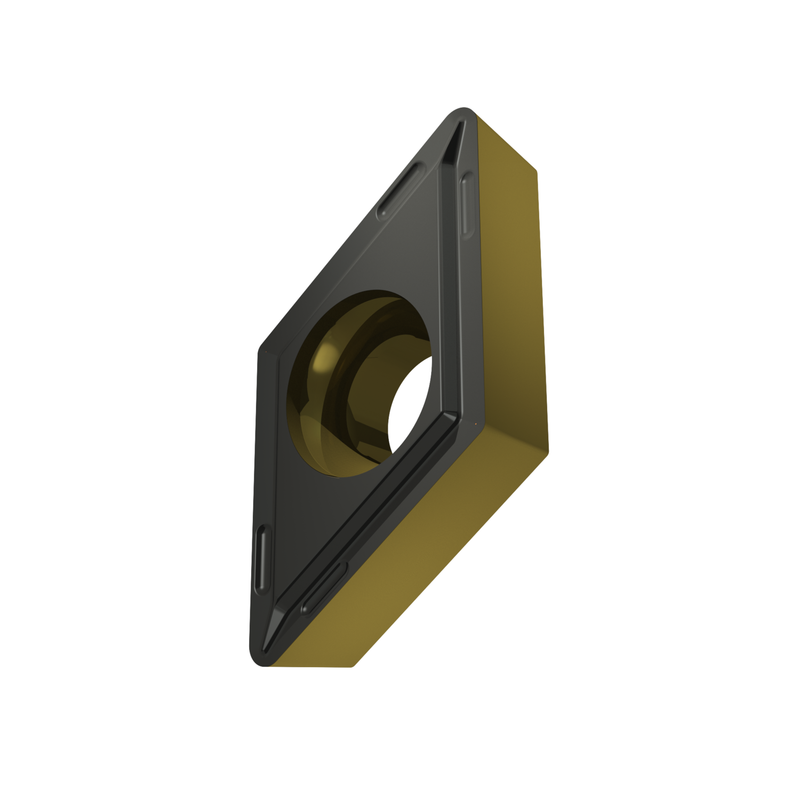

Plaquette de tournage positive simple face, D - rhombe 55° d'angle d'inclusion, taille 11 avec rayon de coin 0,8 mm. La combinaison du brise-copeaux FF2 est tranchante et constitue le premier choix pour la finition fine des aciers. Elle présente un angle de coupe légèrement positif sans T-land. Elle convient également aux fontes. Substrat T9425 MT-CVD à gradient fonctionnel, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : P - Acier et acier moulé, K - Fonte et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.52-FF2:T9425
Product Name (ISO)DCMT 11T308E-FF2:T9425
GradeT9425
Chipbreaker (CBMD)FF2
Product Number8985991
Product FamilyTDMC
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle de 55° inclus rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8985991
EAN3603604777964
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
