CNMG 543-NRM:T8430
CNMG 543-NRM:T8430
CNMG 543-NRM:T8430
CNMG 543-NRM:T8430

CNMG 543-NRM:T8430

UGC DOR8762789
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

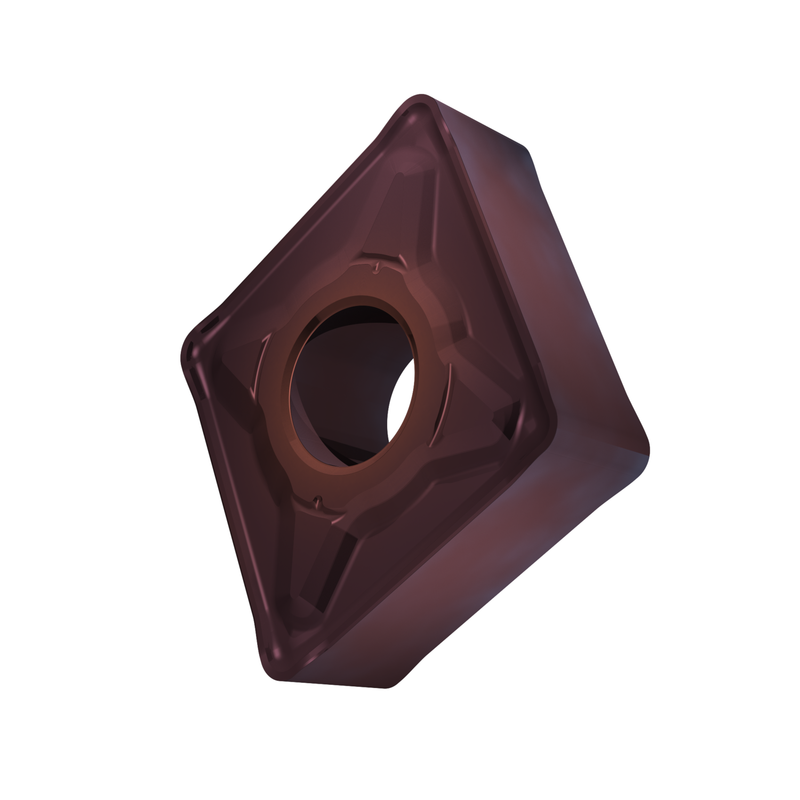

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 15,575mm, épaisseur de 6,35mm, rayon de bec de 1,2mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NMR, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 543-NRM:T8430
Product Name (ISO)CNMG 160612-NRM:T8430
GradeT8430
Chipbreaker (CBMD)GRN
Product Number8762789
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle entre faces 80°
Insert Geometry
Tool Information
Reference Numbers
EDP Number8762789
EAN3603604523462
File Type Download
CNMG 543-NRM:T8430 — Line Drawing PDF Download
