08K2R025A10-SRC08-A
08K2R025A10-SRC08-A
08K2R025A10-SRC08-A

08K2R025A10-SRC08-A

UGC DOR6756690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$227.00 CAD - $227.00 CAD
$227.00 CAD
$227.00 CAD - $227.00 CAD
$227.00 CAD

Vendu en lots de : 1

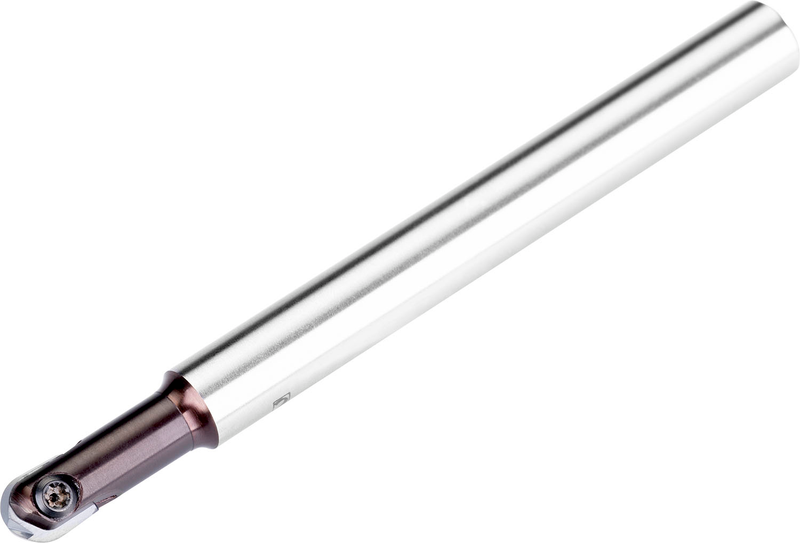

Fraise à copier utilisant une plaquette simple face RC 08, RC 08-F, LC 08-KP ou LC 08-KPF, diamètre de coupe 8mm avec queue cylindrique 10mm selon DIN 1835A, longueur fonctionnelle 25mm et longueur totale 110mm pour le copiage avec une profondeur de coupe maximale de 0,6-3,2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)08K2R025A10-SRC08-A
Product Number6756690
Product FamilyK2-SRC

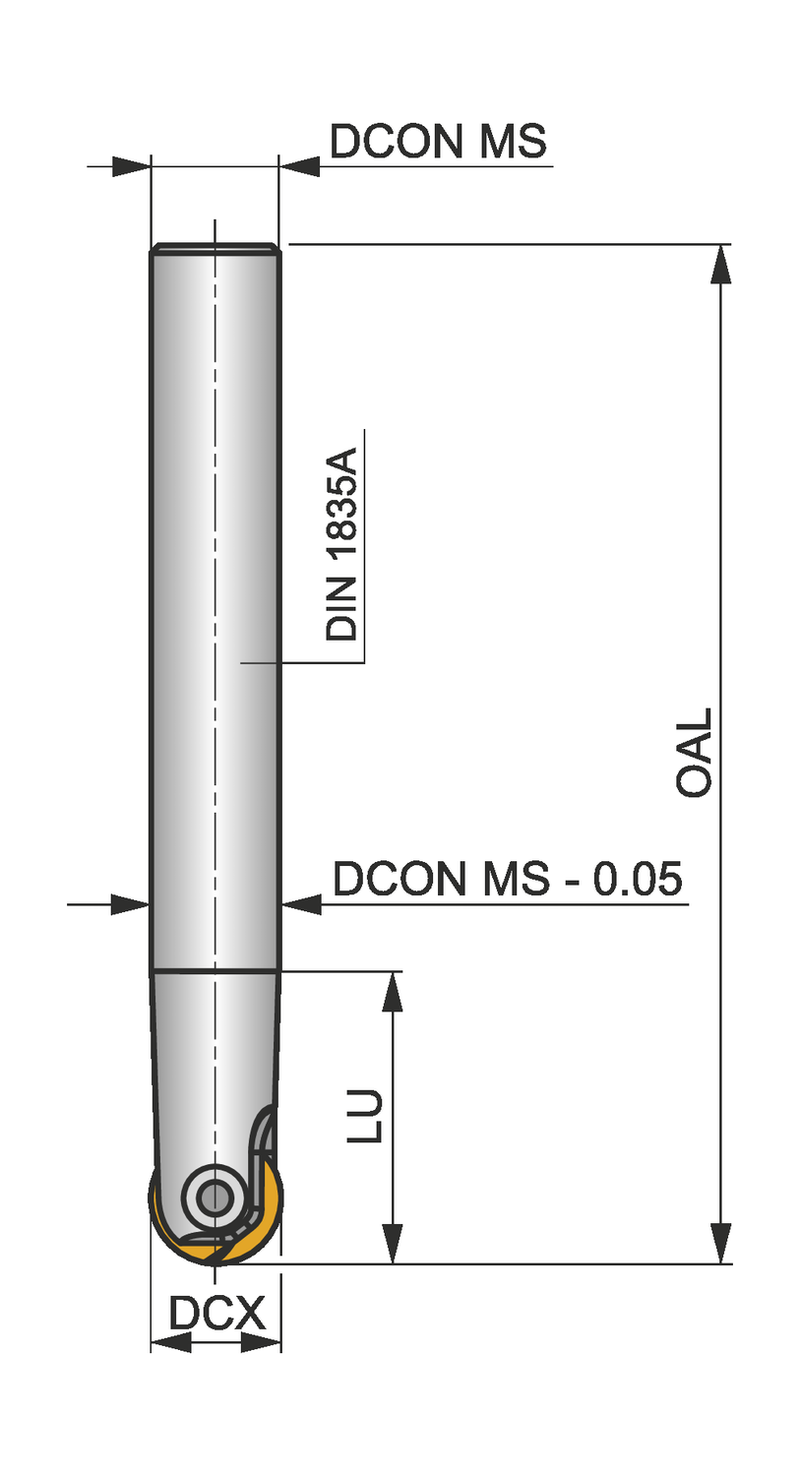

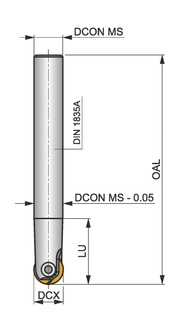

Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756690
EAN3603602920560
File Type Download
08K2R025A10-SRC08-A — 3D Model STP Download
08K2R025A10-SRC08-A — Line Drawing PDF Download
