25K2R045A25-SRC25-A
25K2R045A25-SRC25-A
25K2R045A25-SRC25-A

25K2R045A25-SRC25-A

UGC DOR6756695
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$354.00 CAD - $354.00 CAD
$354.00 CAD
$354.00 CAD - $354.00 CAD
$354.00 CAD

Vendu en lots de : 1

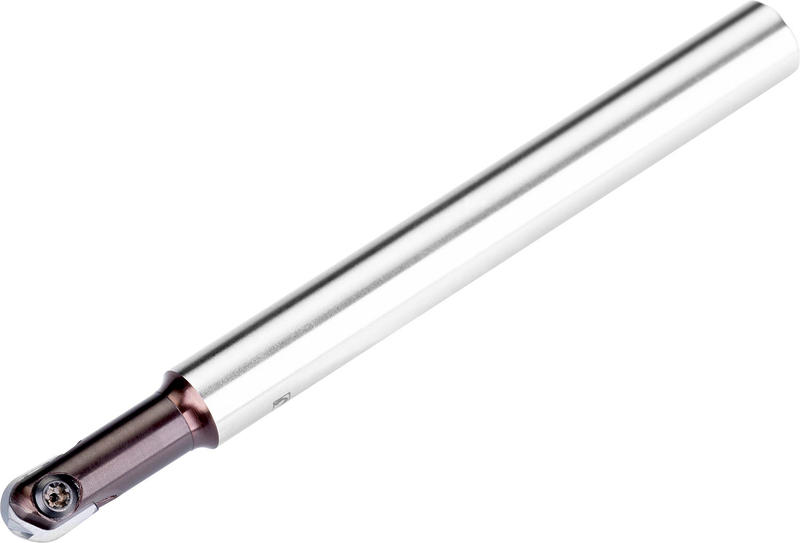

Fraise à copier qui utilise 1 insert simple face RC 25 ou RC 25-F, diamètre de coupe de 25mm avec queue cylindrique de 25mm selon DIN 1835A, longueur fonctionnelle de 45mm et longueur totale de 160mm pour le fraisage par copiage avec une profondeur de coupe maximale de 0,6-3,2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25K2R045A25-SRC25-A
Product Number6756695
Product FamilyK2-SRC

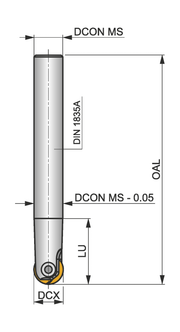

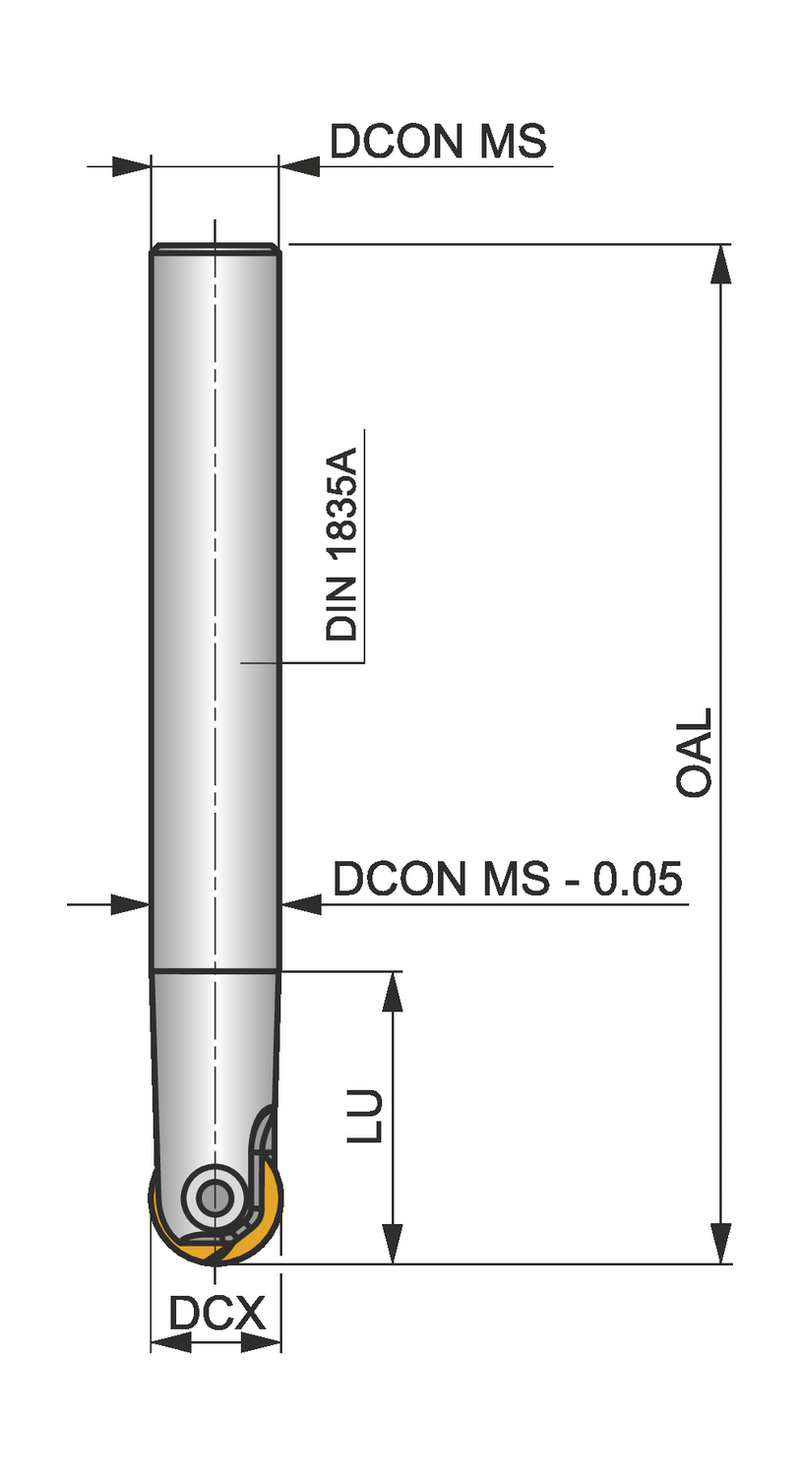

Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756695
EAN3603602920614
File Type Download
25K2R045A25-SRC25-A — 3D Model STP Download
25K2R045A25-SRC25-A — Line Drawing PDF Download
