08K2R050A12-SRC08-A
08K2R050A12-SRC08-A
08K2R050A12-SRC08-A

08K2R050A12-SRC08-A

UGC DOR6756718
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$241.00 CAD - $241.00 CAD
$241.00 CAD
$241.00 CAD - $241.00 CAD
$241.00 CAD

Vendu en lots de : 1

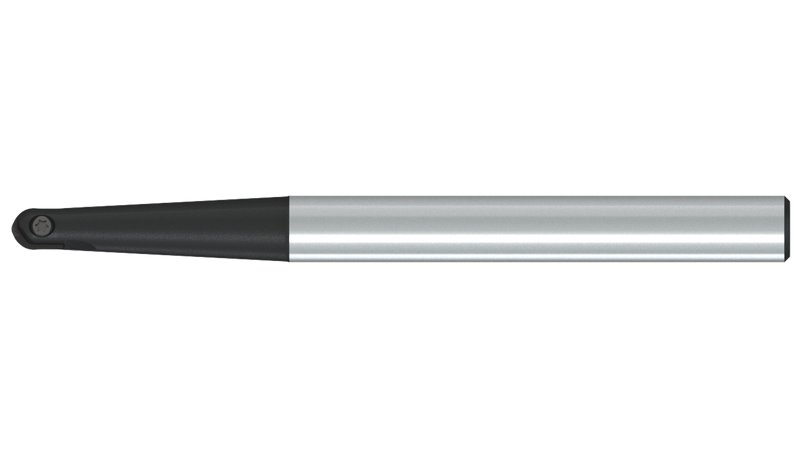

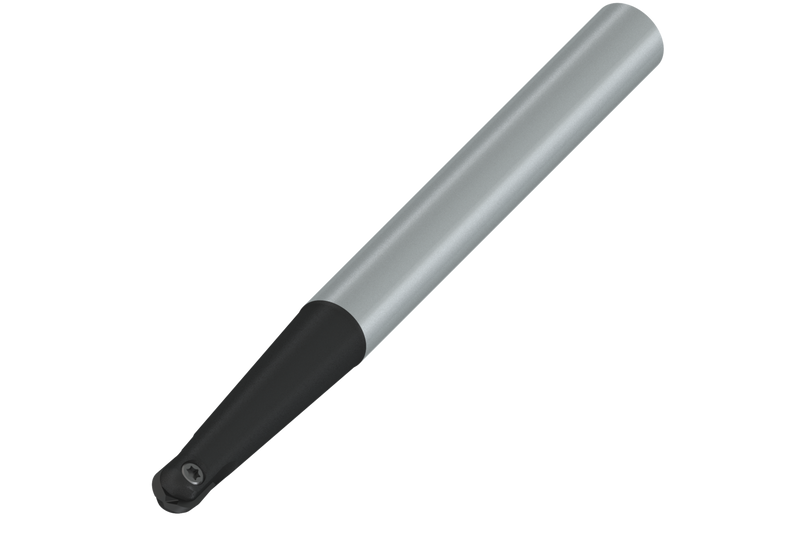

Fraise à copier qui utilise 1 insert simple face RC 08, RC 08-F, LC 08-KP ou LC 08-KPF, diamètre de coupe 8 mm avec queue cylindrique 12 mm selon DIN 1835A, longueur fonctionnelle 13,5 mm et longueur totale 140 mm pour fraisage à copier avec une profondeur de coupe maximale de 0,6-3,2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)08K2R050A12-SRC08-A
Product Number6756718
Product FamilyK2-SRC

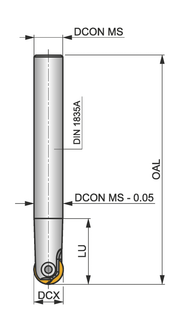

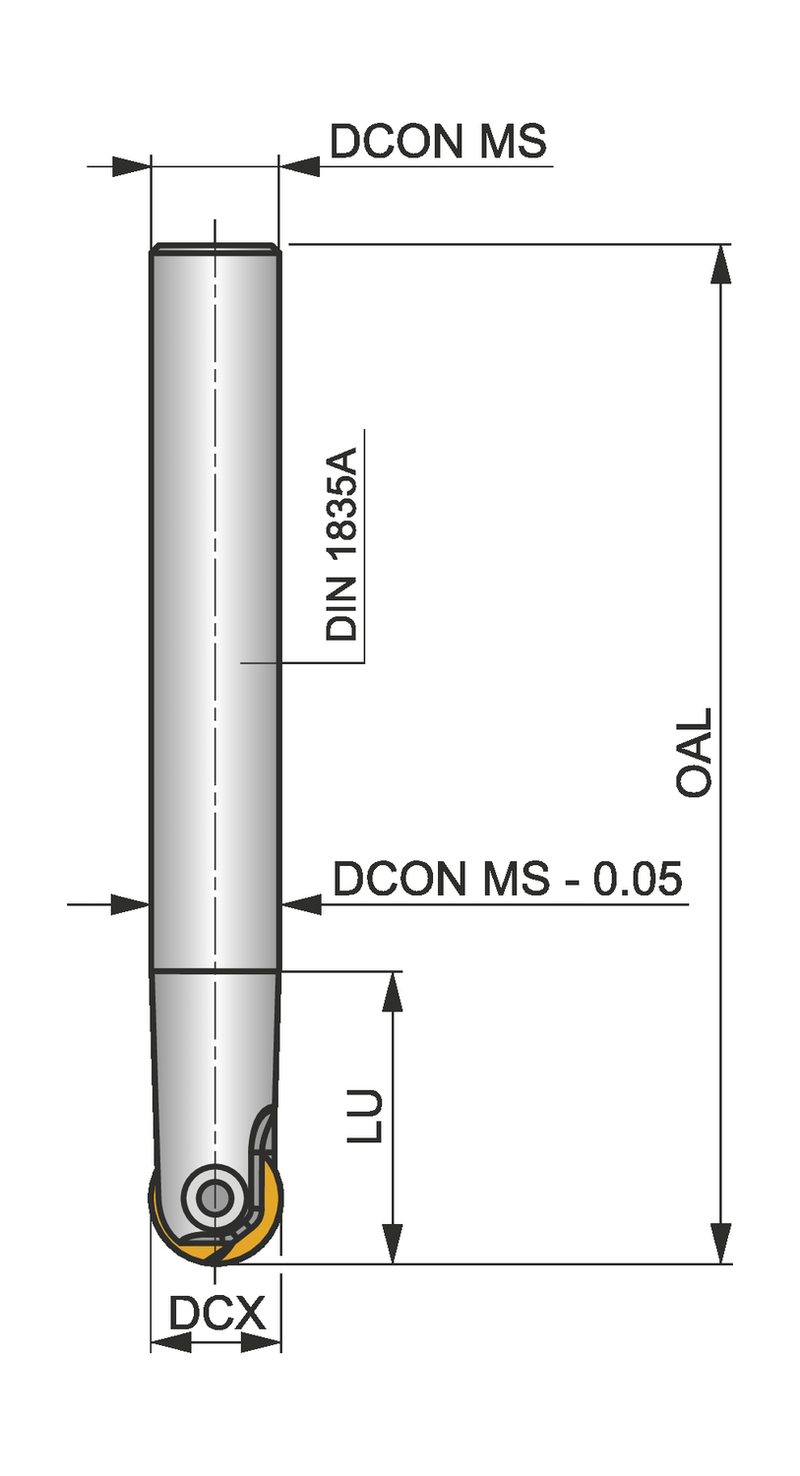

Dimensions
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)13.5 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6756718
EAN3603602920843
File Type Download
08K2R050A12-SRC08-A — 3D Model STP Download
08K2R050A12-SRC08-A — Line Drawing PDF Download
