12K2R060A16-SRC12-A
12K2R060A16-SRC12-A
12K2R060A16-SRC12-A

12K2R060A16-SRC12-A

UGC DOR6756720
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$262.00 CAD - $262.00 CAD
$262.00 CAD
$262.00 CAD - $262.00 CAD
$262.00 CAD

Vendu en lots de : 1

Fraise à copier qui utilise 1 insert simple face RC 12, RC 12-F, LC 12..-CH ou LC 12..-RE, diamètre de coupe 12mm avec queue cylindrique de 16mm selon DIN 1835A, longueur fonctionnelle de 24.5mm et longueur totale de 160mm pour le fraisage à copier avec une profondeur de coupe maximale de 0.6-3.2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12K2R060A16-SRC12-A
Product Number6756720
Product FamilyK2-SRC

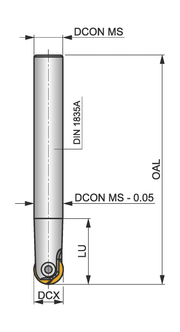

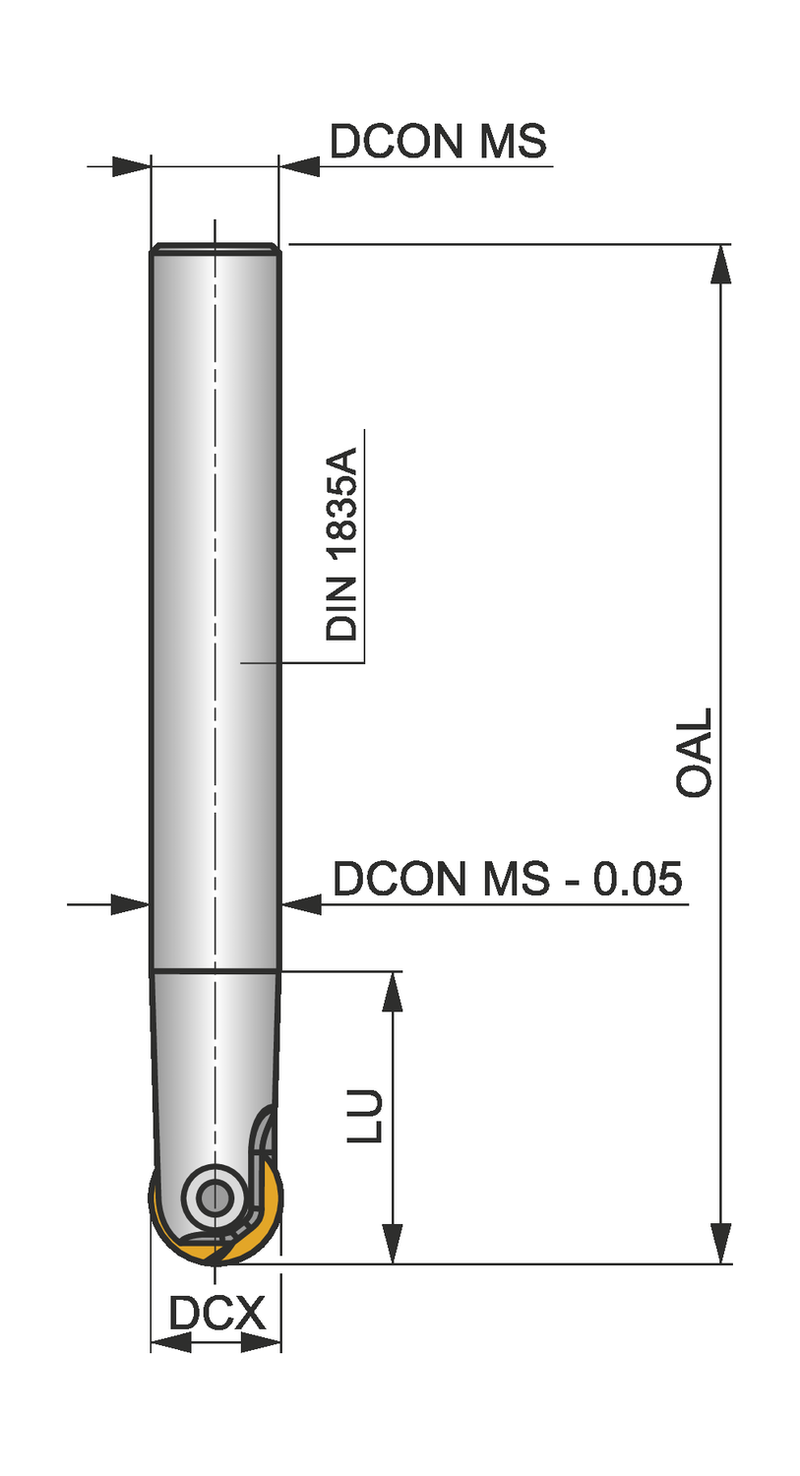

Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Usable Length — mm (LU)24.5 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-SRC
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6756720
EAN3603602920867
File Type Download
12K2R060A16-SRC12-A — 3D Model STP Download
12K2R060A16-SRC12-A — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
